Lifting columns THG
The slim and compact columns of the THG series can lift medium loads up to 2,000 N and are designed for off-center loads. Thanks to its DC motor with optional position feedback, this solution saves a lot of space and is available as a complete system with control unit, operational switching and resources for medical equipment or other applications.

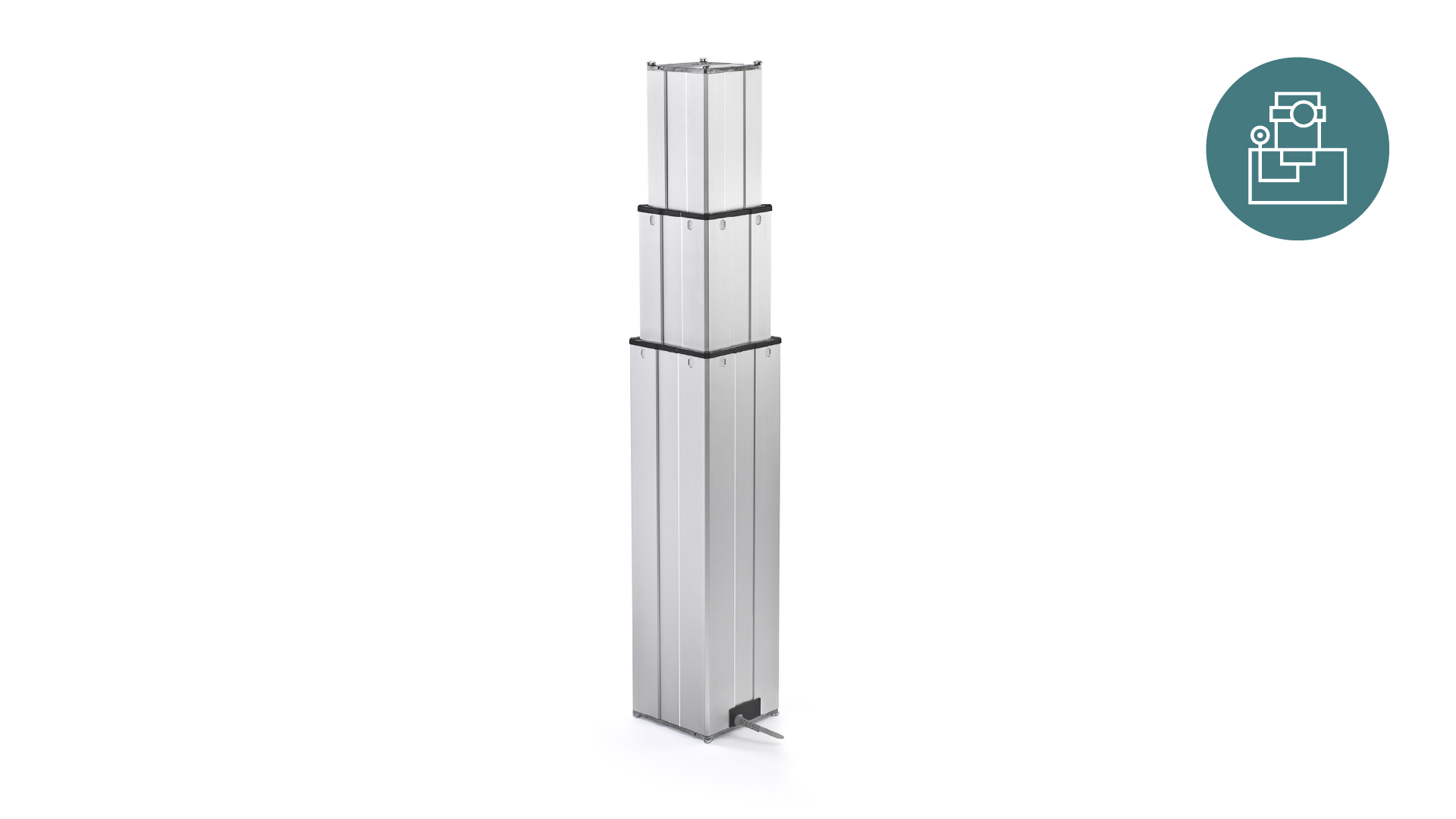

Variant Image

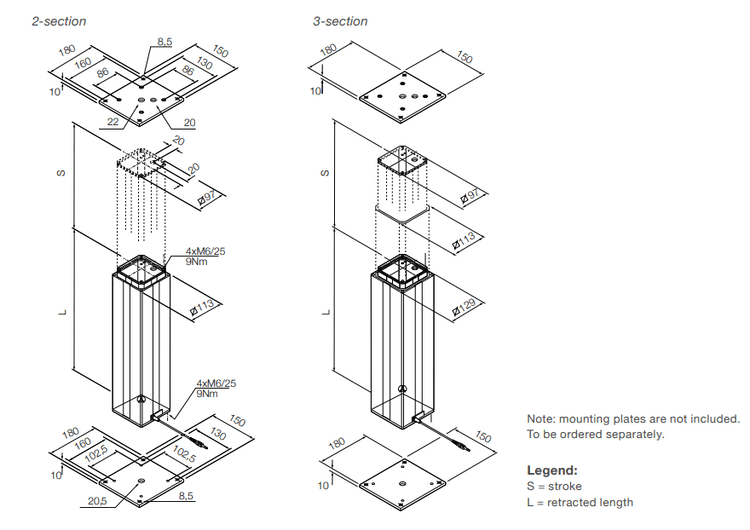

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Push load | 2000 N | |
| Stroke (mm) | 100 mm | 700 mm |
| Linear speed no load (mm/s) | 15 mm/s | |
| Duty cycle (%) | 10% | |
| Dynamic offset load | 1000 Nm |
Variant Applications
| Machines / Applications |
|---|
| Imaging Equipment |
| Infant incubator |
| radiant warmer |
| Industries |
|---|
| Medical Industry |
Lifting columns THG
The slim and compact columns of the THG series can lift medium loads up to 2,000 N and are designed for off-center loads. Thanks to its DC motor with optional position feedback, this solution saves a lot of space and is available as a complete system with control unit, operational switching and resources for medical equipment or other applications.
Variant Image

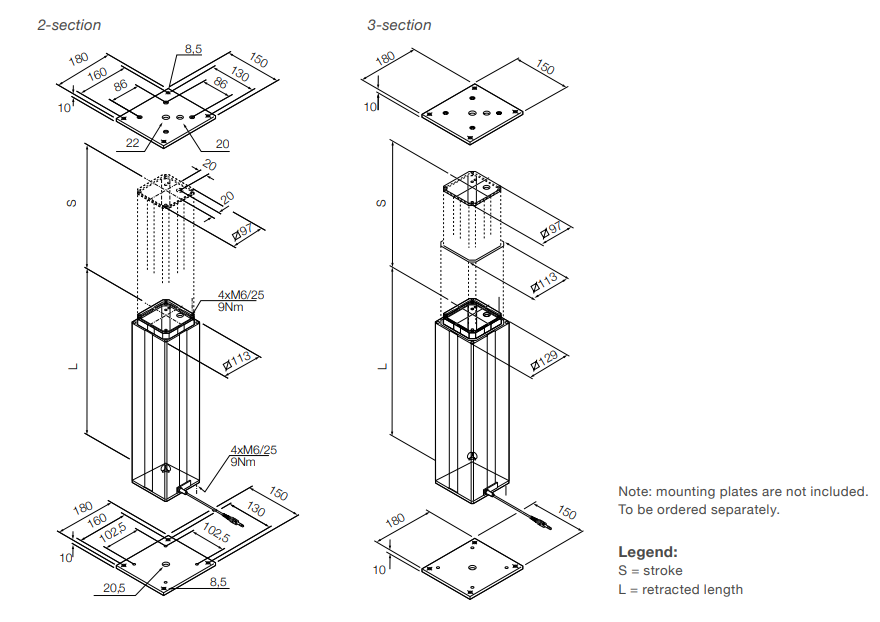

Variant Diagram
