Lifting columns TLG
The TLG series offers compact, fast and powerful lifting columns with DC motor for pressure load of up to 4,000 N. They are suitable for medical, industrial and workplace applications and can lift off-center loads without bending due to their rigid aluminum profiles and precision sliding pads. Unique and efficient gear technology allows for high compression load and smooth operation.

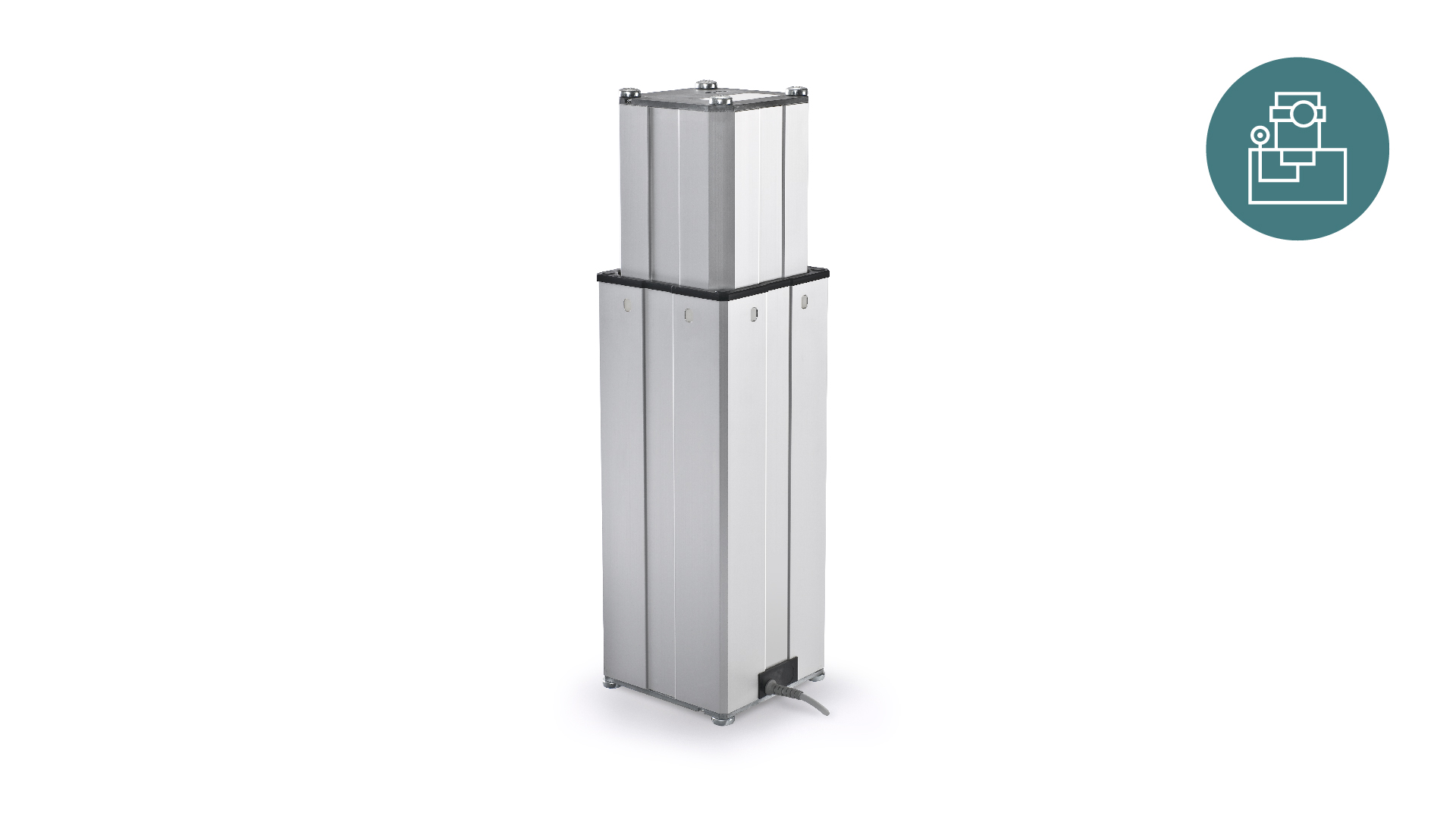

Variant Image

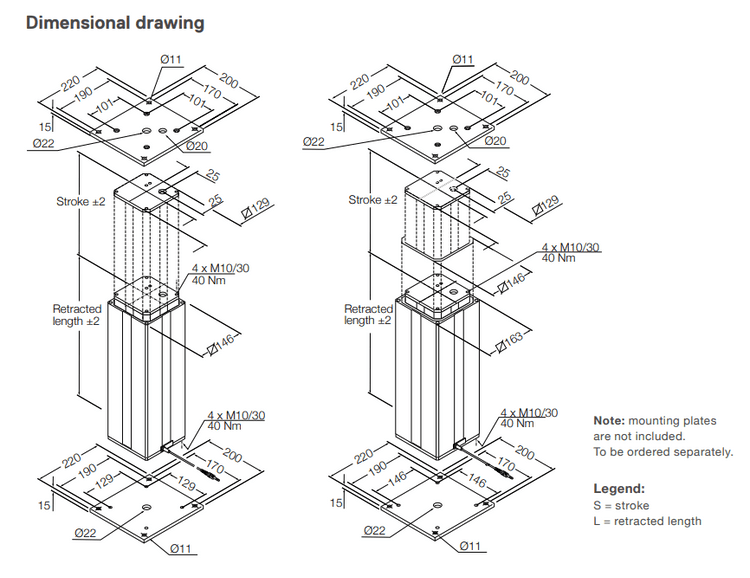

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Push load | 4000 N | |
| Stroke (mm) | 100 mm | 700 mm |
| Linear speed no load (mm/s) | 10 mm/s | |
| Duty cycle (%) | 10% | |
| Dynamic offset load | 2800 Nm |
Variant Applications
| Machines / Applications |
|---|
| Treatment Chairs |
| Cardio Equipment |
| Industries |
|---|
| Medical Industry |
Lifting columns TLG
The TLG series offers compact, fast and powerful lifting columns with DC motor for pressure load of up to 4,000 N. They are suitable for medical, industrial and workplace applications and can lift off-center loads without bending due to their rigid aluminum profiles and precision sliding pads. Unique and efficient gear technology allows for high compression load and smooth operation.
Variant Image

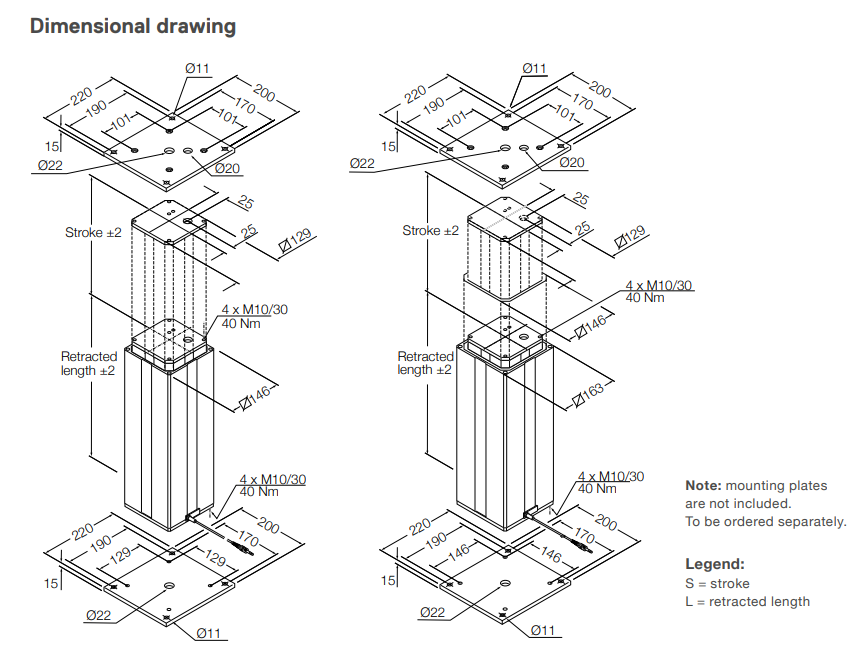

Variant Diagram
