CAHB series linear Actuators
Ewellix Electromechanical CAHB Linear actuators are engineered in severe environments at temperatures from -40 to 85 degree Celsius with a maximum duty cycle of 25% & consist of robust metal gears with corrosion-resistant housing. CAHB series with & families of linear actuator, virtually maintenance-free, self-locking up to 2 times the rated load up to IP69K/66M, covers low, medium & high loads for mobile application, Additional design options are available like limit switches, positioning feedback & manual override.

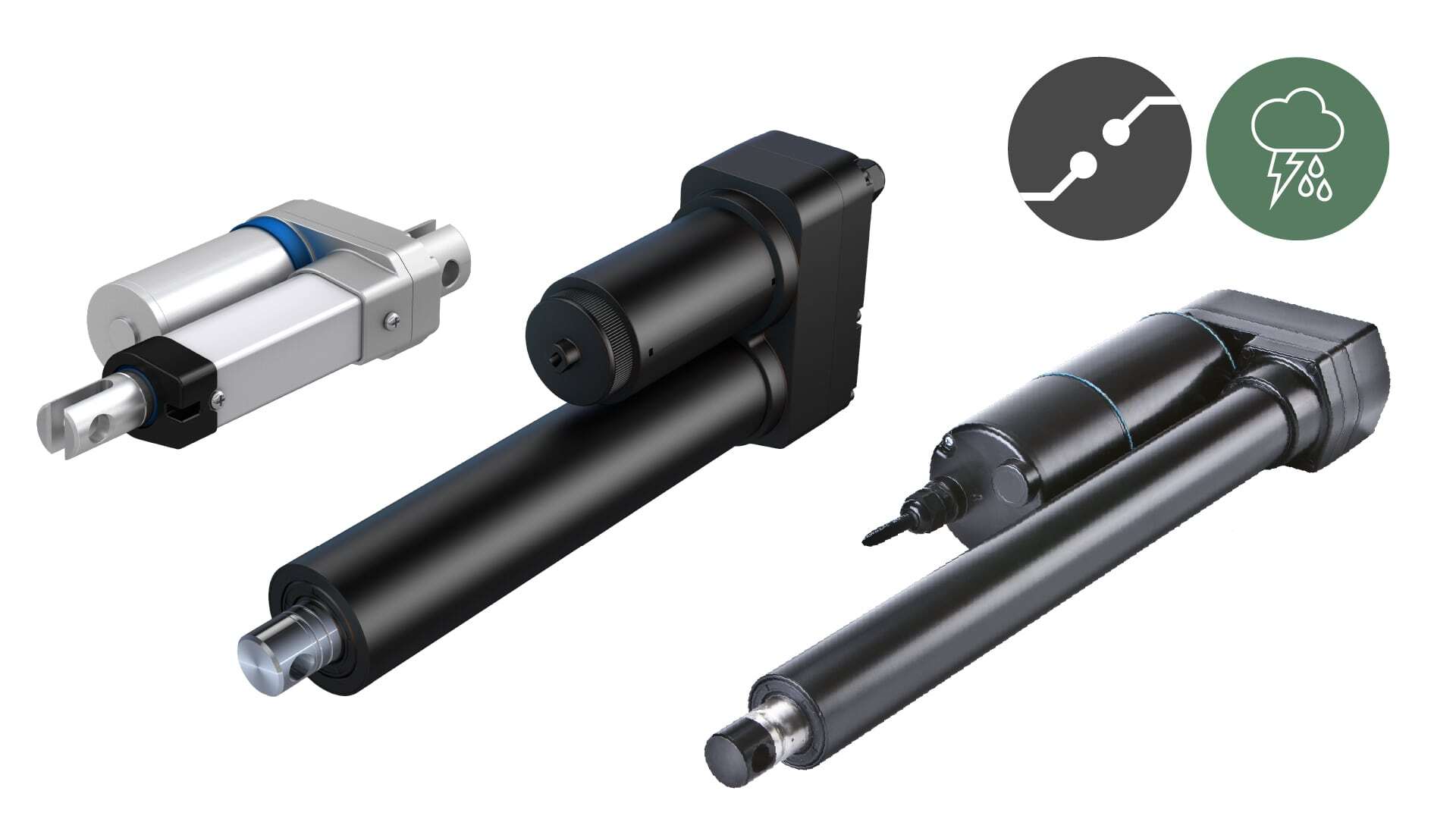

Variant Image

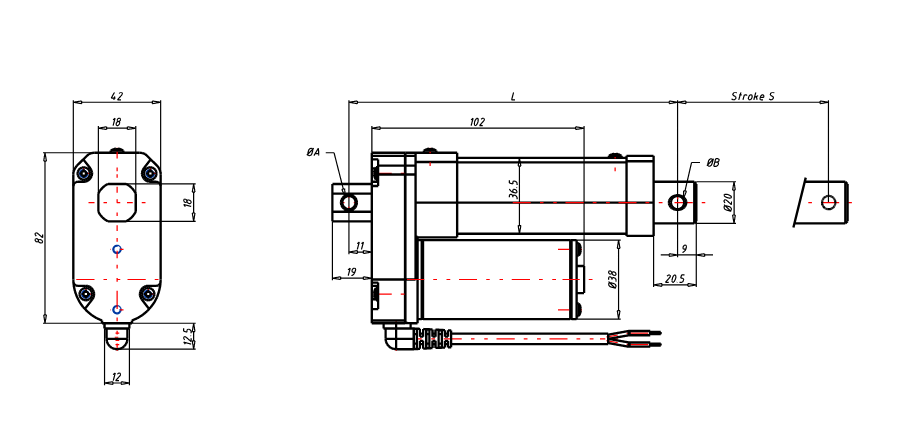

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Push load (N) | 10000 | |
| Pull load (N) | 10000 | |
| Max stroke (mm) | 50 | 700 |
| speed Full load (mm/s) | 25.5 | 50 |
| Duty cycle (%) | 20 | 25 |
Variant Applications
| Machines / Applications |
|---|
| Mobile C arm % X arm |
| AGV (Automated Guided Vehicles) |
| Harvester Combined |
| Fertilizer spreader |
| Seeding Equipment |
| Tractor |
| Industries |
|---|
| Food packaging |
| Automated guided |
| Combine harvesters |
| Utility vehicles |
| Vertical lifting platforms |
| Windows |
| shade panels |
CAHB series linear Actuators
Ewellix Electromechanical CAHB Linear actuators are engineered in severe environments at temperatures from -40 to 85 degree Celsius with a maximum duty cycle of 25% & consist of robust metal gears with corrosion-resistant housing. CAHB series with & families of linear actuator, virtually maintenance-free, self-locking up to 2 times the rated load up to IP69K/66M, covers low, medium & high loads for mobile application, Additional design options are available like limit switches, positioning feedback & manual override.
Variant Image

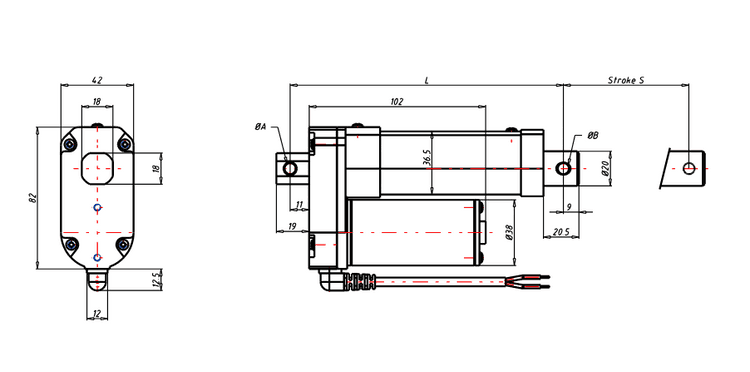

Variant Diagram
