CAMT Linear Actuators
CAMT actuator with unique design assists with the most demanding parts of surgical tables or chairs. CAMT actuator keeps the movement smooth through the whole process of operation or imaging, also when the direction changes. This gives a much improved patient experience. These actuators are maintenance free & no oil leakage.

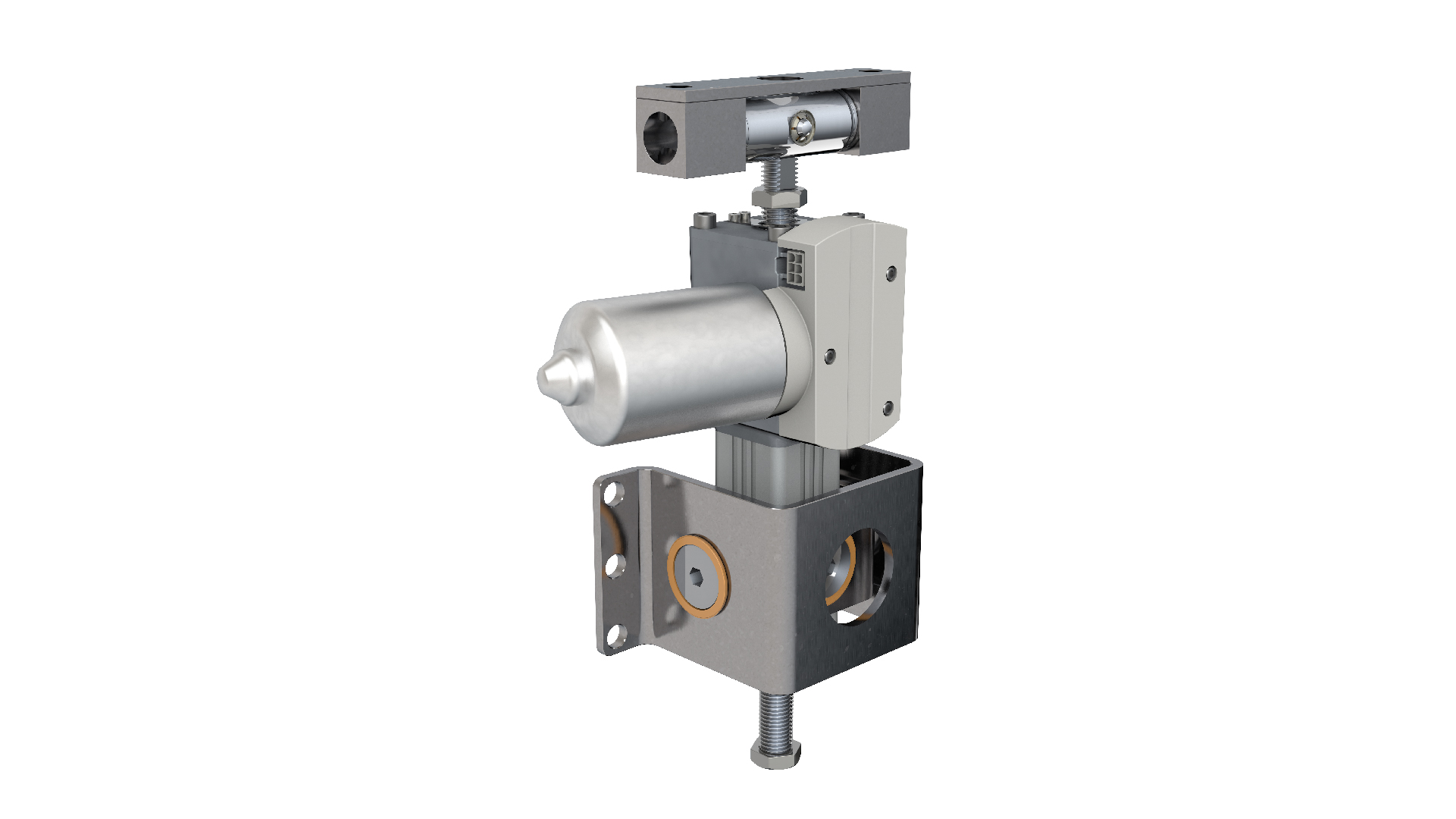

Variant Image

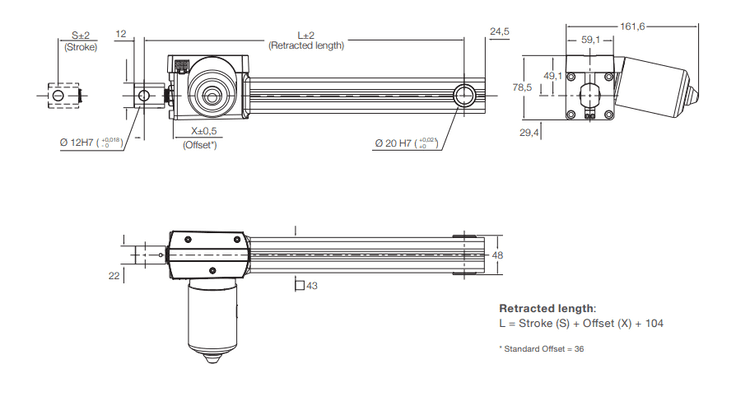

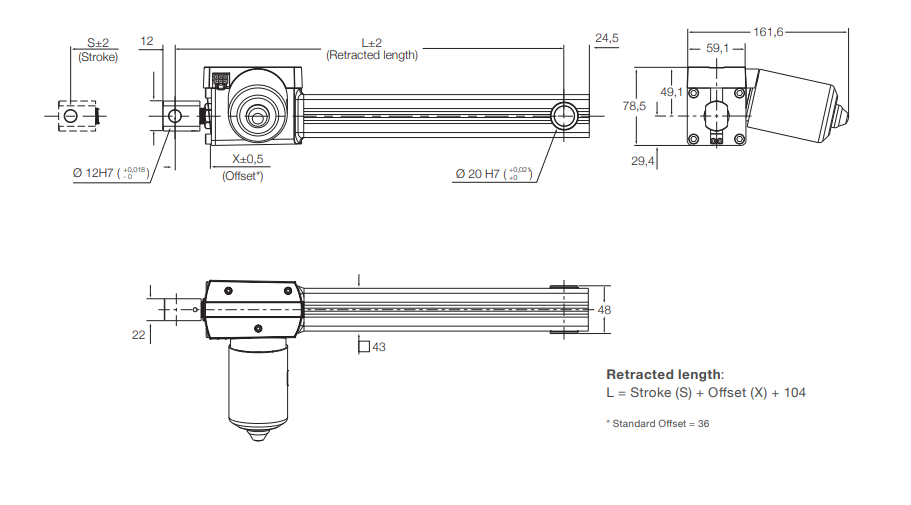

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Push load | 6000 N | |
| Pull load | 6000 N | |
| Max stroke (mm) | 50 mm | 250 mm |
| speed no load (mm/s) | 6.5 mm/s | |
| Duty cycle (%) | 10% |
Variant Applications
| Machines / Applications |
|---|
| Surgical Table |
| Procedure Chair |
| Industries |
|---|
| Medical Industry |
