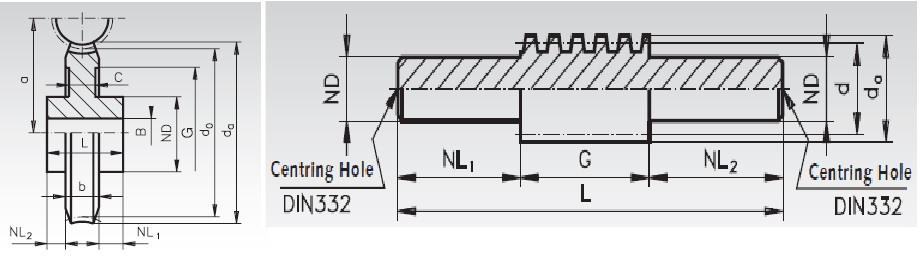

Worms and Worm Gears

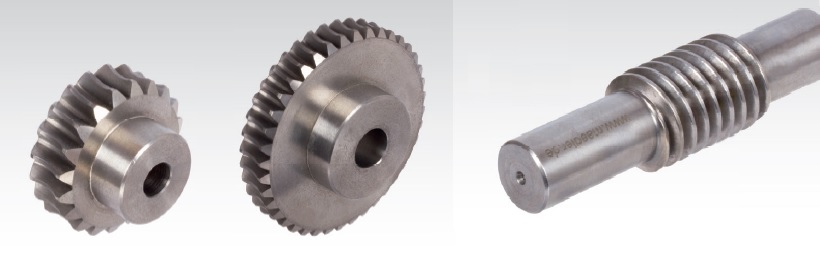

Maedler consists of Worm shafts and Worm wheels with right-hand configuration as a standard. These are available in single and double thread versions. The standard pressure angle is 20º.

Worms and Worm Gears
Worms and Worm Gears
Worms and Worm Gears
ParametersMinMax
Transmission Ratio 2.25:1 150:1
Module 0.3 6.3
No. of Teeth 16 100
Machines
Automatic Door System
Automotive Steering Systems
Screw Conveyors
Industries
Packaging Equipment Manufacturer
Automotive
