Meldin® 4000
Meldin® 4000 is Saint Gobain Seals' product line of PAI (polyamide-imide) based compounds. The different numbers within the series refer to the unique composition and different properties of the various compounds. Meldin® 4000 grades are manufactured by Injection Molding with a very limited number of shapes available for prototyping activity. All 4000 series compounds have common properties that make them suitable replacements for metal components: they are stiff and retain high mechanical strength at elevated temperatures; they are very durable even in harsh applications in regards to wearing; and they are chemically compatible with all automotive fluids (fuels and oils).

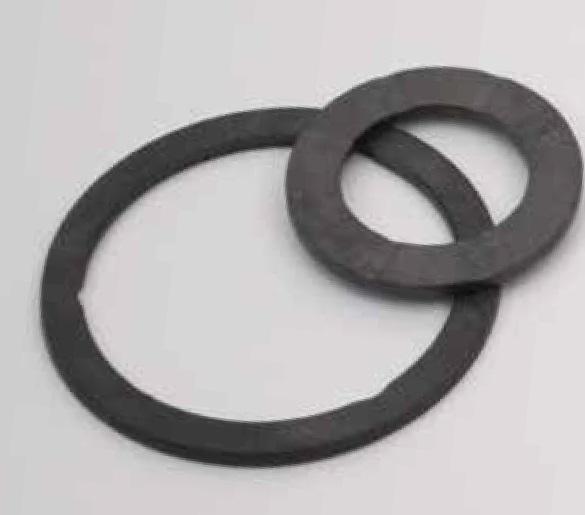

Variant Image

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Tensile Strength (Break RT) | 108 MPa | 221 MPa |
| Compressive Strength (RT) | 129 MPa | 250 MPa |
| Flexural Strength (RT) | 147 MPa | 350 MPa |
| Melting Point | 371 °C |
Variant Applications
| Machines / Applications |
|---|
| Dual Clutch Transmission |
| Transmission & Gearbox |
| Industries |
|---|
| Automotive Industry |
| Oil and Gas Industry |
| Medical Industry |
| Food Industry |
| Aerospace |
