Meldin® 7000
Meldin® 7000 series materials exhibit extremely high dimensional stability at elevated temperatures. Testing has shown Meldin® 7000 to have less than 0.04% variation from its original dimensions after cycling from 73°F (22.77°C) to 500°F (260°C) over a 2-day period. The material is able to withstand thermal shocks very well, adding to the dimensional stability of the material.

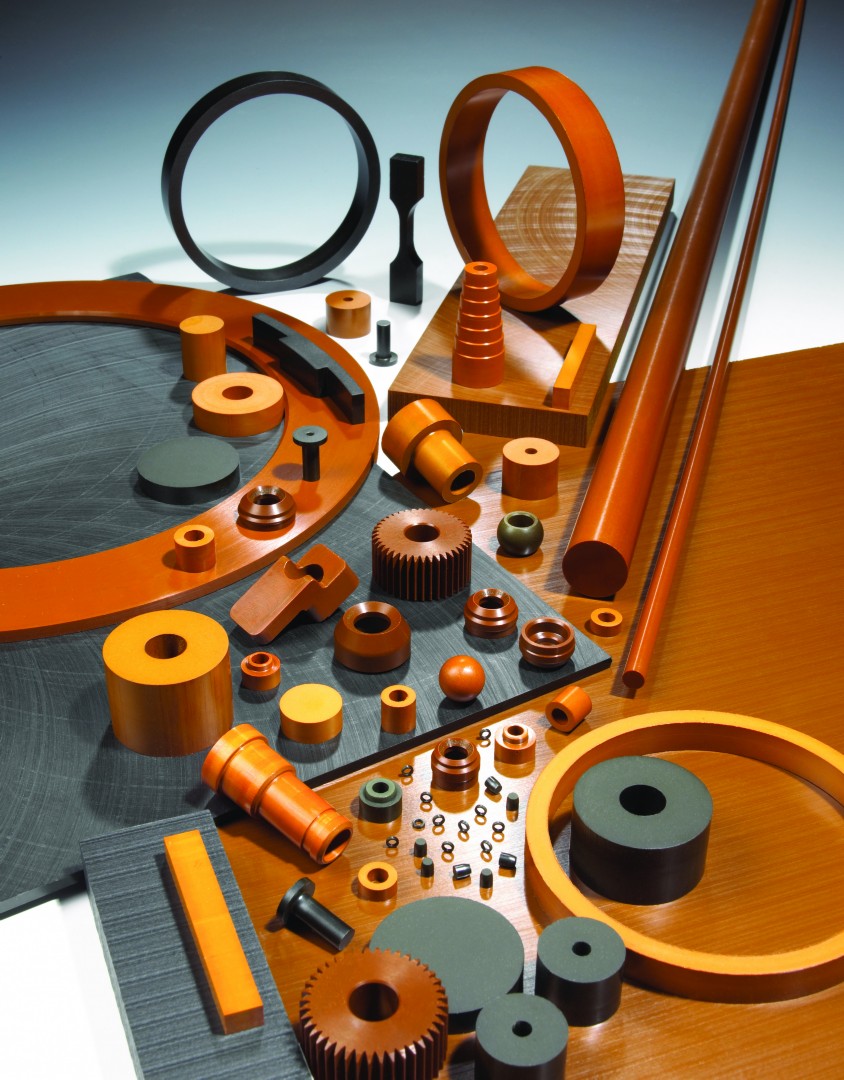

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Tensile Strength (23˚C) | 49.6 MPa | 86.2 MPa |
| Compressive Stress @ 1% Strain (23˚C) | 15.9 MPa | 32.4 MPa |
| Flexural Strength (23˚C) | 72.4 MPa | 109 MPa |
Variant Applications
| Machines / Applications |
|---|
| Plasma-Cutting Torches in the Torch Handle |
| Aircraft Airframe Systems such as Landing Gear and Fuselage Components |
| Piston Rings and Thrust Washers in Transmissions and Pumps for Automotive |
| Runner Nozzles used for Injection Molding Thermoplastics such as PET Bottle Preforms |
| Industries |
|---|
| Aerospace Industry |
| Semiconductor Industry |
| Automotive Industry |
| Agriculture Industry |
