103 Spring-Energized Seals
103 Spring-Energized Seals are composed of Polymer jacket with a Round ribbon spring. These seals are used in low speed or static applications and provide excellent leakage control.

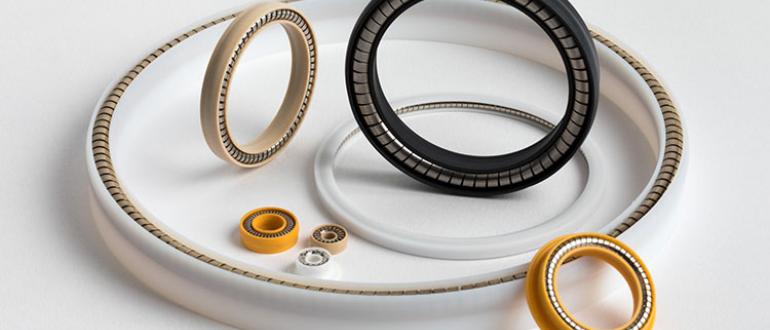

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Temperature | -250 °C | 250 °C |
| Pressure | Ultra High Vacuum | 100 MPa |
| Face Diameter | 10 mm | 3000 mm |
| Radial Diameter | 6 mm | 3000 mm |
| Cross Section | 1.4 mm | 12.7 mm |
Variant Applications
| Machines / Applications |
|---|
| Swivel for Marine LNG Loading Arms |
| Subsea Valves |
| Anti-icing Seal in Flight Actuator |
| Rocket Engine Check Valve |
| Autoclave Pump |
| Micro-E Packaging Pump |
| Industries |
|---|
| Oil, Gas Exploration & Refinery |
| Aerospace |
| Medical Industry |
| Electronic Part Manufacturer |
