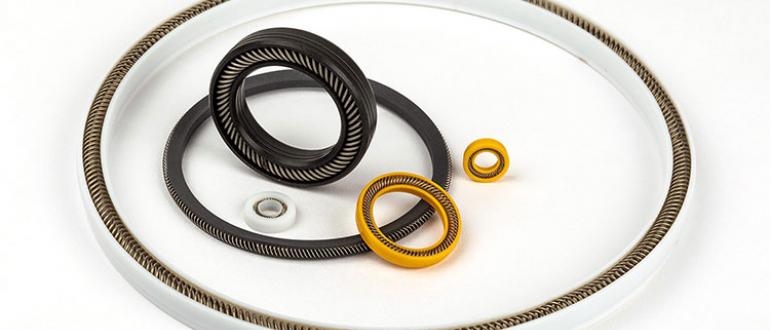

APS Spring-Energized Seals
APS Spring-Energized Seals are composed of Polymer jacket with a Pitch spring. These seals have concise cross section and diameter. These are used for minimizing friction in dynamic applications.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Temperature | -50 °C | 150 °C |
| Pressure | Ultra High Vacuum | 100 MPa |
| Face Diameter | 8 mm | 3000 mm |
| Radial Diameter | 5 mm | 3000 mm |
| Cross Section | 0.8 mm | 6.1 mm |
Variant Applications
| Machines / Applications |
|---|
| Swivel for Marine LNG Loading Arms |
| Subsea Valves |
| Anti-icing Seal in Flight Actuator |
| Rocket Engine Check Valve |
| Autoclave Pump |
| Micro-E Packaging Pump |
| Industries |
|---|
| Oil, Gas Exploration & Refinery |
| Aerospace |
| Medical Industry |
| Electronic Part Manufacturer |
