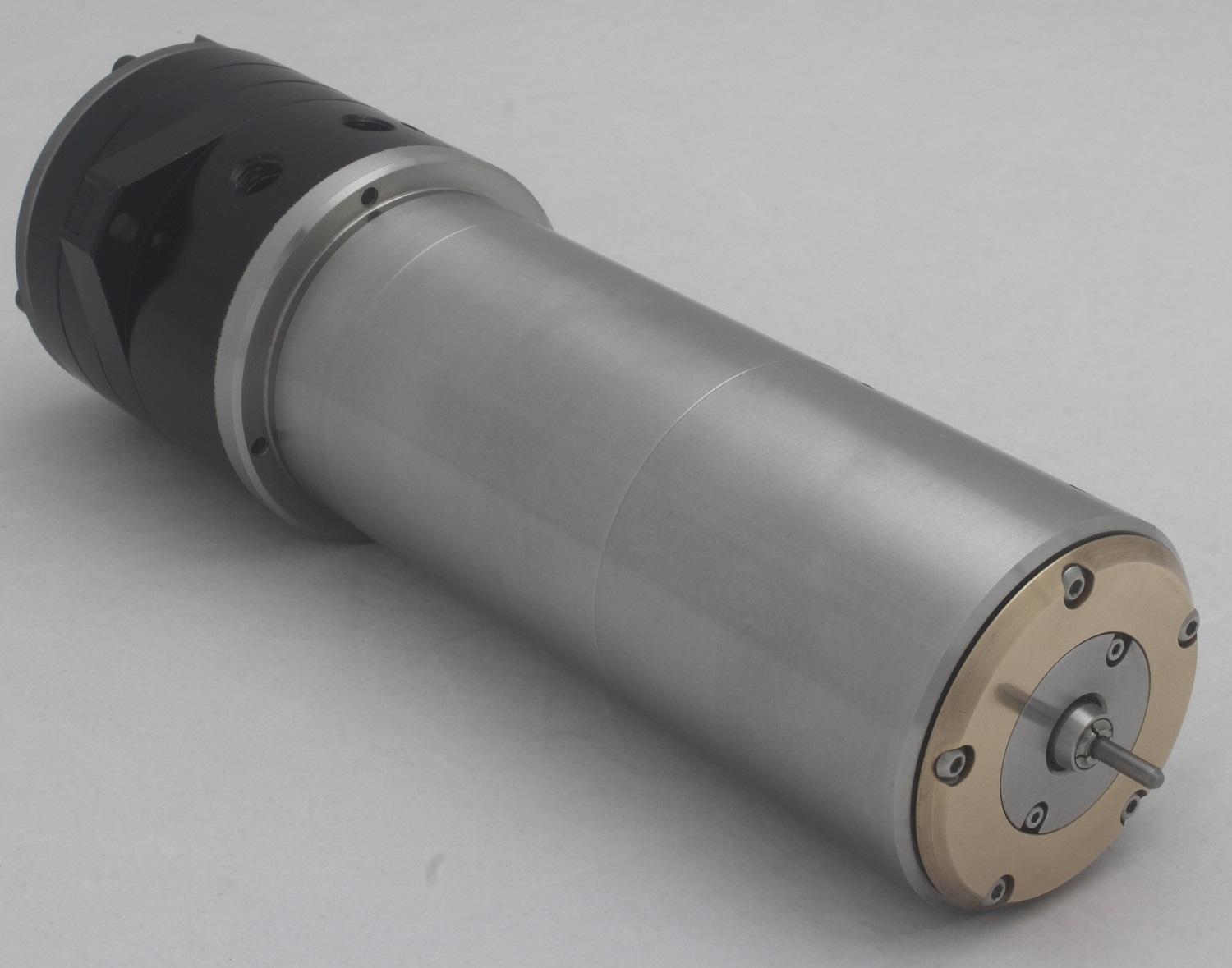

Micro-Machining Spindles
ABL offers an extensive range of spindles suitable for micro-machining operations at speeds of up to 370,000 rpm. Characteristically these spindles have high stiffness and load capacity, are liquid cooled and offer low dynamic run out. These spindles are industry proven and offer exceptional reliability at an affordable price. A range of industry standard body mount sizes may be tailored to suit customer requirements where possible.
Micro-Machining Spindles
ABL offers an extensive range of spindles suitable for micro-machining operations at speeds of up to 370,000 rpm. Characteristically these spindles have high stiffness and load capacity, are liquid cooled and offer low dynamic run out. These spindles are industry proven and offer exceptional reliability at an affordable price. A range of industry standard body mount sizes may be tailored to suit customer requirements where possible.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Speed (RPM) | 15000 | 125000 |
| Air Pressure | 5.5 kgf/cm2 | 6 kgf/cm2 |
| Air Flow Rate | 32 Nl/min | 55 Nl/min |
| Radial Load Capacity | 170 N | |
| Axial Load Capacity | 300 N |
Machines / Applications
| Engraving/Drilling/Tapping/ Die Mold Finishing/Polishing |
| Precision Glass Grinding |
| Ceramics & PZT Materials |
| Precision Component Manufacture (Brass, Aluminium) |
| Graphite Machining - EDM Electrode |
Industries
| Electronic Part Manufacturer |
| Micro Machining Industry |
| Glass Manufacturer |
