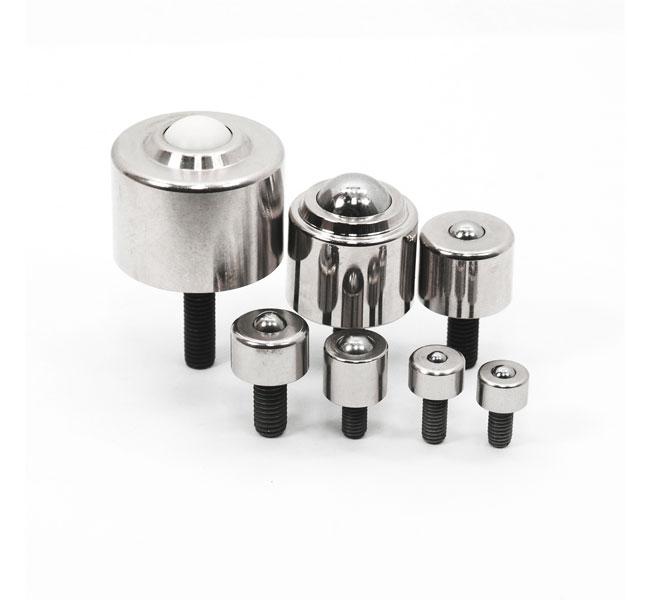

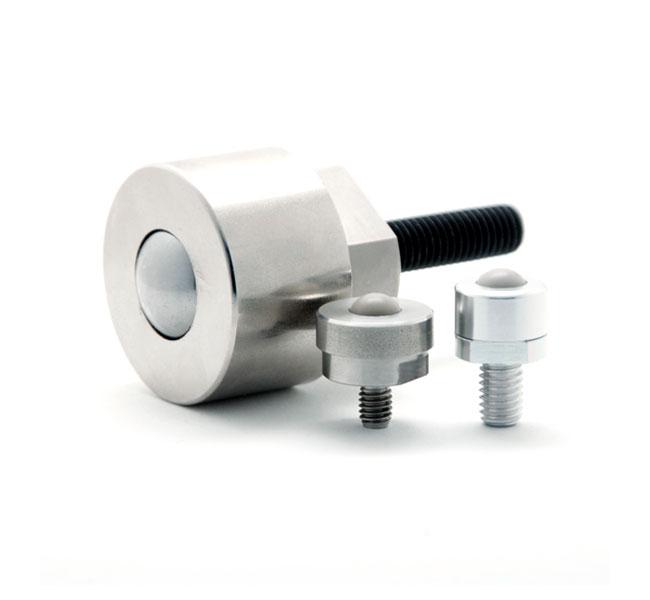

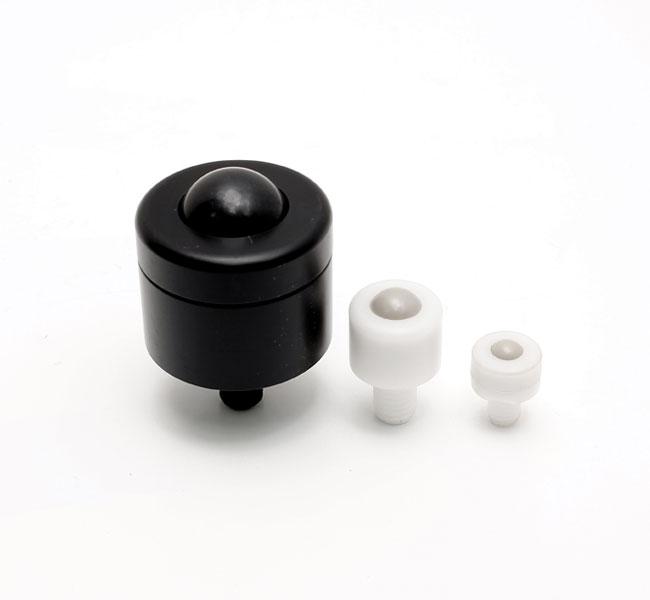

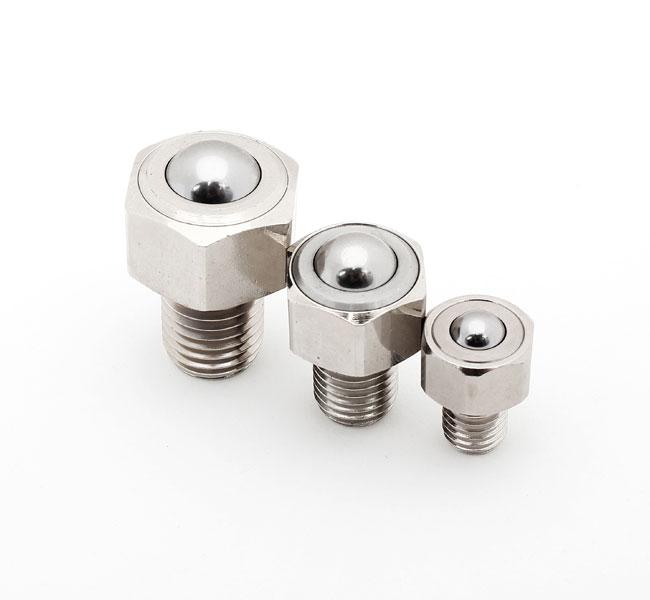

Ball transfer Bolt Type
The Bolt type ball transfer is a Bolt like structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. This type of Ball transfer are suitable for high loads and are easy to install.
Ball transfer Bolt Type
The Bolt type ball transfer is a Bolt like structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. This type of Ball transfer are suitable for high loads and are easy to install.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 1/4" | 2" |
| Housing Diameter | 12 mm | 60 mm |
| Housing Height | 7.5 mm | 50 mm |
| Thread Size | M6 | M12 |
| Stud Length | 12 mm | 35 mm |
| Stationary Load | 20 Kg | 300 Kg |
| Working Load | 10 Kg | 150 Kg |
Machines / Applications
| Material Handling Equipment |
| Air cargo loader |
| Lifting Platform |
| Aircraft Transport cargo rolling deck |
| Hydraulic presses |
| Ball Transfer Tables |
| Equipment |
Industries
| Electronic |
| Mechanical |
| Chemical |
| Medical |
| Material Handling |
| Aircraft Industry |
| Packaging Industries |
| Food Industries |
