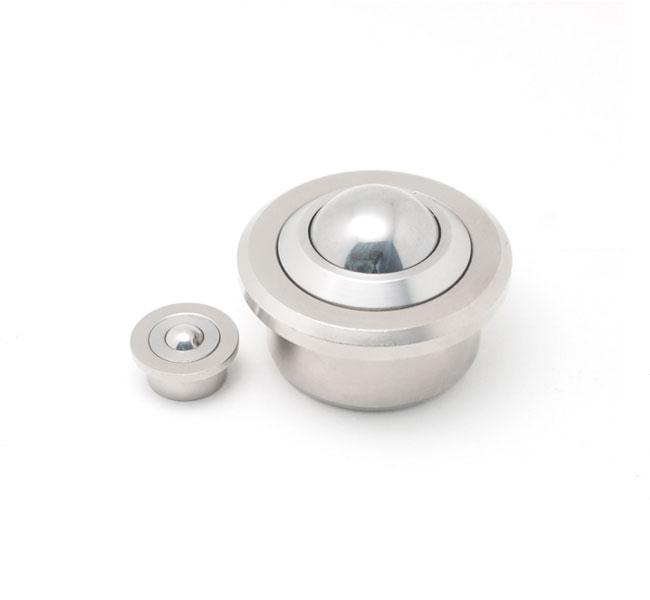

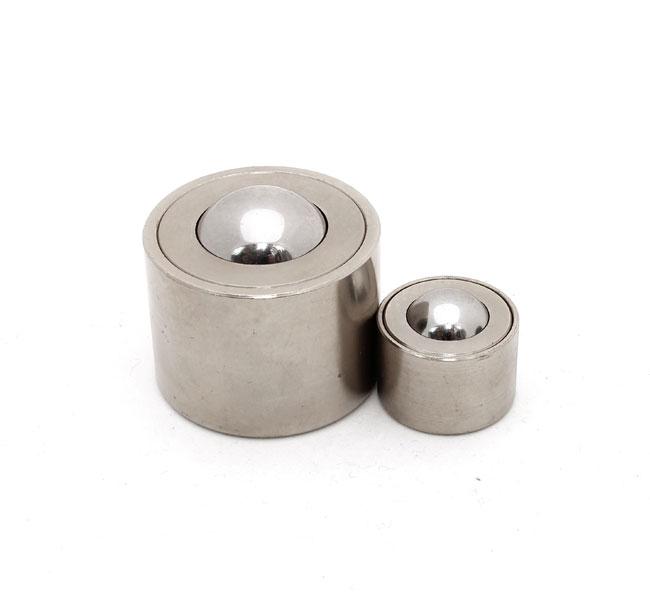

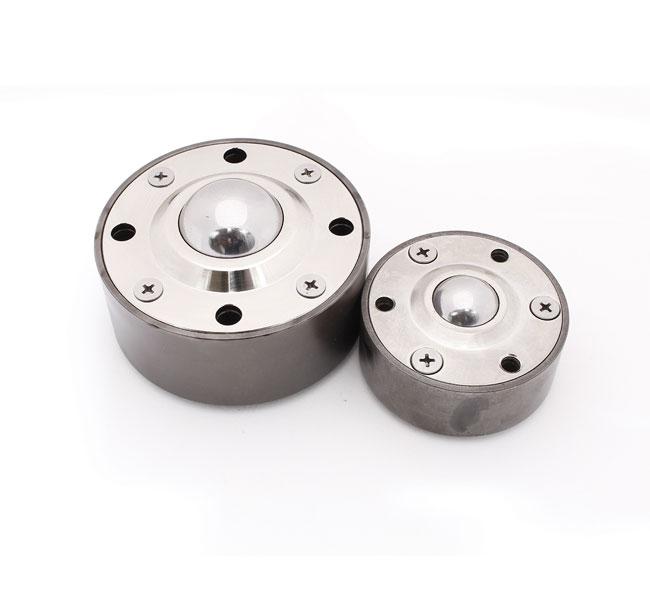

Ball Transfer Cylindrical/Insert Type
The Cylinder/Insert type ball transfer is a structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. This type of Ball transfer are suitable for high loads and Vibration environment.
Ball Transfer Cylindrical/Insert Type
The Cylinder/Insert type ball transfer is a structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. This type of Ball transfer are suitable for high loads and Vibration environment.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 1" | 5" |
| Housing Diameter | 70 mm | 230 mm |
| Overall Height | 40 mm | 175 mm |
| Stationary Load | 260 Kg | 1500 Kg |
| Working Load | 130 Kg | 750 Kg |
Machines / Applications
| Material Handling Equipment |
| Air cargo loader |
| Loading Equipment |
Industries
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
