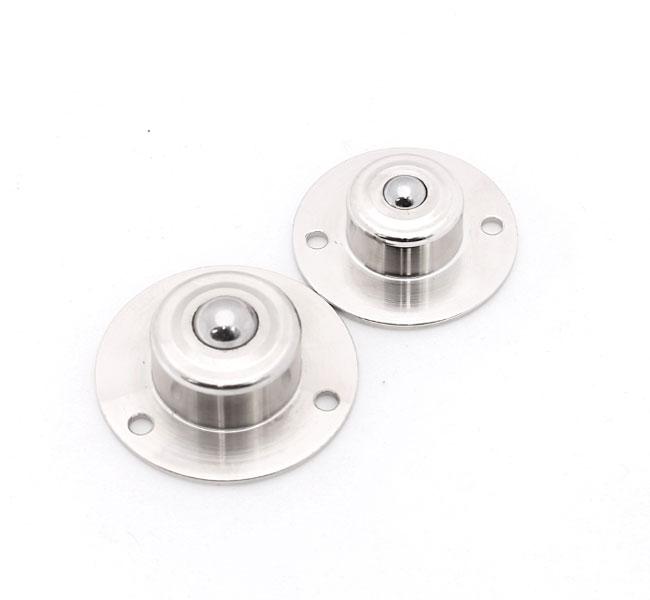

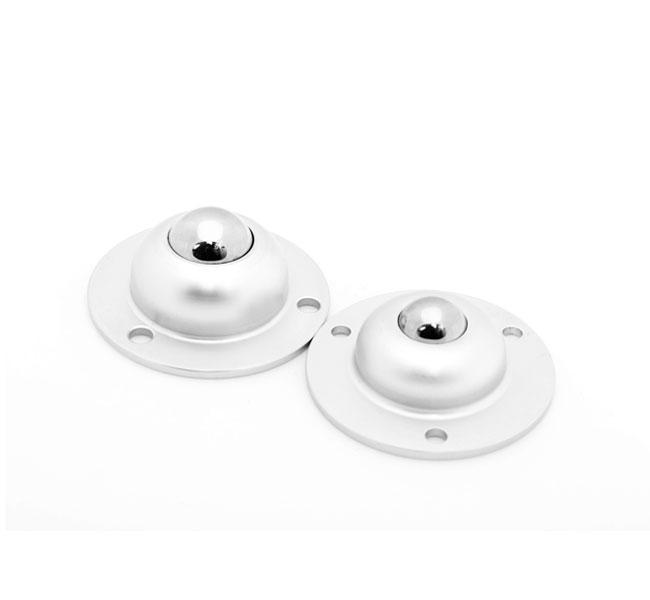

Ball Transfer Flange Type
The Flange type ball transfer is a structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. This type of Ball transfer are suitable for high loads and is light weight and Corrosion resistant.
Ball Transfer Flange Type
The Flange type ball transfer is a structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. This type of Ball transfer are suitable for high loads and is light weight and Corrosion resistant.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 3/8" | 2" |
| Housing Diameter | 23 mm | 95 mm |
| Housing Height | 12.6 mm | 56 mm |
| Flange Housing Height | 45 mm | 140 mm |
| Flange Thickness | 1.8 mm | 10 mm |
| PCD | 35 mm | 120mm |
| Overall Height | 17 mm | 80 mm |
| Stationary Load | 70 Kg | 500 Kg |
| Working Load | 35 Kg | 250 Kg |
Machines / Applications
| Conveyors |
| Air Cargo Application |
| Tool Transfer Stations |
| Assembly lines |
Industries
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
| Food processing |
