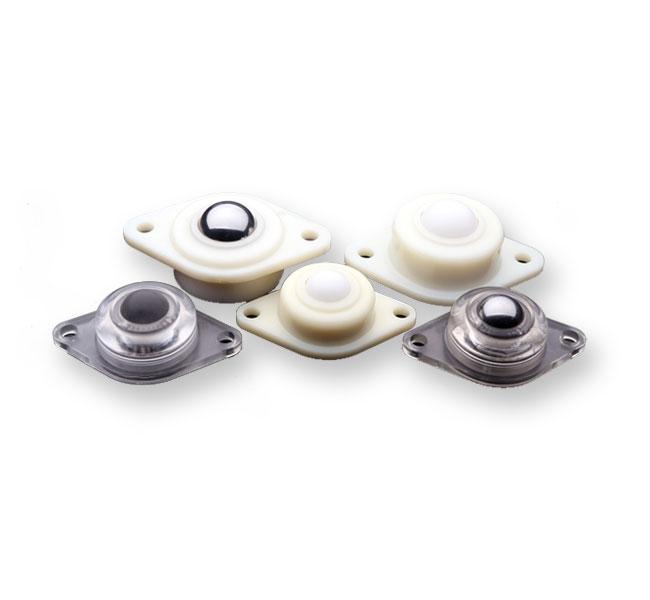

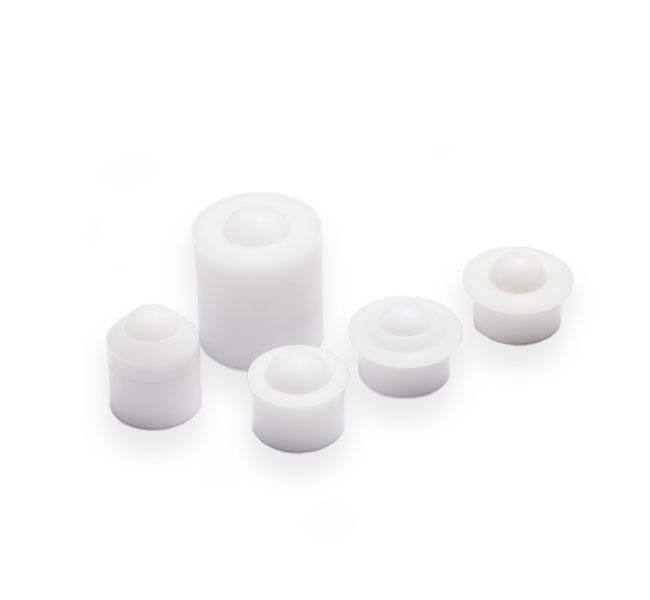

Ball Transfer Plastic Type
The Plastic type ball transfer is a structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. This type of Ball transfer are suitable for low loads and is light weight.
Ball Transfer Plastic Type
The Plastic type ball transfer is a structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. This type of Ball transfer are suitable for low loads and is light weight.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 3/4" | 3/4" |
| Housing Diameter | 38 mm | 48 mm |
| Housing Height | 14 mm | 19 mm |
| Flange Housing Height | 72 mm | 86 mm |
| Flange Thickness | 5 mm | 5 mm |
| PCD | 60 mm | 68 mm |
| Overall Height | 25 mm | 32 mm |
| Stationary Load | 50 Kg | 70 Kg |
| Working Load | 25 Kg | 35 Kg |
Machines / Applications
| Conveyors |
| Air Cargo Application |
| Tool Transfer Stations |
| Assembly lines |
Industries
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
| Food processing |
