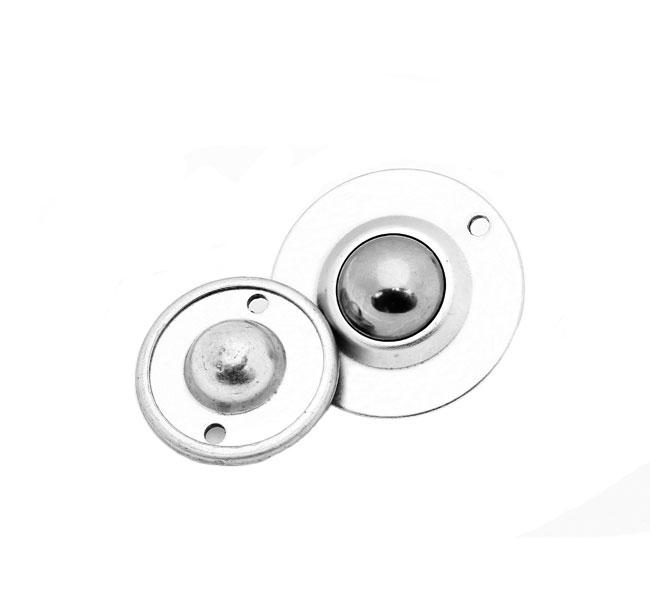

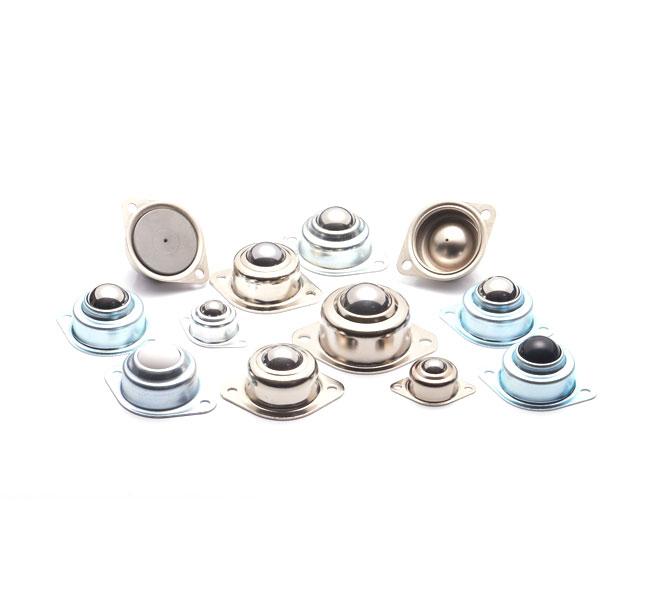

Ball Transfer Press Machined
The Press Machined type ball transfer is a structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. These products have excellent cost-effectiveness due to low/low-end press processing type.
Ball Transfer Press Machined
The Press Machined type ball transfer is a structure that supports one main ball with a number of small balls as its base, allowing the object to move 360 degrees in all directions. In addition, the ball transfer can accurately and stably transfer items through very flexible sliding, which greatly reduces unnecessary details. These products have excellent cost-effectiveness due to low/low-end press processing type.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 5/8 '' | 1-1/2 '' |
| Housing Diameter | 28 mm | 62.5 mm |
| Housing Height | 15 mm | 34 mm |
| Flange Housing Height | 48 mm | 86 mm |
| Flange Thickness | 1 mm | 2 mm |
| PCD | 40 mm | 70 mm |
| Overall Height | 20 mm | 45 mm |
| Stationary Load | 26 Kg | 120 Kg |
| Working Load | 13 Kg | 100 Kg |
Machines / Applications
| Conveyors |
| Air Cargo Application |
| Tool Transfer Stations |
| Assembly lines |
Industries
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
| Food processing |
