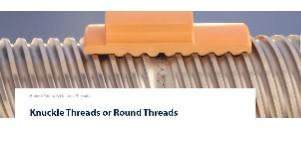

Knuckle Threads or Round Threads
We manufacture your custom-made knuckle thread. The knuckle thread (or round thread) profile prevents prevents dirt buildup and mechanical damage. It is also more resistant to wear and tear than other threads as there are no delicate edges. We manufacture single-start and multi-start round thread lead screws and knuckle threads according to DIN 405, DIN 15403 and DIN 20400 standards (using metric and imperial measurement units), as well as completely custom made lead screws.
Knuckle Threads or Round Threads
We manufacture your custom-made knuckle thread. The knuckle thread (or round thread) profile prevents prevents dirt buildup and mechanical damage. It is also more resistant to wear and tear than other threads as there are no delicate edges. We manufacture single-start and multi-start round thread lead screws and knuckle threads according to DIN 405, DIN 15403 and DIN 20400 standards (using metric and imperial measurement units), as well as completely custom made lead screws.

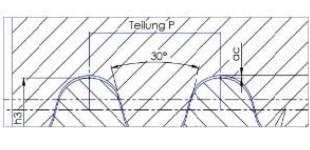

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Number of thread on 1 inch | 4 | 10 |
| Pitch | 2.540 | 6.350 |
| Pressure angle | 30 Degree | 30 degree |
| H3 & H4 | 1.270 | 3.175 |
Machines / Applications
| Articulating Joints |
| Automotive Suspension |
| Hydraulic Systems |
| Medical Devices |
| Aircraft Control Surfaces |
| Pressure Vessels |
| Instrumentation |
| Nuclear Industry |
Industries
| Robotics Industry |
| Automotive Manufacturing |
| Hydraulic Equipment |
| Medical Device Manufacturing |
| Aerospace Industry Oil and Gas Industry |
| Pressure Vessel Manufacturing |
| Instrumentation Industry |
| Nuclear Power Industry |
| Aerospace Industry |
