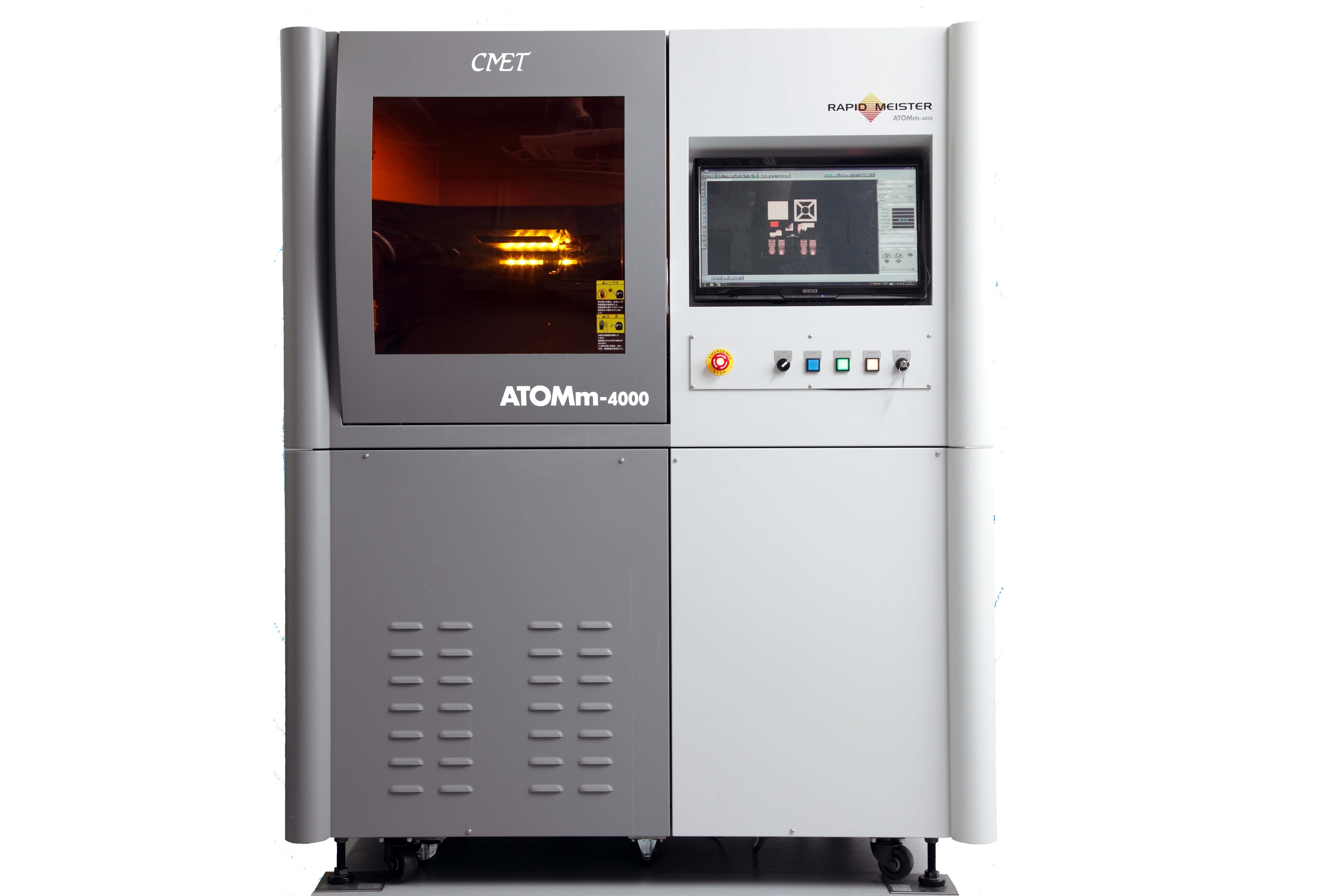

ATOMm-4000
This exceptional middle size stereolithography machine offers a larger build area, surpassing the size of A3, with dimensions of W400xD400xH300mm. It provides outstanding value for its reasonable price. Equipped with CMET's original high-speed and high-accuracy scanning system, it ensures precise and efficient scanning. The machine boasts enhanced operativity with double doors for easy model removal and a user-friendly touch panel for effortless viewing and operation. Recognized for its excellence, this machine was honored with the prestigious "Nikkei Business Daily Awards for Excellence" at the 2013 Nikkei Superior Products and Services Awards.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Laser Type | Solid state laser 400mW 40KHz | |
| Scanning System | Digital scanner mirror (TSS4) | |
| Maximum Scanning Speed | 30m/sec | |
| Beam Diameter | Variable | |
| Maximum Build Envelope | W400xD400xH300mm | |
| Minimum Build Layer | 0.025mm ^depends on the resin used | |
| Recoating System | Blade Recoater (Op. Vent Recoater) | |
| Vat | Interchangeable (Approx. 80 ℓ) | |
| Controller Power | AC100V Single phase 15A | |
| Dimensions | W1,565xD1,050xH1,860mm | |
| Weight | 550 kg (without resin) |
Variant Applications
| Industries |
|---|
| Automotive |
| Aerospace |
| Medical |
| Healthcare Consumer |
| Jewellery |
| Prototyping |
