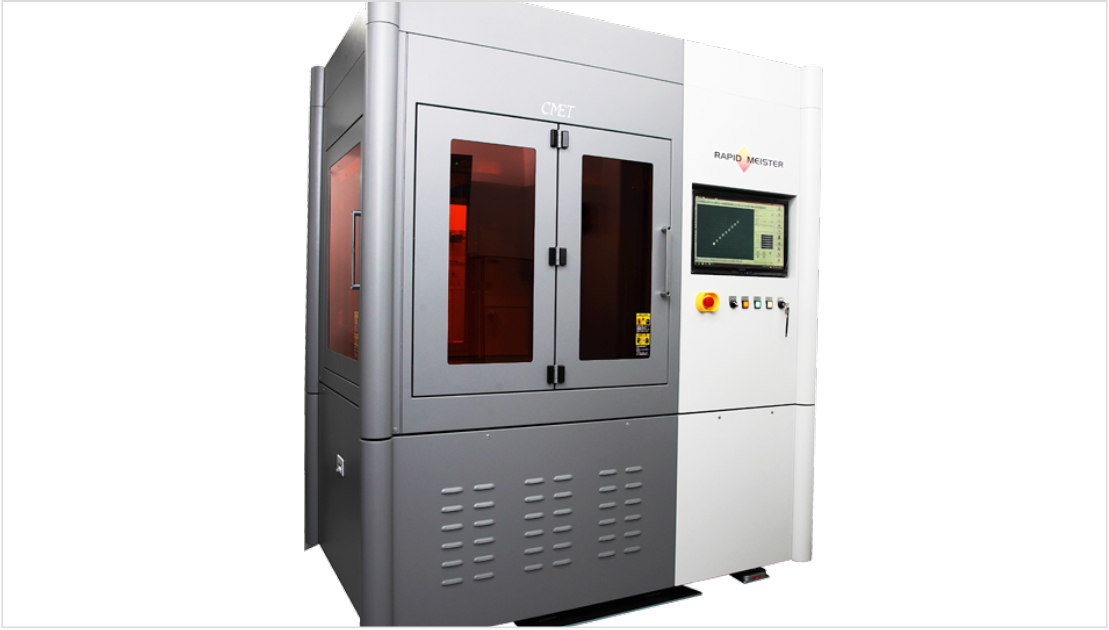

ATOMm-8000
Featuring a generous W800xD600xH400mm build volume, this advanced 3D printer allows for the seamless creation of large-scale models in a single print, all at a reasonable price. Equipped with CMET's original high-speed and high-accuracy scanning system, it ensures precise scanning results. The latest recoating system enhances operability, while the triple doors enable effortless removal of large-scale models. With a user-friendly touch panel, viewing and operating the printer is made easy and intuitive.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Laser Type | Solid state laser 1.2W 80KHz | |
| Scanning System | Digital scanner mirror (TSS4) | |
| Maximum Scanning Speed | 45m/sec | |
| Beam Diameter | Variable | |
| Maximum Build Envelope | W800xD600xH400mm | |
| Minimum Build Layer | 0.05mm | |
| Recoating System | Vent Recoater | |
| Vat | Interchangeable (Approx. 305ℓ) | |
| Controller Power | AC100V Single phase 15A | |
| Dimensions | W1,900xD1,190xH2,170mm | |
| Weight | 1,200kg (without resin) |
Variant Applications
| Industries |
|---|
| Automotive |
| Aerospace |
| Medical |
| Healthcare Consumer |
| Jewellery |
| Prototyping |
