ERC Series
CPC Ball Linear Guides heavy load series ERC use four row recirculating steel balls. They have advance features like built in lubricant storage and supply system, patented reinforcement plate design and high rigidity.

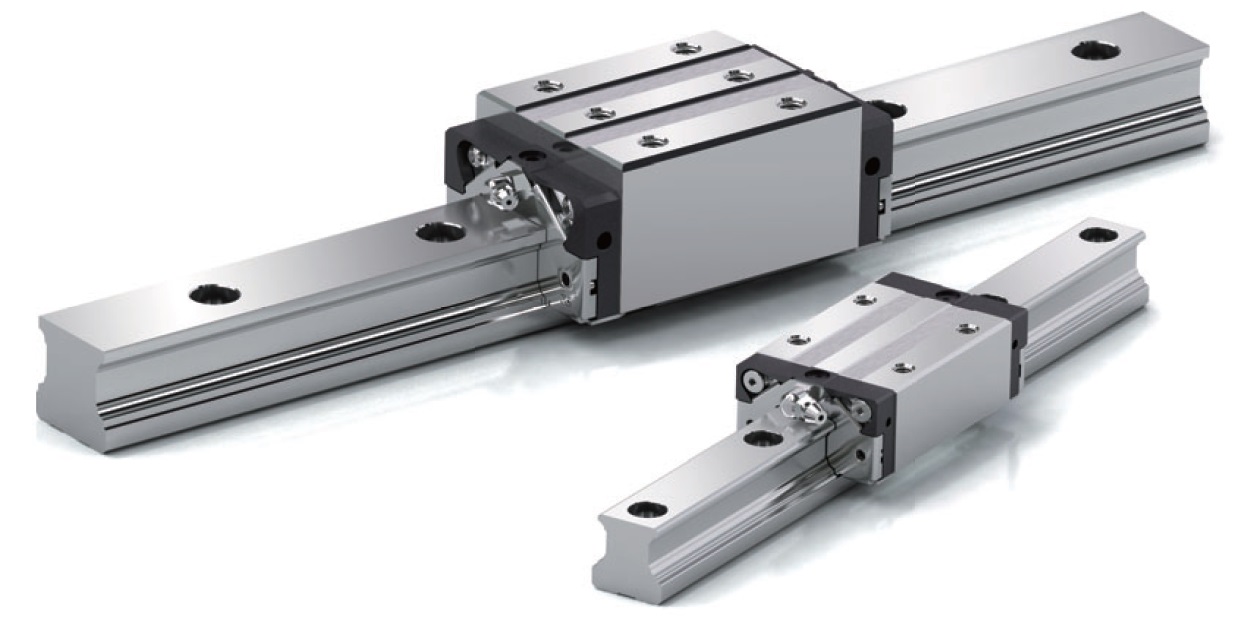

Variant Image

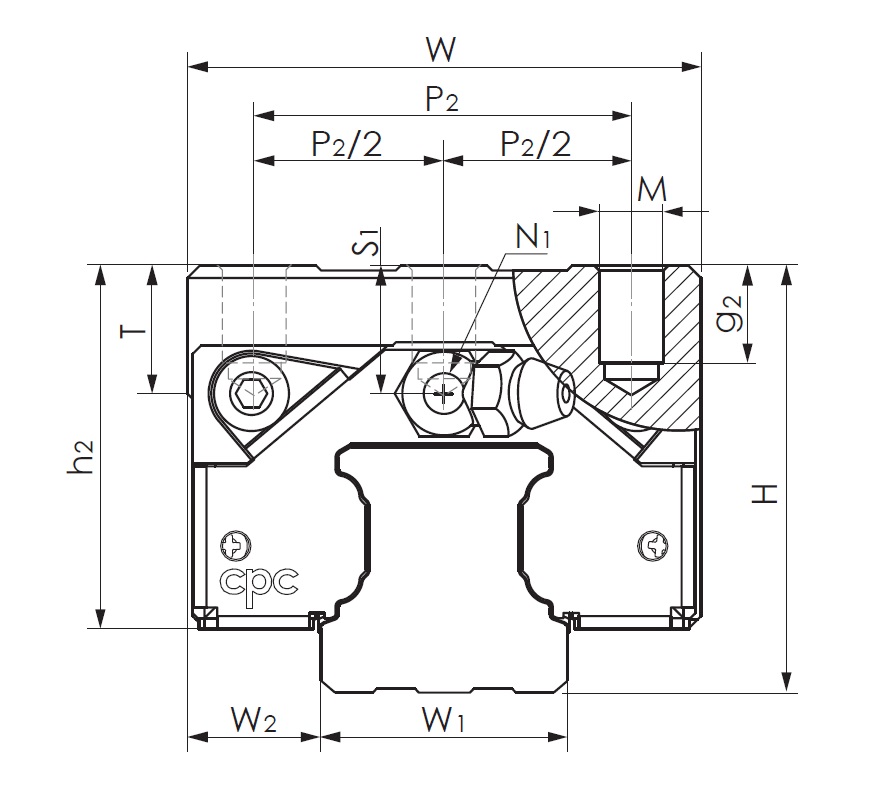

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 23 mm | 23 mm |
| Assembly Height | 36 mm | 36 mm |
| Dynamic Load | 24.8 KN | 30.7 KN |
| Static Load | 42.5 KN | 57.7 KN |
Variant Applications
| Machines / Applications |
|---|
| Conveyance System |
| Industrial Robots |
| Woodworking Machine |
| Injection Molding Machine |
| CNC Machining Center |
| Industries |
|---|
| Precision Measurement Equipment Manufacturer |
| Electronic Part Manufacturer |
| Machine Tool Manufacturer |
