WRC Series
CPC Ball Linear Guides Wide Rail Series WRC is designed with ball chain patented design. This helps in keeping high contact area between ball and chain which results in high speed, low noise operations.

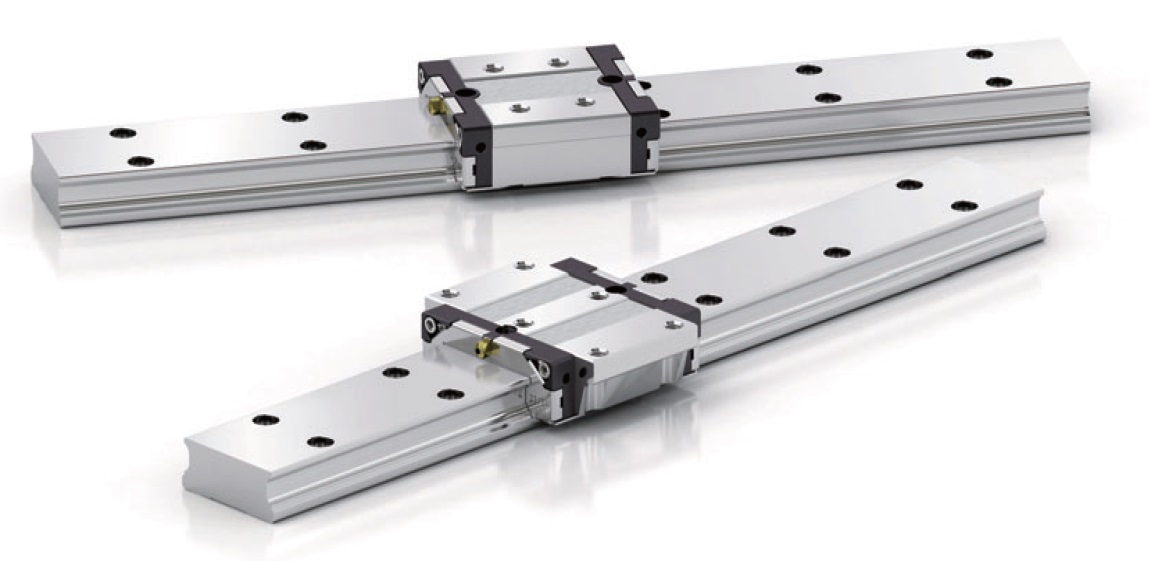

Variant Image

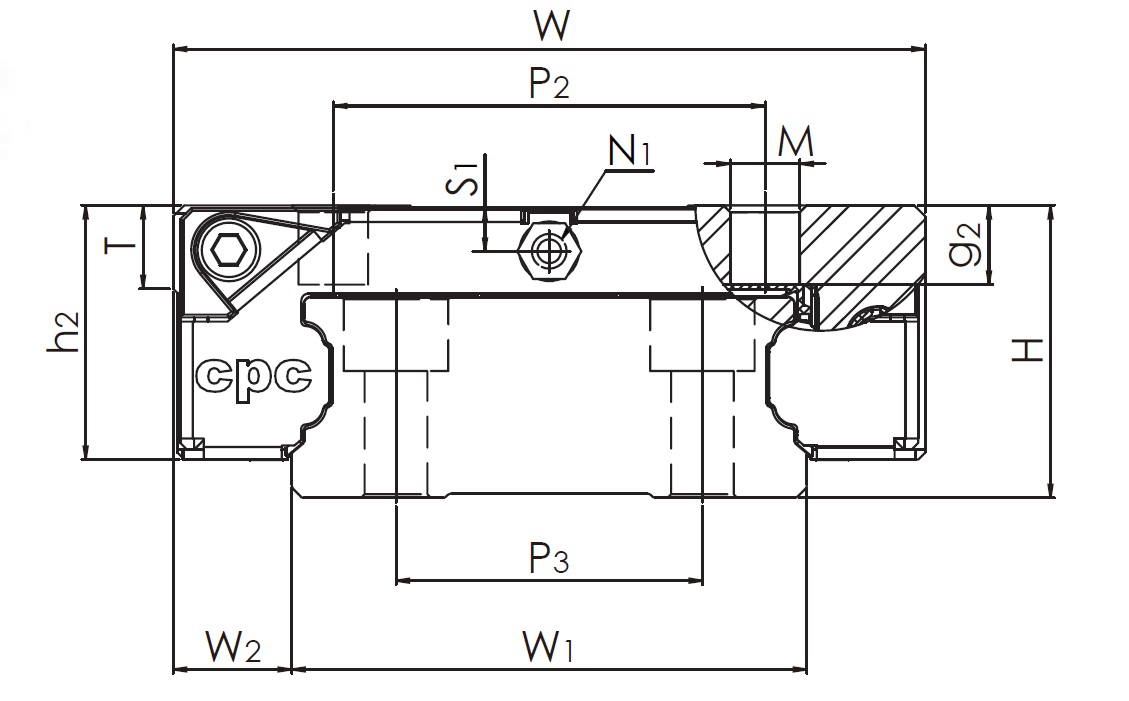

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 37 mm | 42 mm |
| Assembly Height | 21 mm | 27 mm |
| Dynamic Load | 9.9 KN | 281 KN |
| Static Load | 17.5 KN | 30 KN |
Variant Applications
| Machines / Applications |
|---|
| CNC Machine |
| Industries |
|---|
| Precision Measurement Equipment Manufacturer |
| Electronic Part Manufacturer |
WRC Series
CPC Ball Linear Guides Wide Rail Series WRC is designed with ball chain patented design. This helps in keeping high contact area between ball and chain which results in high speed, low noise operations.
Variant Image

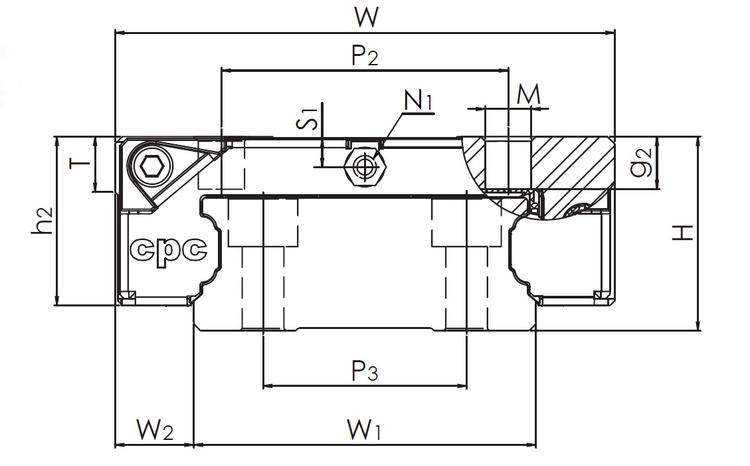

Variant Diagram
