MR Series
CPC MR is Miniature Ball Linear Guide Series. It features high load, high moment function, unique ball recirculation design, steel plate reinforcement design, dust proof design and lubrication design etc.

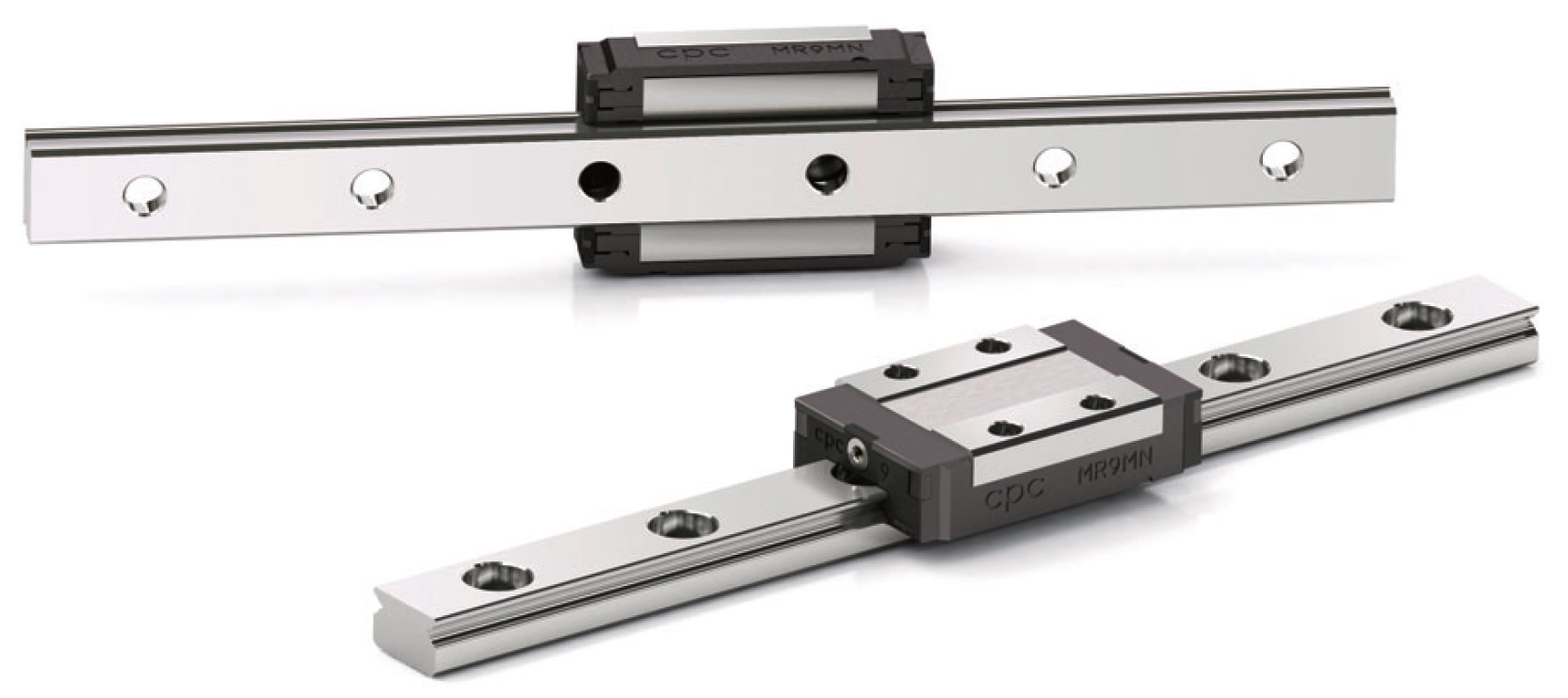

Variant Image

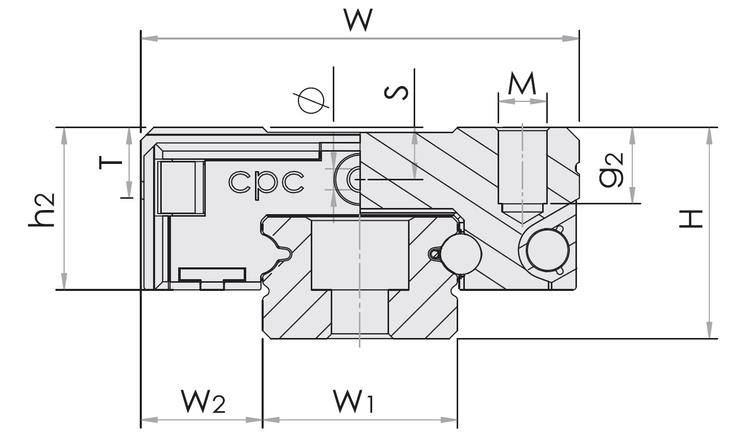

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 2 mm | 42 mm |
| Assembly Height | 3.2 mm | 16 mm |
| Dynamic Load | 158 N | 6.7 KN |
| Static Load | 349 N | 12.58 KN |
Variant Applications
| Machines / Applications |
|---|
| CMM Machines |
| 3D Printing Machines |
| X-Ray Scanner & Analyzer Machines |
| SMT Machine |
| Bottle Rotating Apparatus |
| Industries |
|---|
| Precision Measurement Equipment Manufacturer |
| Electronic Part Manufacturer |
| Medical Equipment Manufacturer |
| Semiconductor (PCB) Industries |
MR Series
CPC MR is Miniature Ball Linear Guide Series. It features high load, high moment function, unique ball recirculation design, steel plate reinforcement design, dust proof design and lubrication design etc.
Variant Image

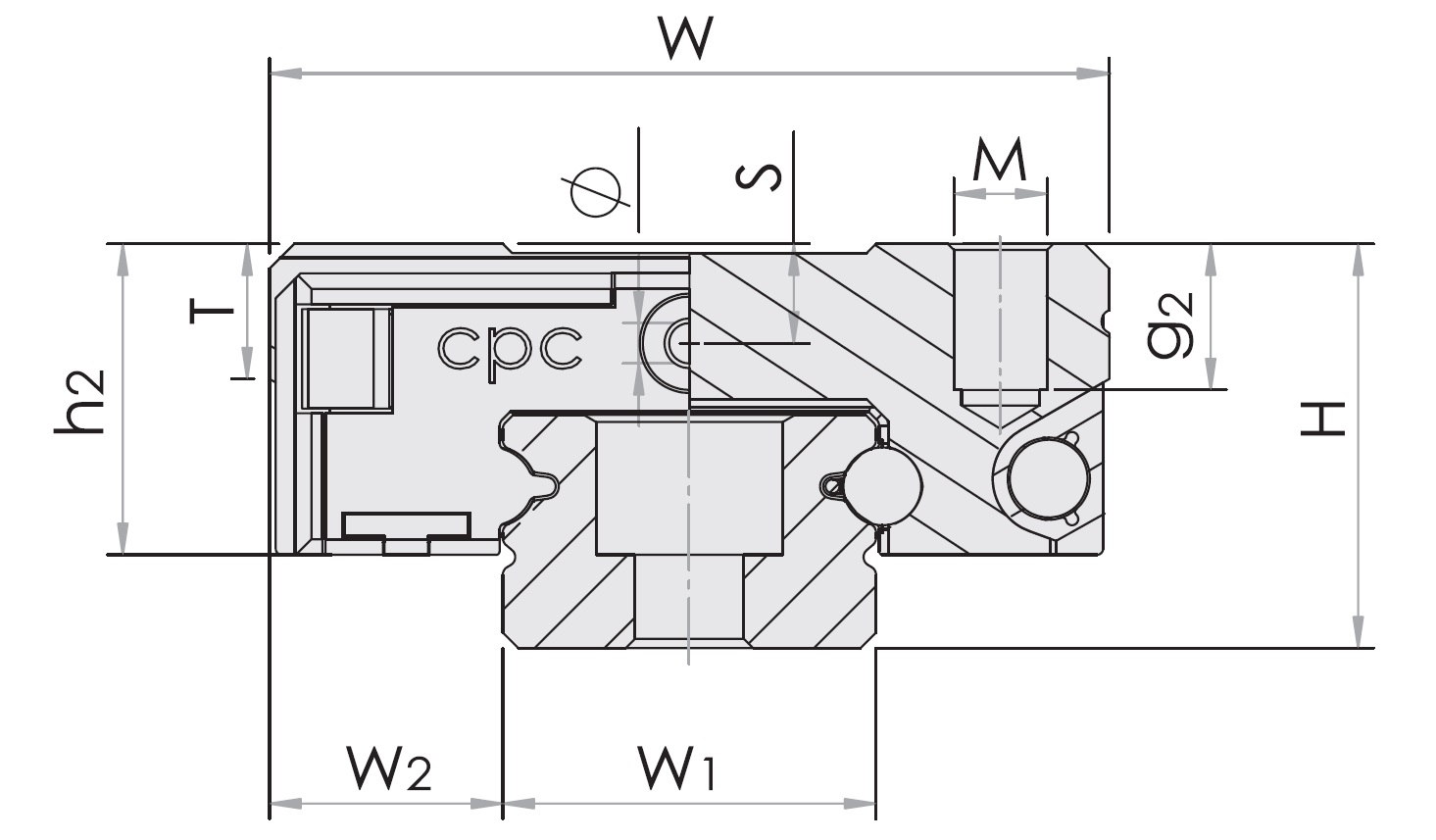

Variant Diagram
