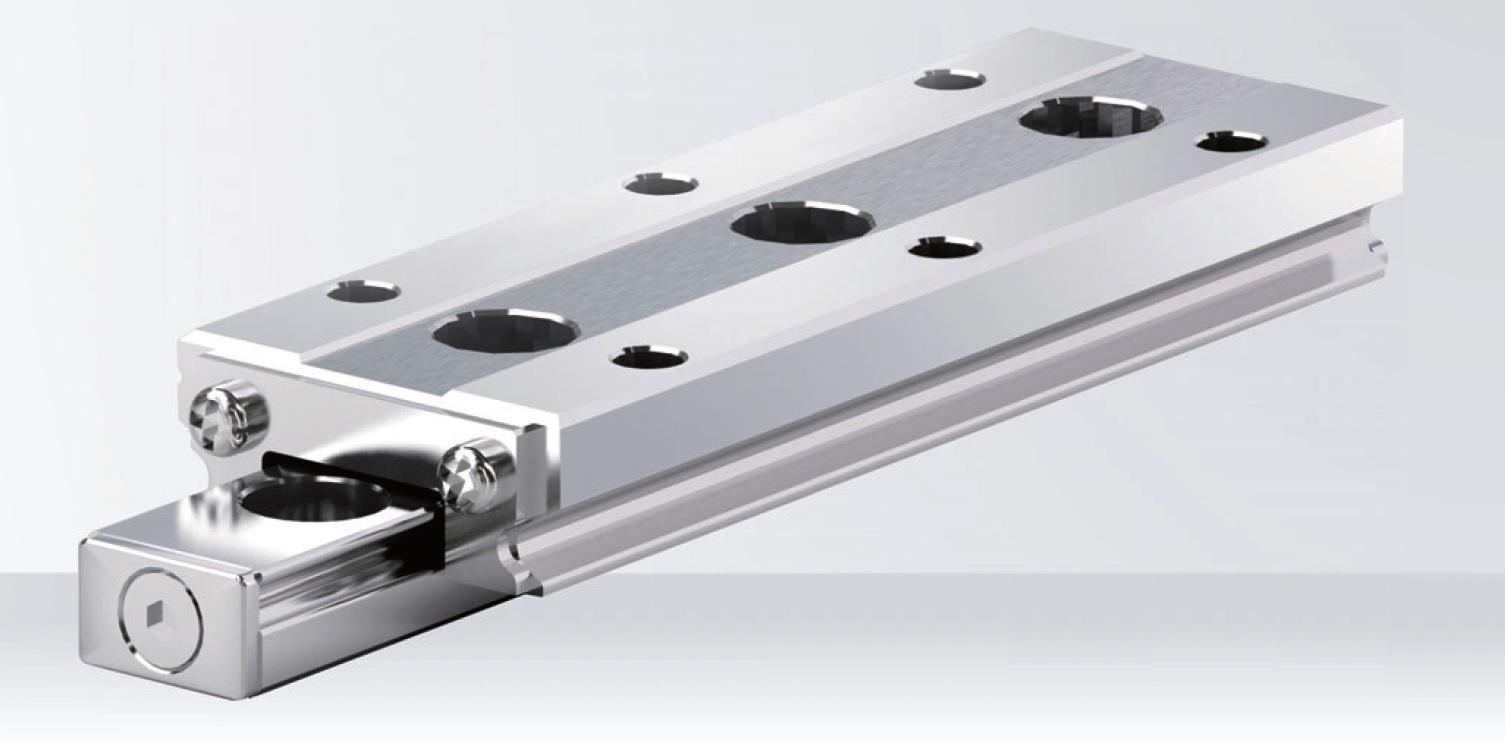

Miniature Stroke Slide
CPC ST Miniature Stroke Slide series is designed with two rows of balls. It features high load and high moment capacity, high running accuracy and smoothness, easy mounting etc.
Miniature Stroke Slide
CPC ST Miniature Stroke Slide series is designed with two rows of balls. It features high load and high moment capacity, high running accuracy and smoothness, easy mounting etc.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 7 mm | 12 mm |
| Assembly Height | 8 mm | 13 mm |
| Dynamic Load | 910 N | 4.05 KN |
| Static Load | 1.58 KN | 8.67 KN |
| Maximum Stroke | 27 mm | 94 mm |
Machines / Applications
| CNC Machines |
Industries
| Maintenance and Inspection |
