HRR Series
CPC Roller Linear Guides comes in extra low profile, low profile and high profile type. These are available in 35 and 45 size. The distinguishing points are, it comes with high-rigidity stainless-steel reinforcement Plate, full cover seal and metal plastic cap. The Roller Blocks are available in Square and Flanged Version.

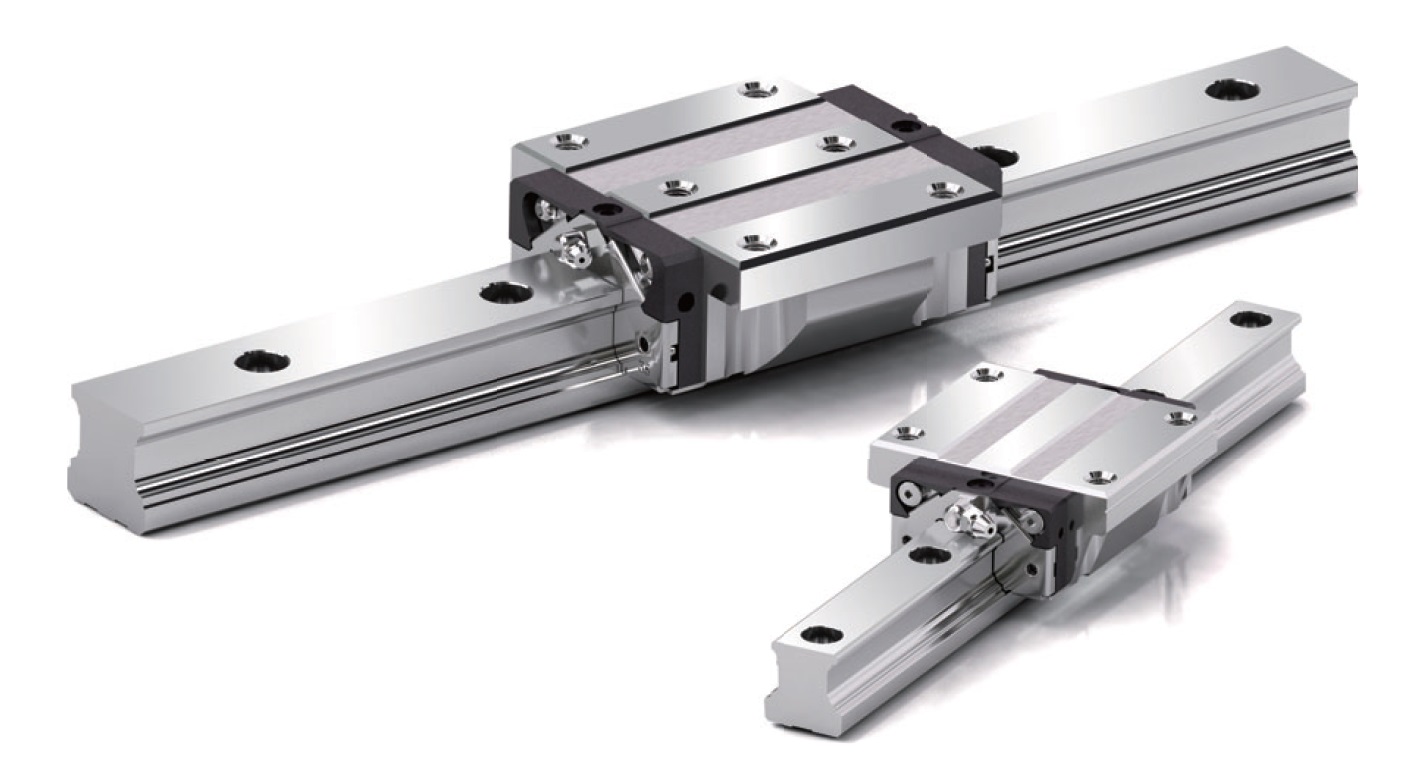

Variant Image

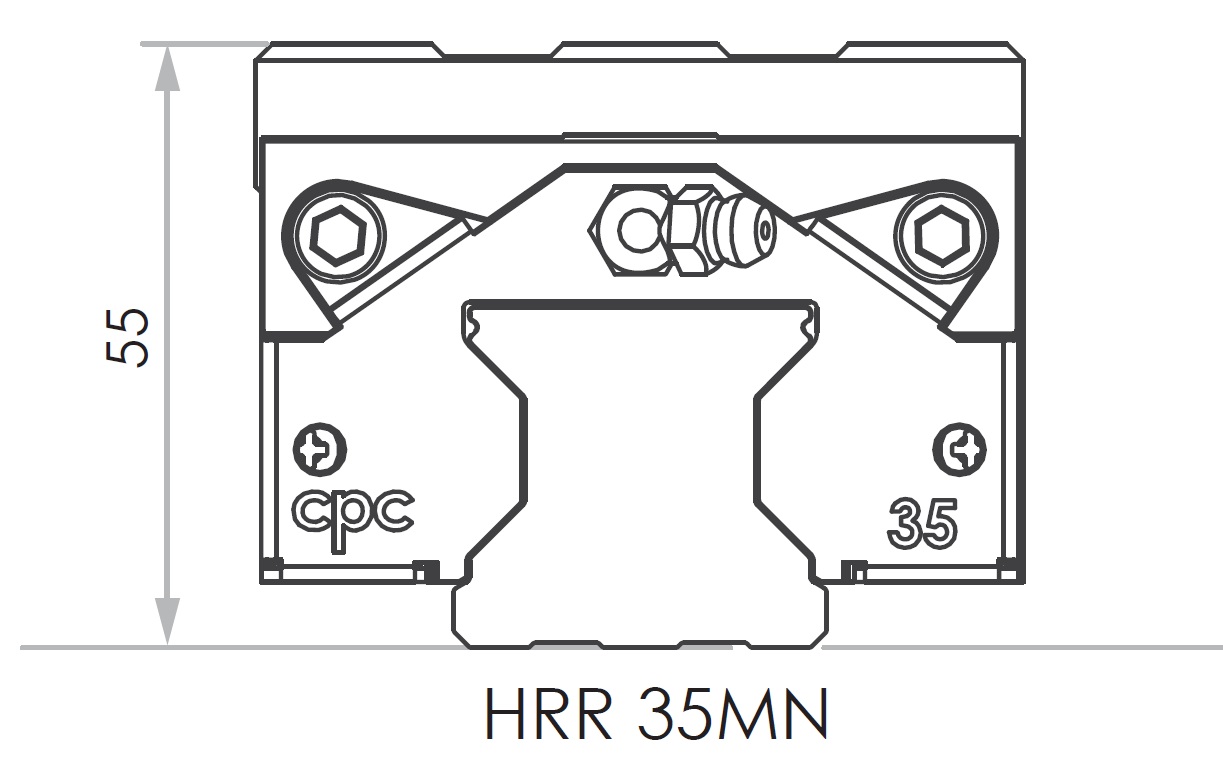

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 34 mm | 45 mm |
| Assembly Height | 44 mm | 70 mm |
| Dynamic Load | 57 KN | 172.5 KN |
| Static Load | 133 KN | 410 KN |
Variant Applications
| Machines / Applications |
|---|
| CNC Machine |
| Industries |
|---|
| Precision Measurement Equipment Manufacturer |
| Electronic Part Manufacturer |
