Palletizer- Flexrobot
FlexRobot is the pinnacle of multi-functional robotic arms (4-axis or 6-axis handling robot) tailored for product and bag palletizing. It can operate as both a palletizer and a depalletizer. Engineered in Italy, this versatile solution optimizes palletizing processes with precision and adaptability, enhancing efficiency across diverse industrial landscapes. It is equipped with a shopping head designed to product specifications, single or grouped product picking, pallet and interface picking, picking from, and depositing on several lines.This can be customized according to the required pallet dimensions.

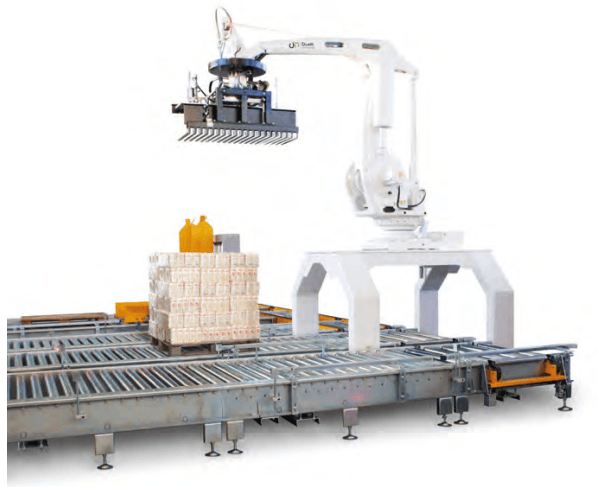

Variant Image

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Standard Pallet Dimensions LxW (mm) Min & Max | 1200x800 & 1200x1000 | |
| Maximum Carrying Capacity (Kg) | 180 | |
| Production (Cycles/min) | 15 | |
| Avg. Electric Power (kW) | 19 | |
| 3-Phase Supply Voltage (Volts/Hz) | 415 V ±10% /50Hz | |
| Avg. Air Consumption (Nl/min) | 200 |
Variant Applications
| Industries |
|---|
| Beverage |
| Food |
| Chemical |
| Pharmaceutical |
| Cosmetic |
| Edible Oil |
| Perosnal Care |
| Home Care |
