Palletizer- VIP

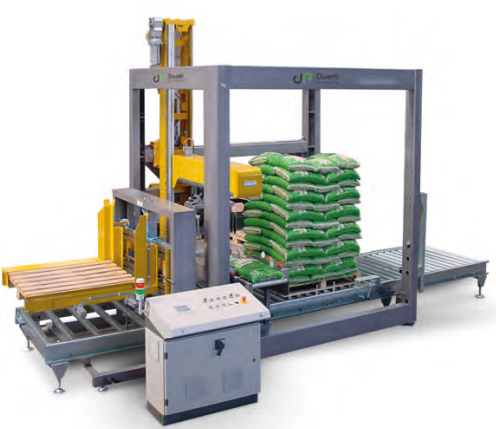

Discover Duetti's state-of-the art VIP bag palletizer machine, meticulously engineered in Italy. It is designed to efficiently stack bags. This innovative machinery maximizes space utilization and enhances workflow in diverse industrial environments. Trust Duetti for reliability, precision, and performance in bag palletizing solutions. It is a semi-automatic (with a pallet on the ground) or automatic (with roller conveyors and a pneumatic pallet magazine) palletizer with three brushless motorized Cartesian axes, a suction cup, a flap, a gripper head, an equipped rotation system, and a product infeed conveyor with batch preformation. This can be customized according to the required pallet dimensions.
Variant Image

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Products | Cartons, Bundles, Canisters, Crates and Bags | |
| Standard Pallet Dimensions LxW (mm) Min & Max | 1200x800 & 1200x1000 | |
| Maximum Carrying Capacity (Kg) | 50 | |
| Production (Cycles/min) | Max. 6 | |
| Avg. Electric Power (kW) | 18 | |
| 3-Phase Supply Voltage (Volts/Hz) | 415 V ±10% /50Hz | |
| Avg. Air Consumption (Nl/min) | 120 |
Variant Applications
| Industries |
|---|
| Fertilizer |
| Seeds & Crop |
| Pet Food |
| Cattle feed |
| Chemical |
| Cement |
| Food Powder |
| Homecare |
| Plastic Granules |
