K1 Series
DV-B K1 Series bearings are Single Row Ball Slewing Bearings manufactured as four point contact bearings. There are three types based on the type of gear i.e. without gear, with external gear and with internal gear.

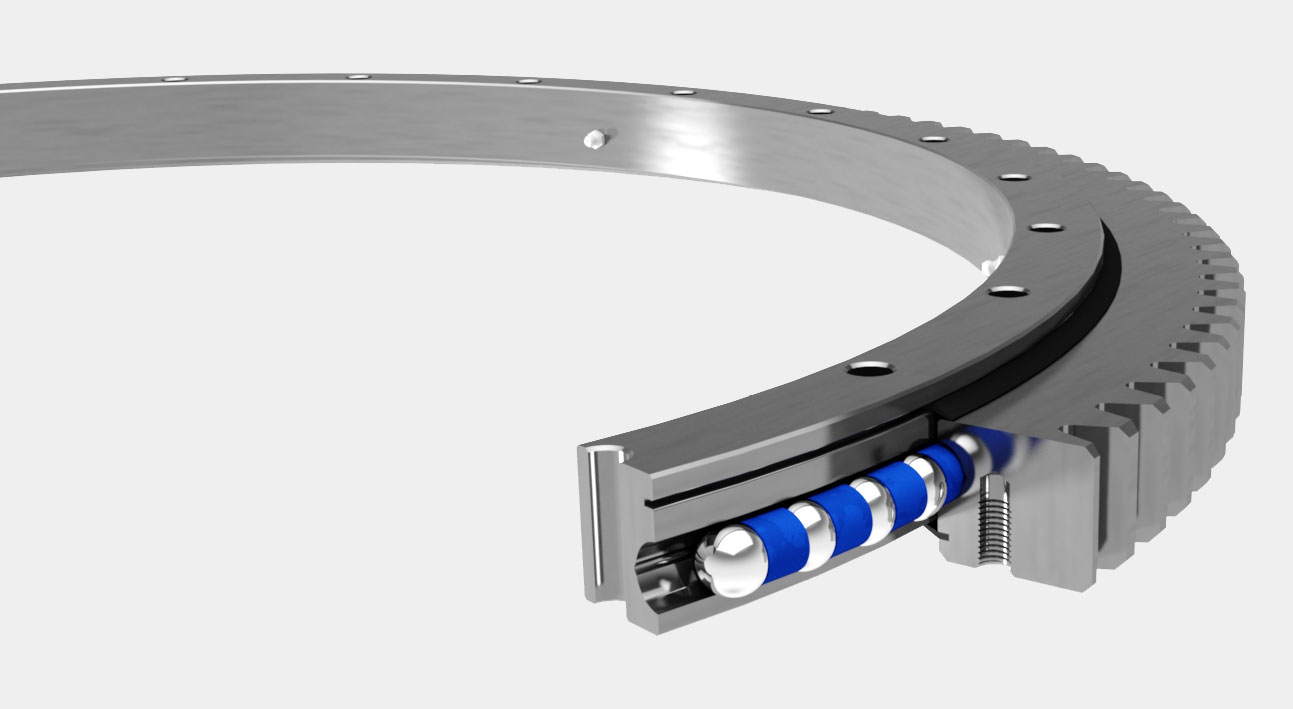

Variant Image

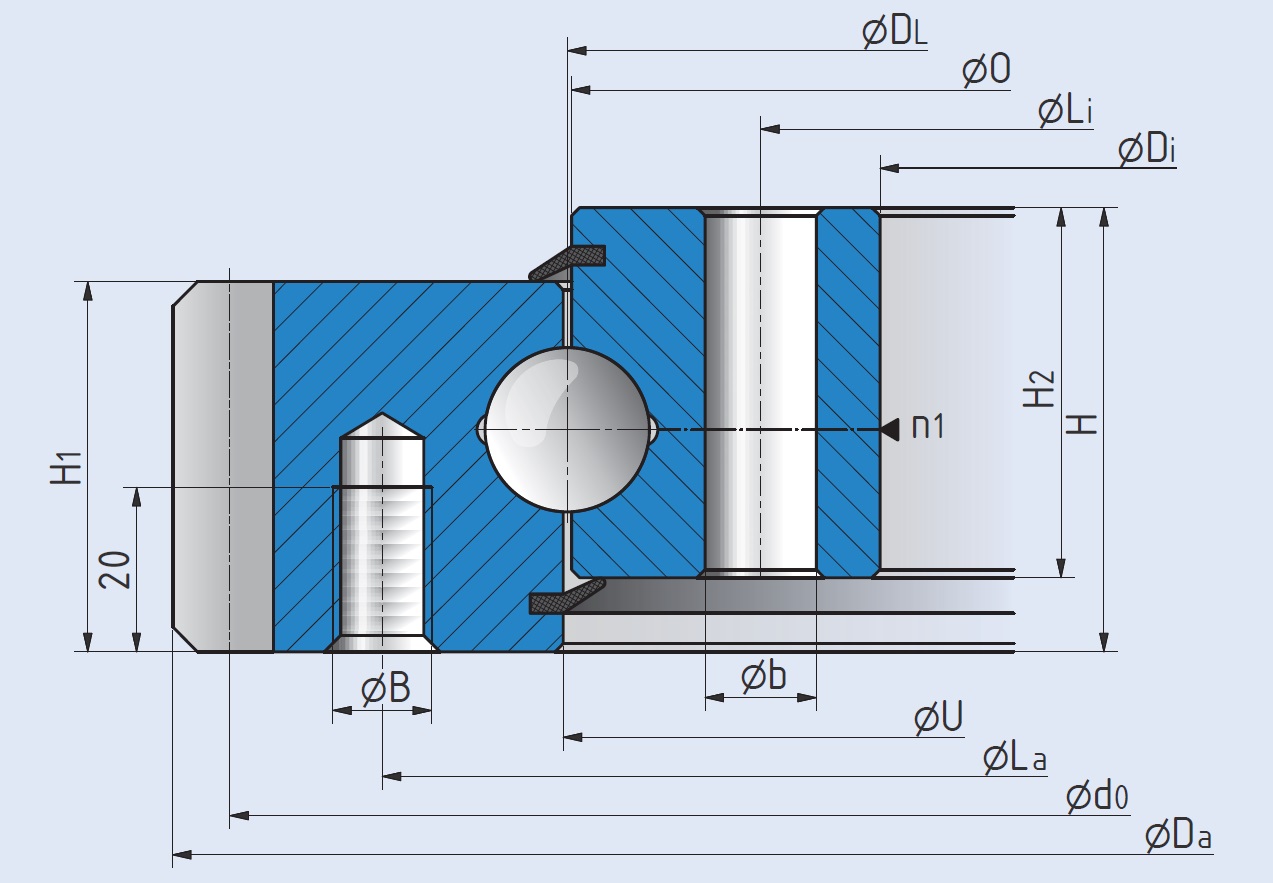

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Outer Diameter | 486 mm | 3597 mm |
| Inner Diameter | 325 mm | 3181 mm |
| Total Height | 56 mm | 119 mm |
| Diameter of Borehole Circle - Outer Ring | 455 mm | 3453 mm |
| Diameter of Borehole Circle - Inner Ring | 368 mm | 3247 mm |
Variant Applications
| Machines / Applications |
|---|
| Construction Equipment |
| Tunnel Boring Machines |
| Wind Turbine |
| Still Mill and Foundries |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Steel & Aluminium Manufacturer |
| Mining |
| Marine Industry |
