K2 Series
DV-B K2 Series bearings are Double Row Ball Slewing Bearings manufactured as eight point contact bearings. There are two types based on the type of gear i.e. with external gear and with internal gear. These are ideally used for applications with very high static loads.

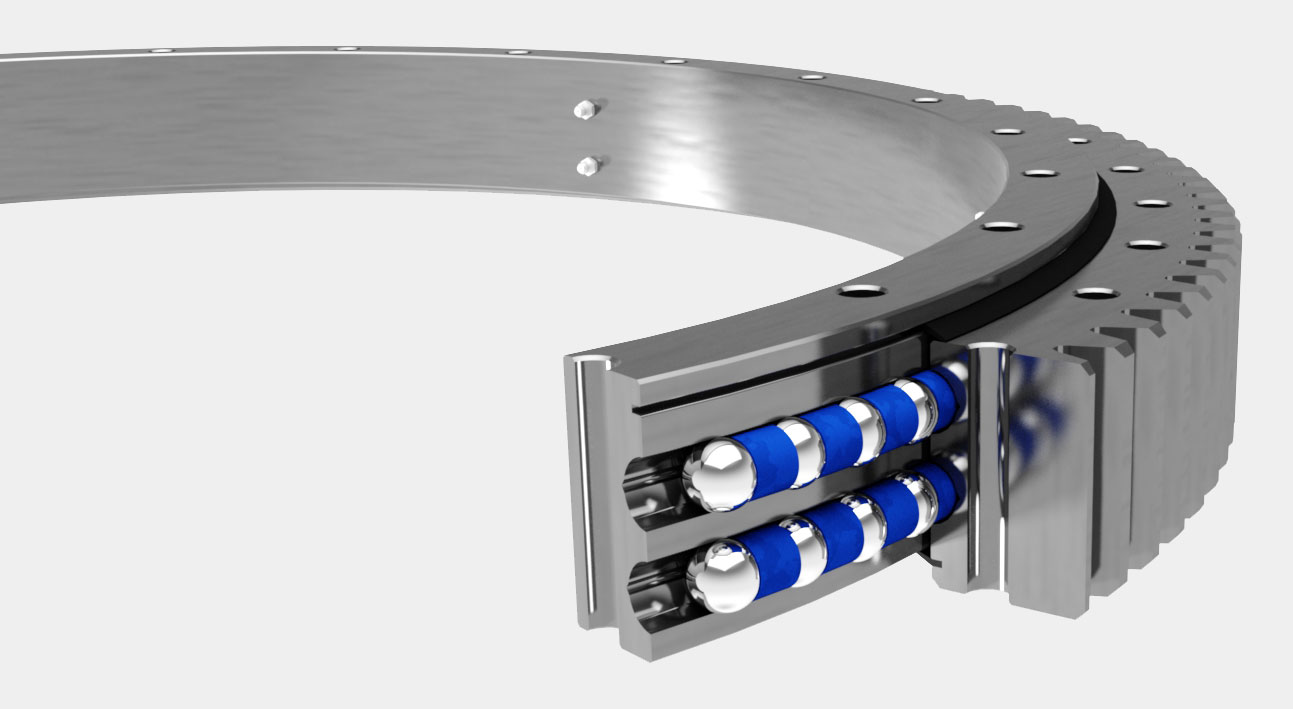

Variant Image

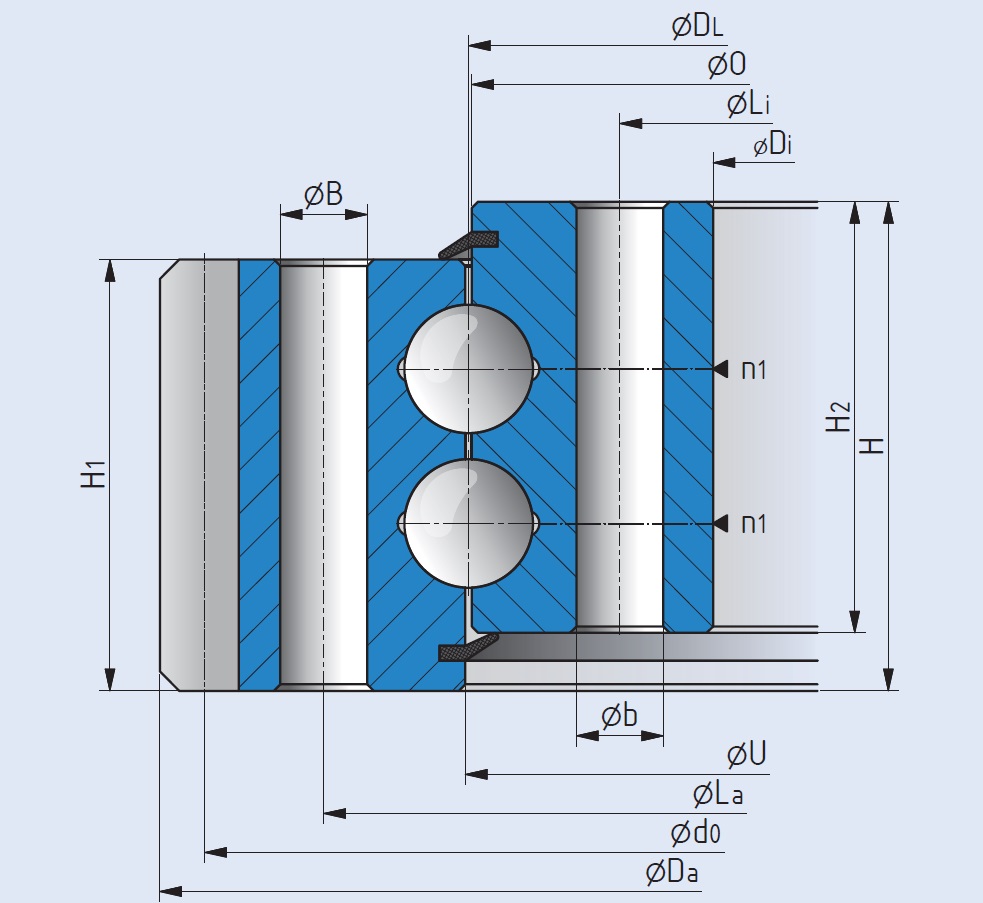

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Outer Diameter | 893 mm | 4176 mm |
| Inner Diameter | 690 mm | 3271 mm |
| Total Height | 85 mm | 186 mm |
| Diameter of Borehole Circle - Outer Ring | 853 mm | 4003 mm |
| Diameter of Borehole Circle - Inner Ring | 747 mm | 3797 mm |
Variant Applications
| Machines / Applications |
|---|
| Construction Equipment |
| Tunnel Boring Machines |
| Wind Turbine |
| Still Mill and Foundries |
| Industries |
|---|
| Material Handling Equipment Manufacturer • Steel & Aluminium Manufacturer |
| Steel & Aluminium Manufacturer |
| Mining |
| Marine Industry |
