R3 Series
DV-B R3 Series bearings are Roller Slewing Bearings with three roller raceways. These bearings have highest static and dynamic load capacity. They are used in confined spaces confirming high stiffness and uniform rotational resistance. There are two types based on the type of gear i.e. with external gear and with internal gear.

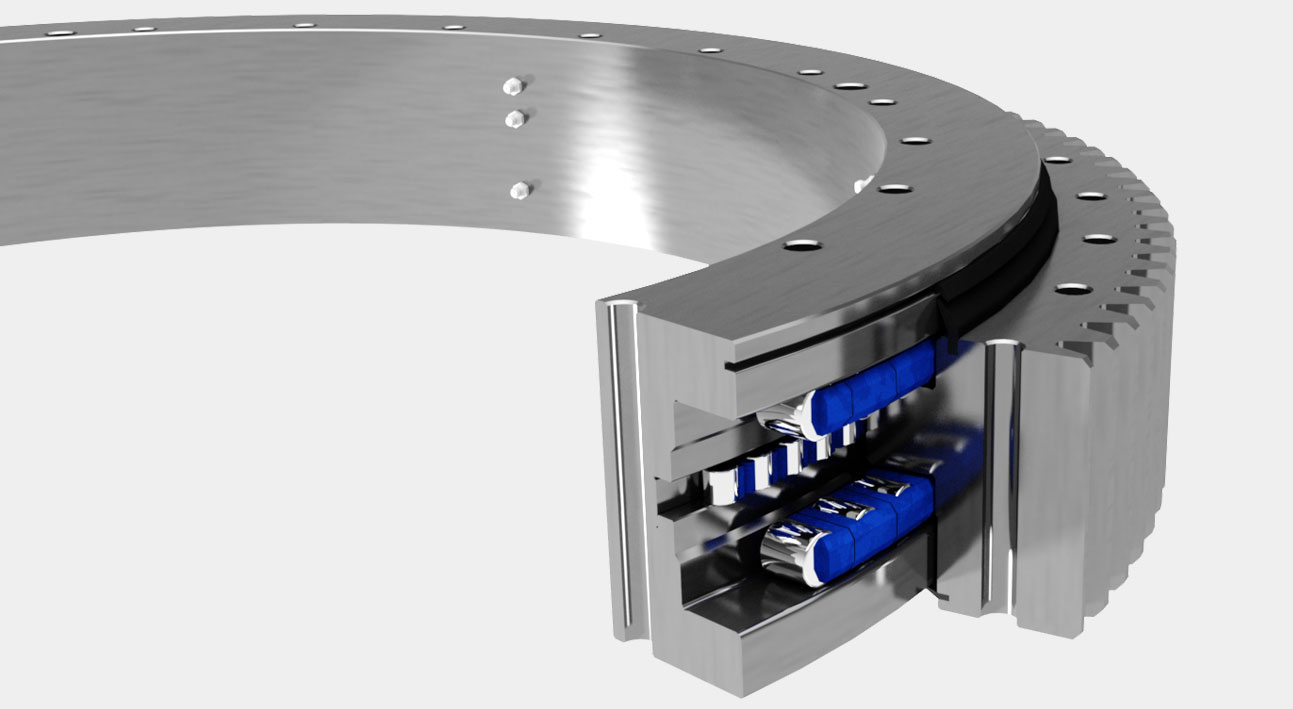

Variant Image

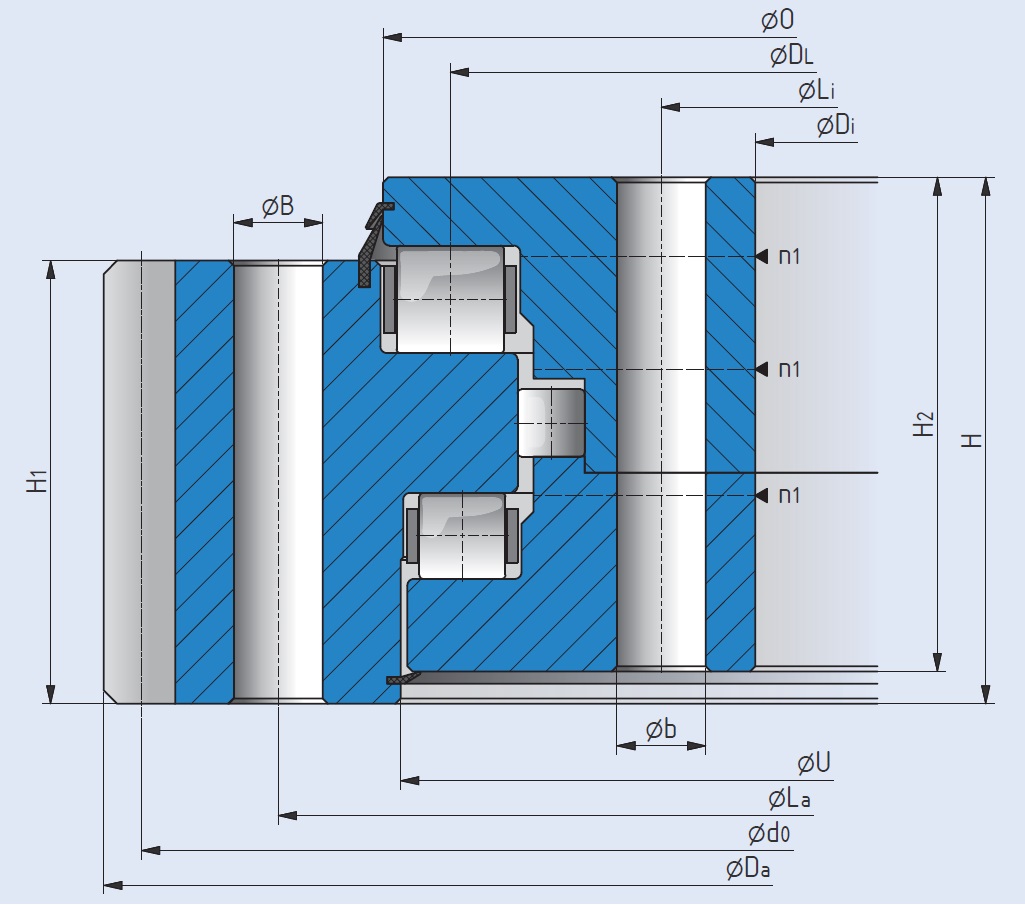

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Outer Diameter | 1397 mm | 5179.2 mm |
| Inner Diameter | 1032 mm | 4485 mm |
| Total Height | 132 mm | 268 mm |
| Diameter of Borehole Circle - Outer Ring | 1345 mm | 4950 mm |
| Diameter of Borehole Circle - Inner Ring | 1145 mm | 4575 mm |
Variant Applications
| Machines / Applications |
|---|
| Construction Equipment |
| Tunnel Boring Machines |
| Wind Turbine |
| Still Mill and Foundries |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Steel & Aluminium Manufacturer |
| Mining |
| Marine Industry |
R3 Series
DV-B R3 Series bearings are Roller Slewing Bearings with three roller raceways. These bearings have highest static and dynamic load capacity. They are used in confined spaces confirming high stiffness and uniform rotational resistance. There are two types based on the type of gear i.e. with external gear and with internal gear.

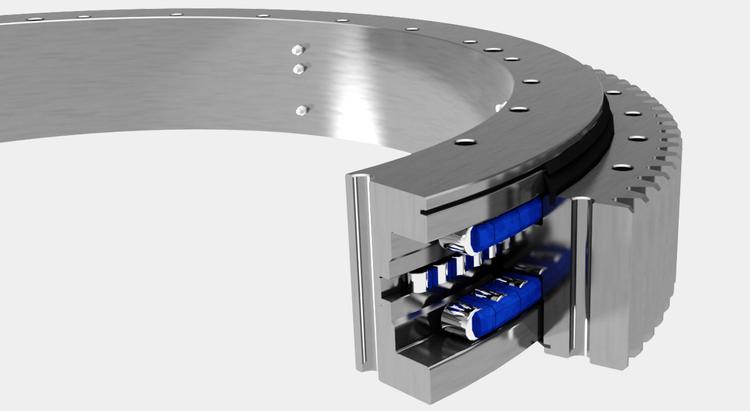

Variant Image
