Series F14
Series F14 is used for stepper and small servo motors. It has upto 5000 PPR resolution for smooth and low speed motor control.

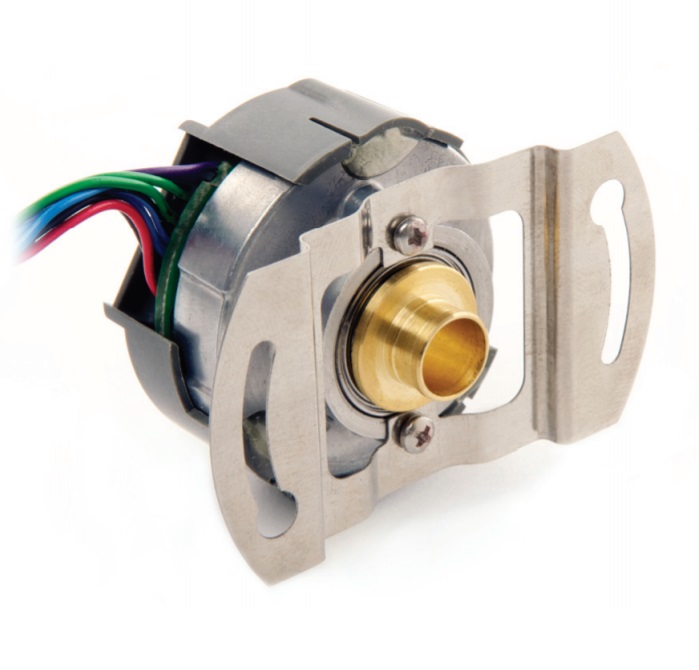

Variant Image

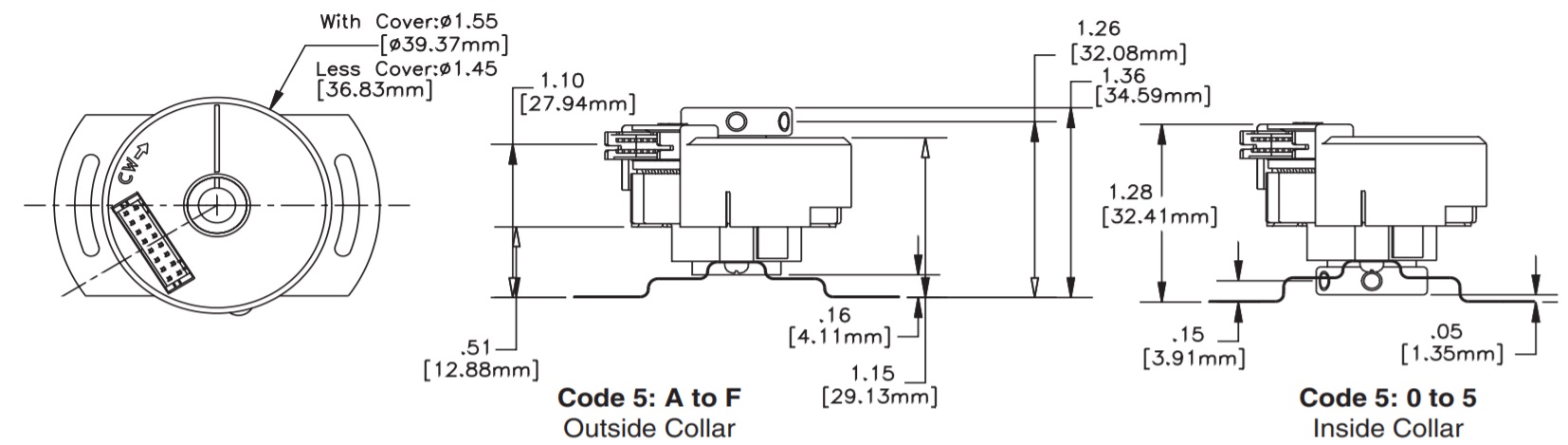

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/4 inch | 8 mm |
| Input Voltage | 5 VDC | |
| Revolutions | 1000 PPR | 5000 PPR |
| Temperature | 0 °C | 120 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
