Series F15
Series F15 is a digital encoder for stepper and small servo motors. It has superior +/-2.5° Arc-Min Accuracy.

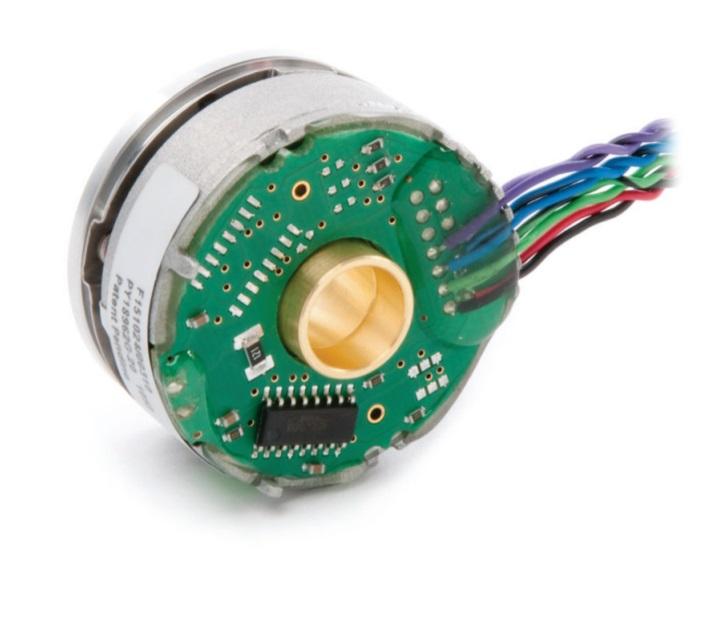

Variant Image

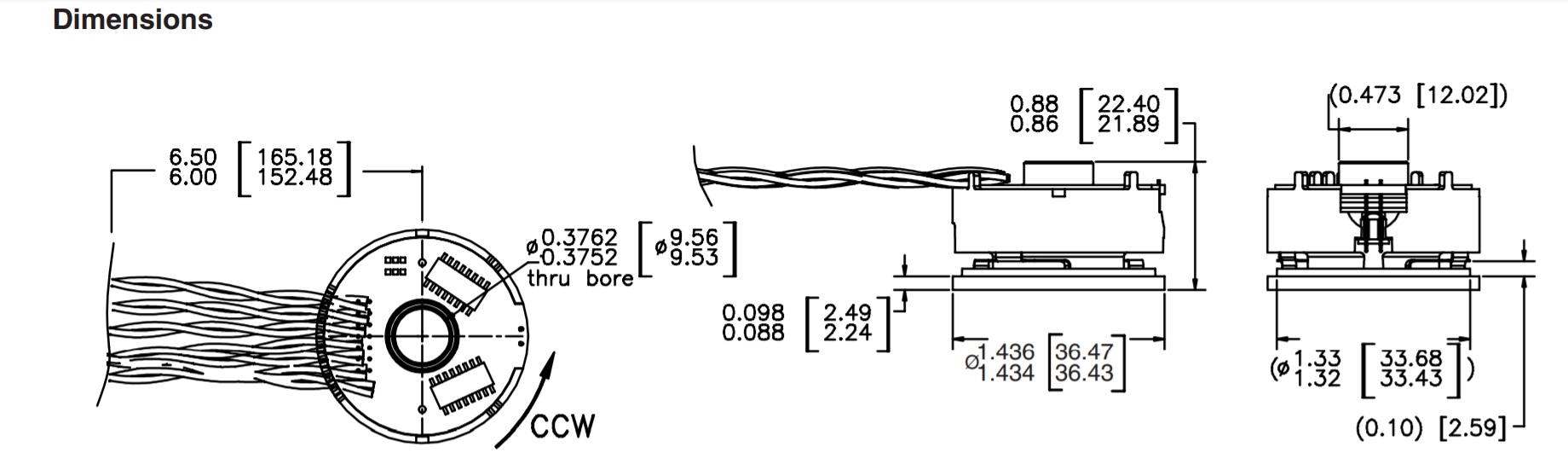

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 3/8 inch | |
| Input Voltage | 5 VDC | |
| Revolutions | 1024 PPR | 2048 PPR |
| Temperature | 0 °C | 120 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
