Series H20 Hub-Shaft
Series H20 Hub-Shaft encoder comes with industry standard 2.0 inch size. It has IP66 sealing option.

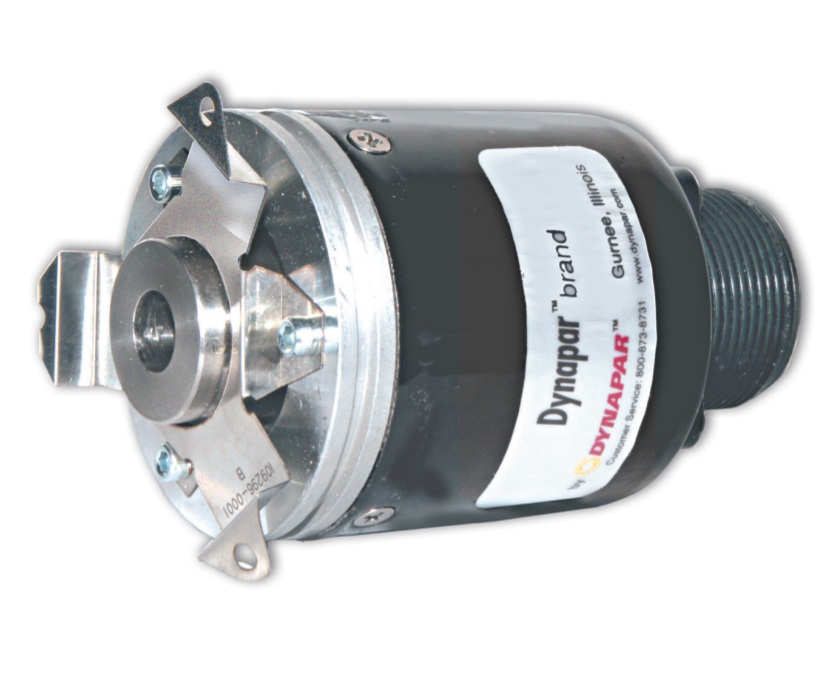

Variant Image

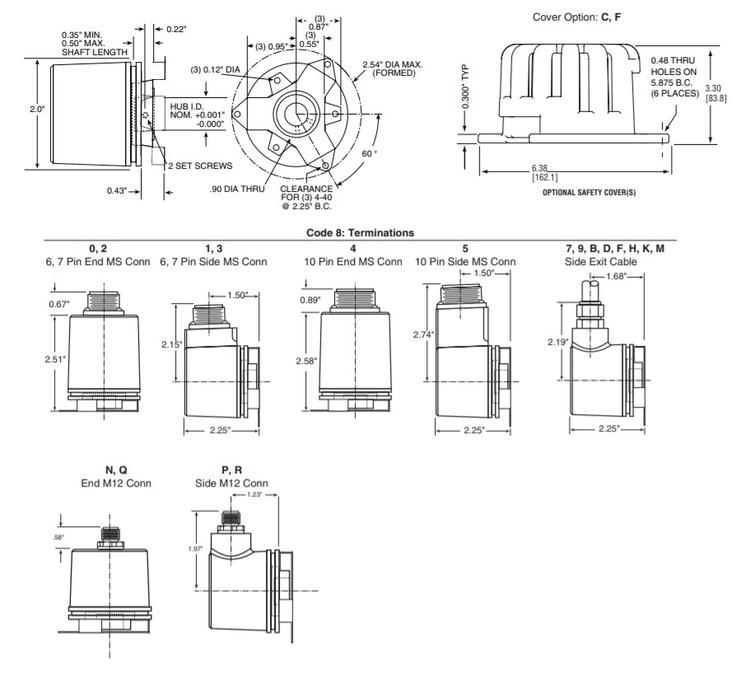

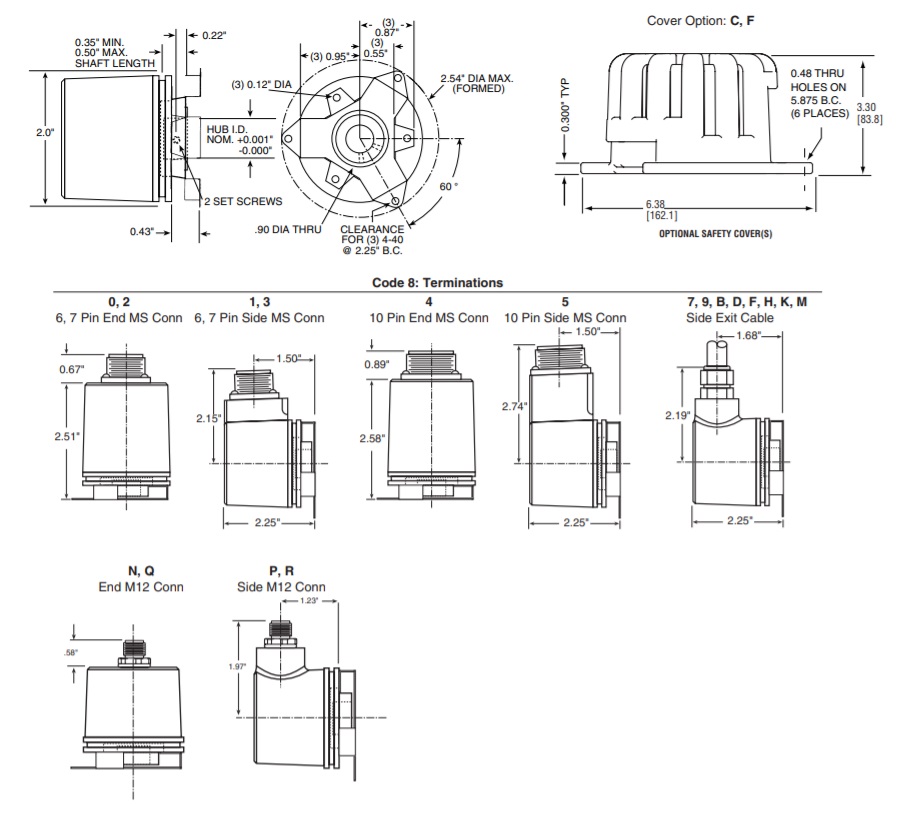

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/4 inch | 5/8 inch |
| Input Voltage | 5 VDC | 26 VDC |
| Revolutions | 1 PPR | 2540 PPR |
| Temperature | 0 °C | 70 °C |
Variant Applications
| Machines / Applications |
|---|
| Coil Tubing |
| Propulsion Systems |
| Bottling Machines |
| Coal Dust Environments |
| Winch |
| Industries |
|---|
| Oil, Gas Exploration & Refinery |
| Food and Beverage Industry |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
| Mining |
