NEXGen Series 22
NEXGen Series 22 is a square encoder with upto 3600 PPR. It has unbreakable code disc and IP67 sealing option.

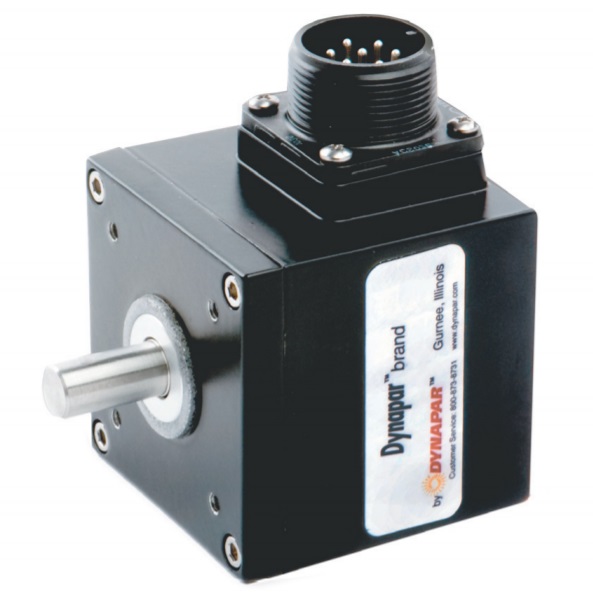

Variant Image

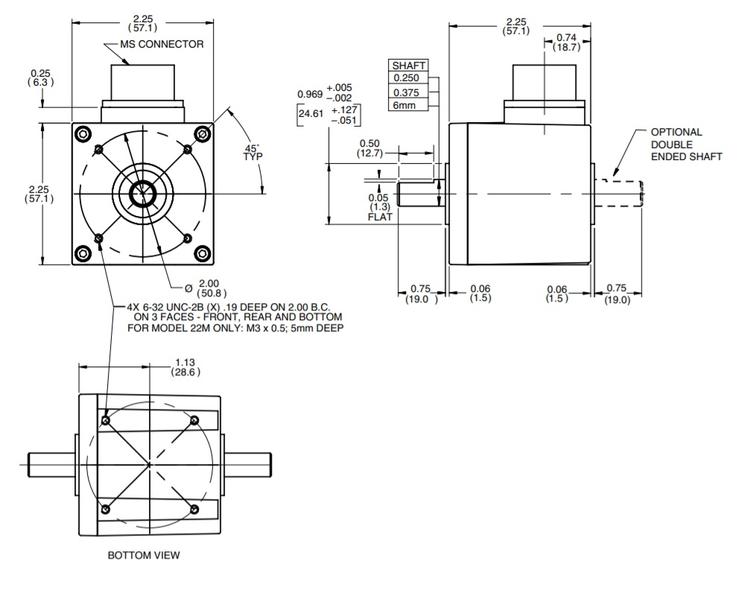

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 6 mm | 3/8 inch |
| Input Voltage | 5 VDC | 26 VDC |
| Revolutions | 1 PPR | 3600 PPR |
| Temperature | -40 °C | 100 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
NEXGen Series 22
NEXGen Series 22 is a square encoder with upto 3600 PPR. It has unbreakable code disc and IP67 sealing option.
Variant Image

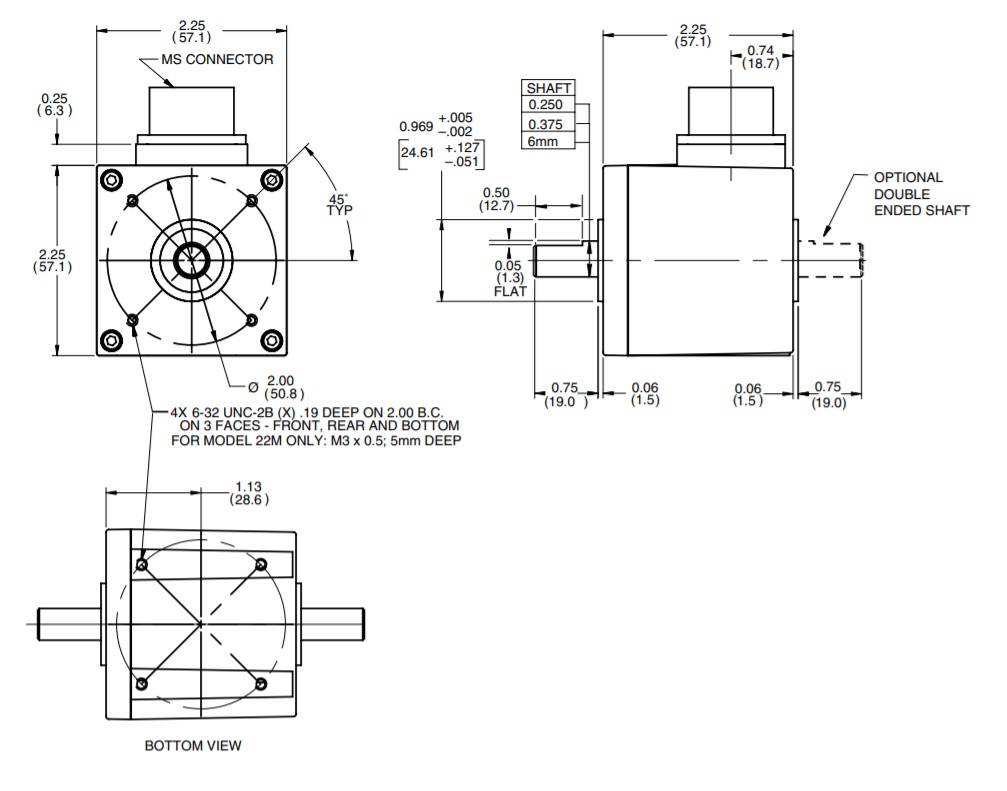

Variant Diagram
