Series E14
Series E14 is a miniature encoder having rugged metal housing. It is available upto 2540 PPR with optional index.

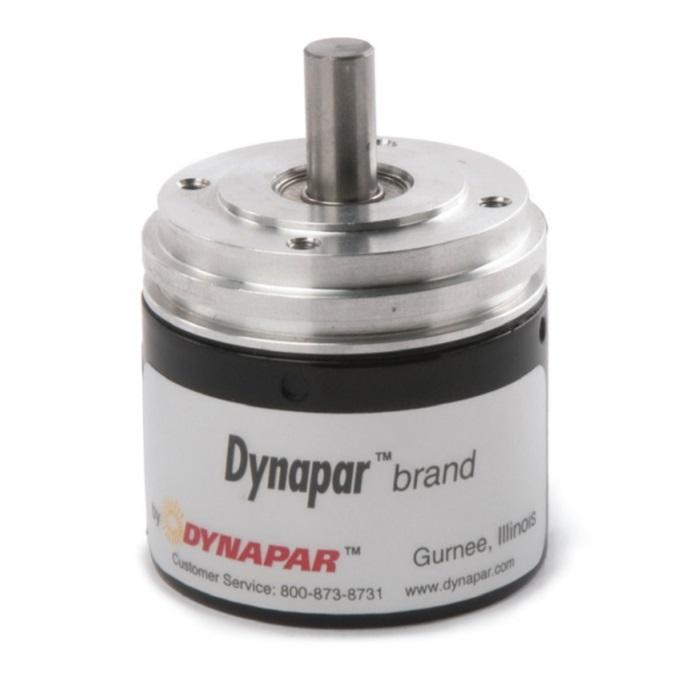

Variant Image

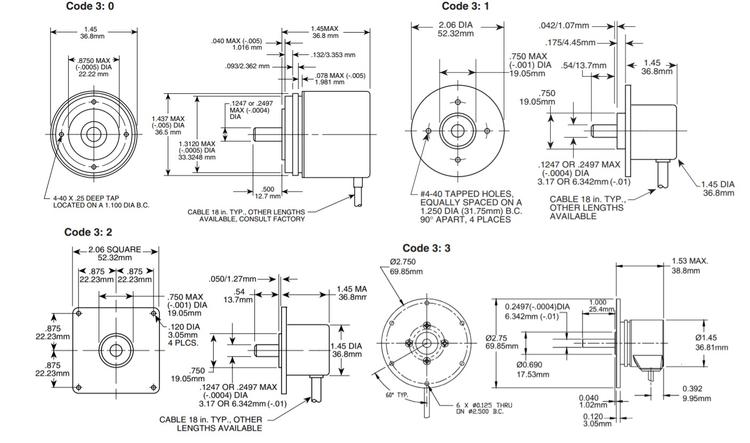

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/8 inch | 1/4 inch |
| Input Voltage | 5 VDC | 15 VDC |
| Revolutions | 100 PPR | 2540 PPR |
| Temperature | 0 °C | 70 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
Series E14
Series E14 is a miniature encoder having rugged metal housing. It is available upto 2540 PPR with optional index.

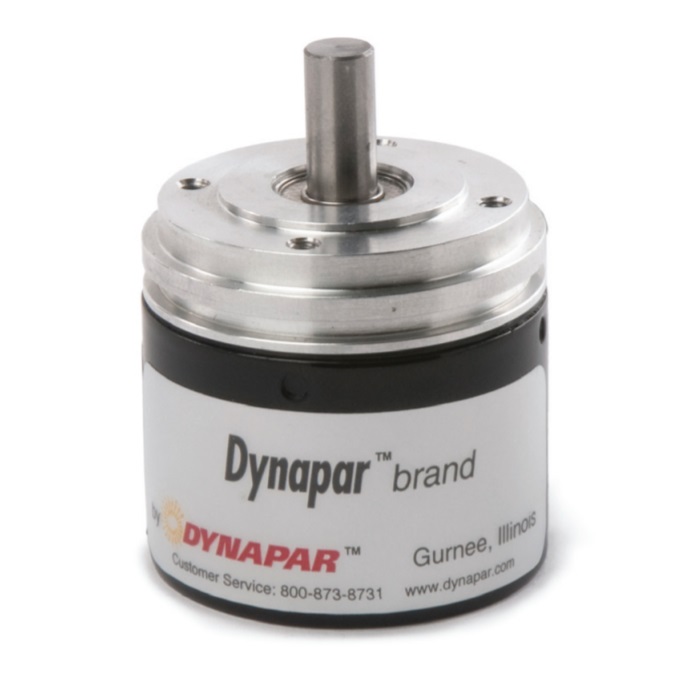

Variant Image

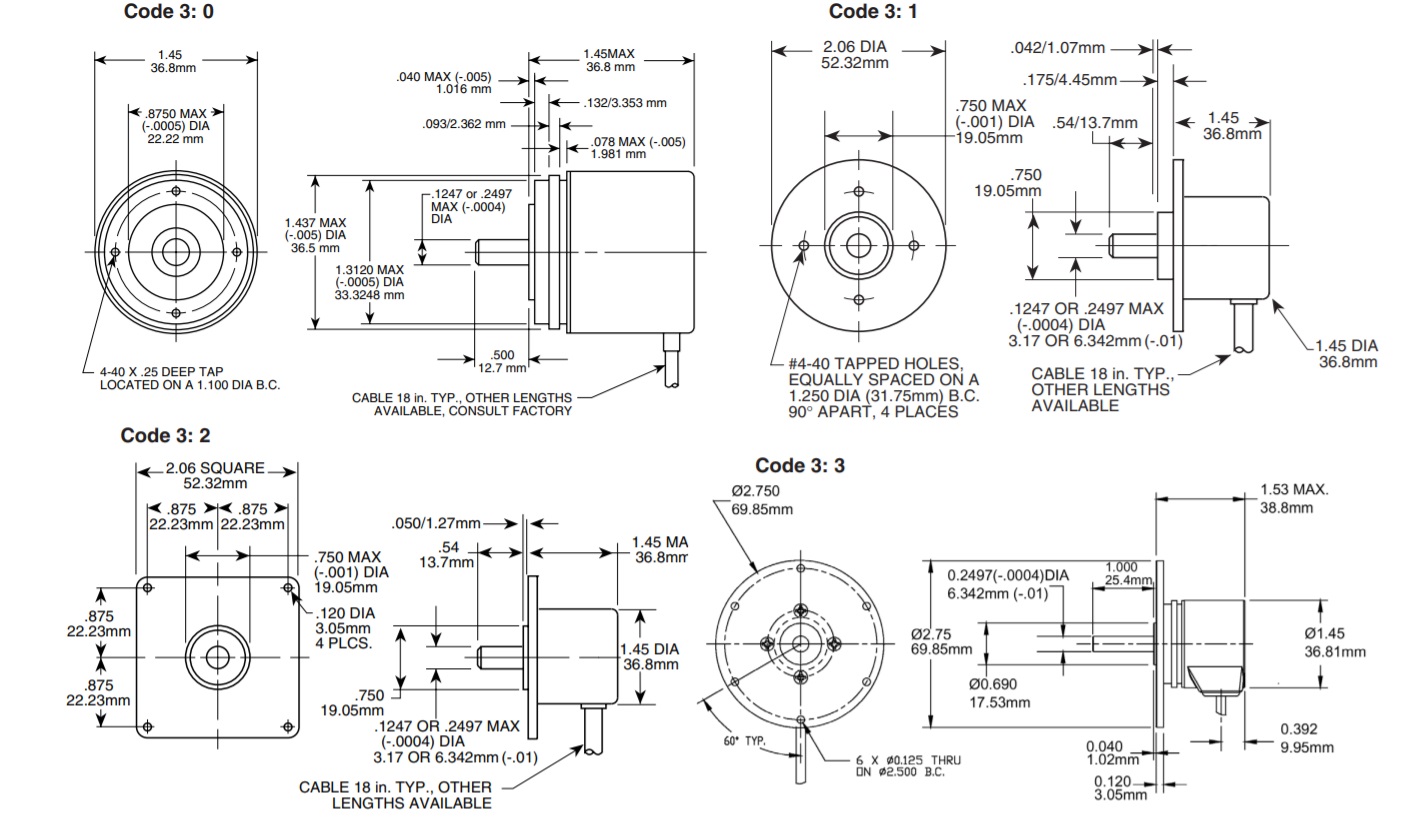

Variant Diagram
