Series E14IC
Series E14IC is a miniature encoder with integrated coupling. It is compatible with NEMA 23 and 24 size motors.

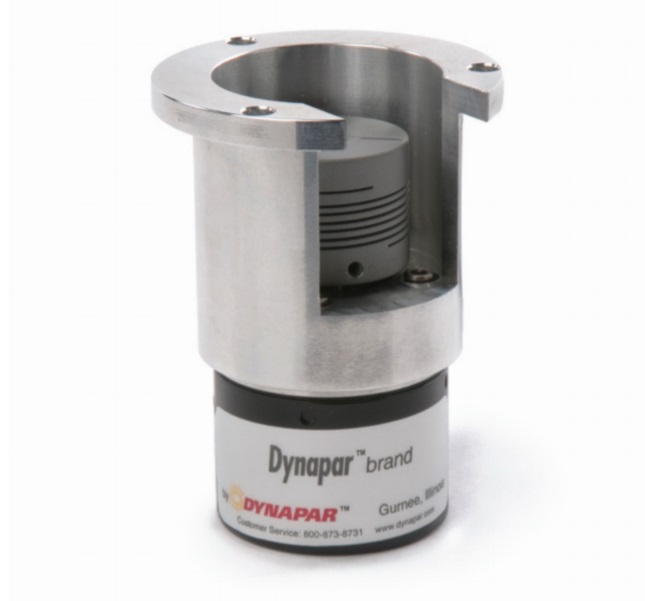

Variant Image

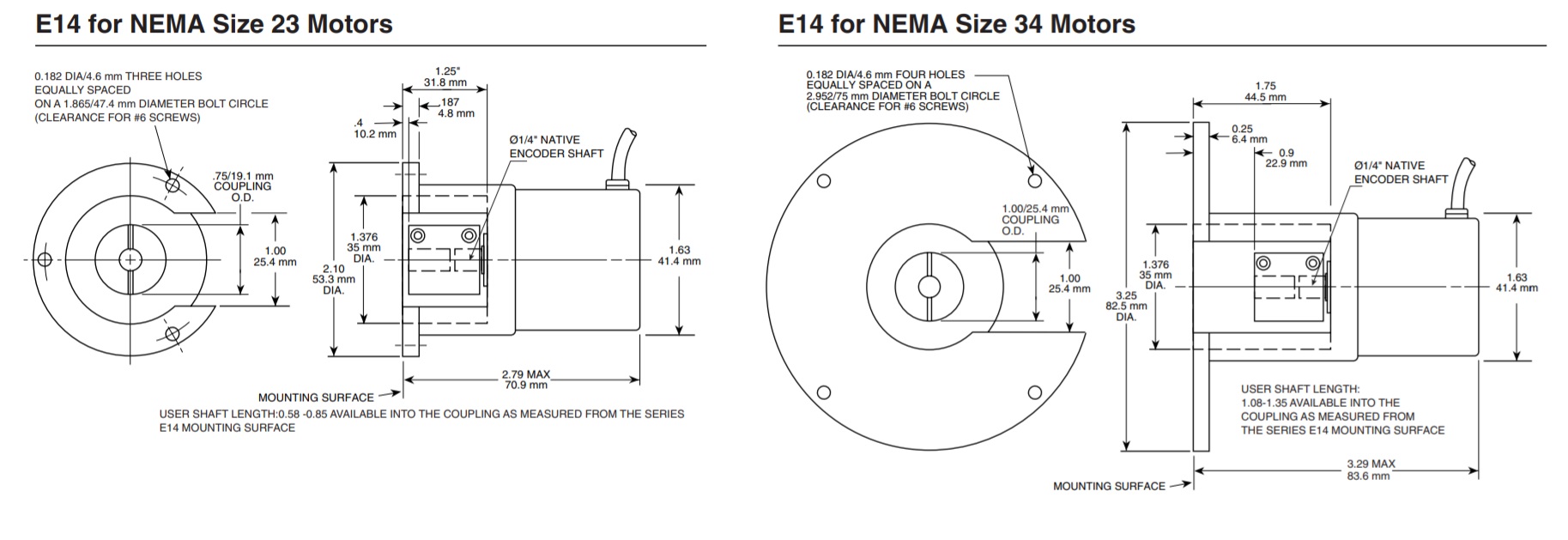

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/4 inch | 3/8 inch |
| Input Voltage | 5 VDC | 15 VDC |
| Revolutions | 100 PPR | 2540 PPR |
| Temperature | 0 °C | 70 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
Series E14IC
Series E14IC is a miniature encoder with integrated coupling. It is compatible with NEMA 23 and 24 size motors.
Variant Image

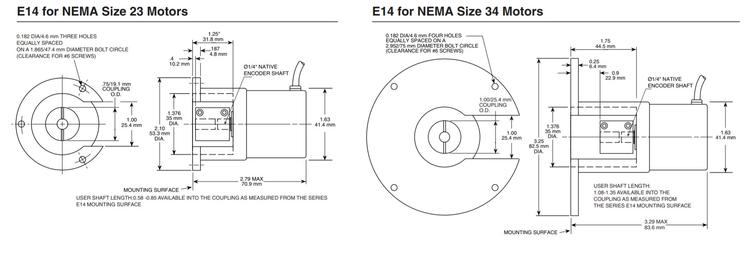

Variant Diagram
