Series E23
Series E23 is a miniature encoder having optional screw terminal connections. It features upto 2540 PPR with optional index.

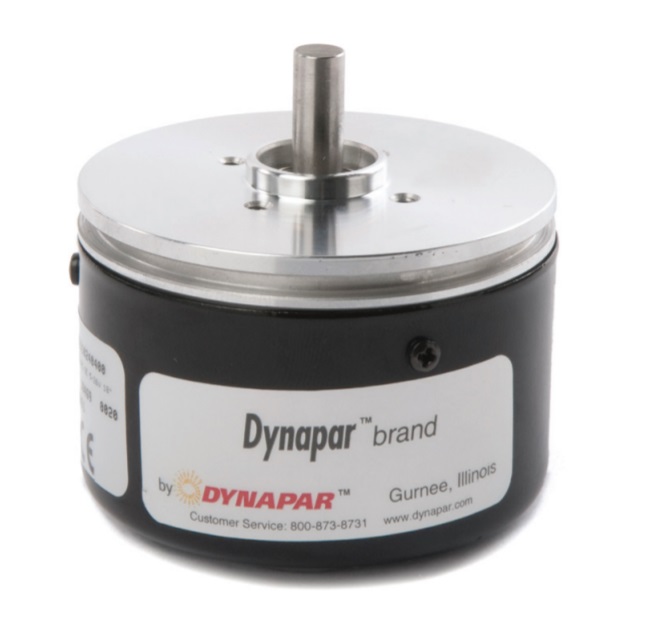

Variant Image

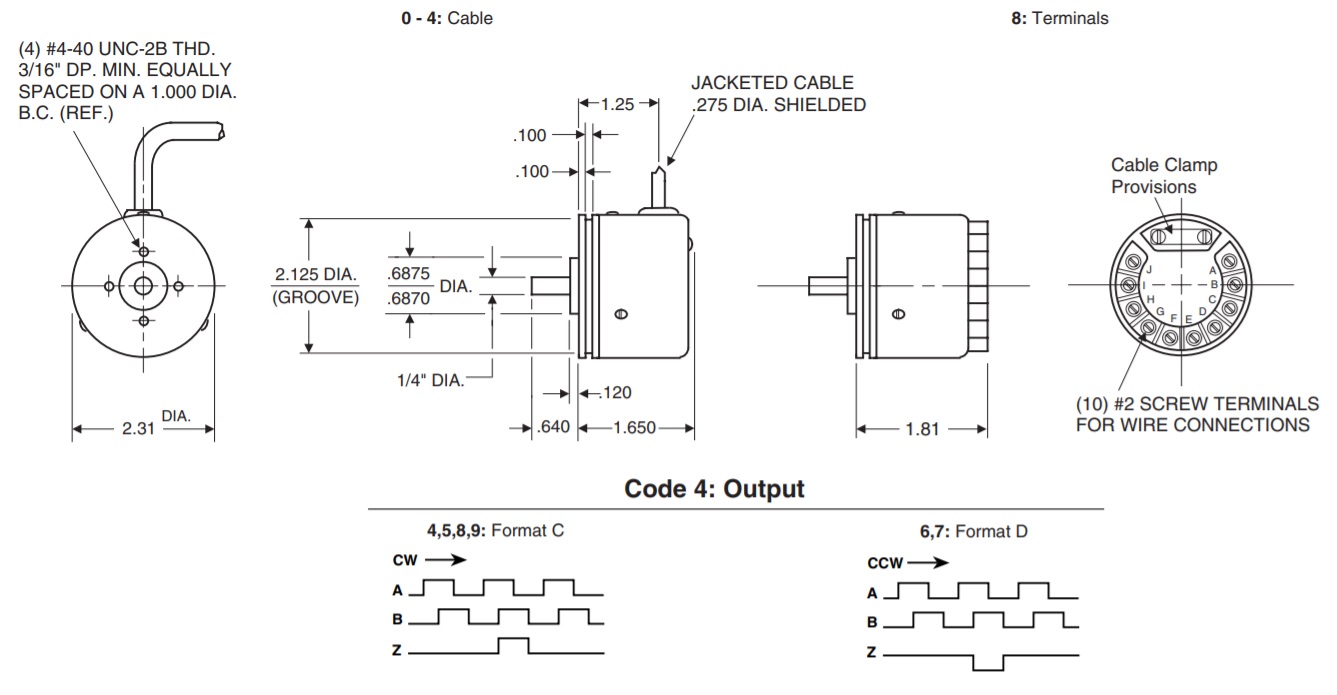

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/4 inch | |
| Input Voltage | 5 VDC | 26 VDC |
| Revolutions | 1 PPR | 2540 PPR |
| Temperature | 0 °C | 70 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
Series E23
Series E23 is a miniature encoder having optional screw terminal connections. It features upto 2540 PPR with optional index.
Variant Image

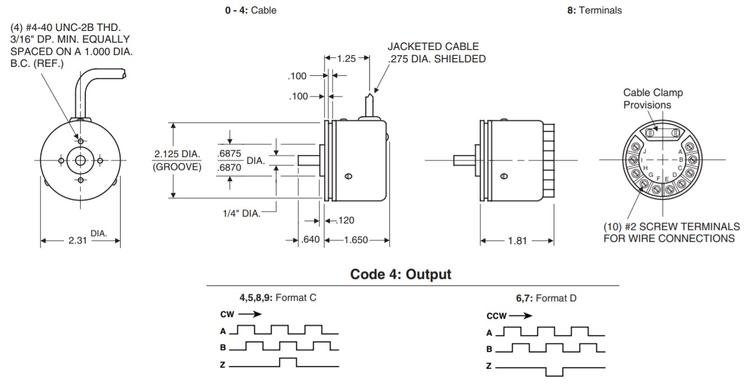

Variant Diagram
