Series M15
Series M15 is a modular encoder for stepper and small servo motors. It has wide range of operating temperature from -20 °C to 120 °C.

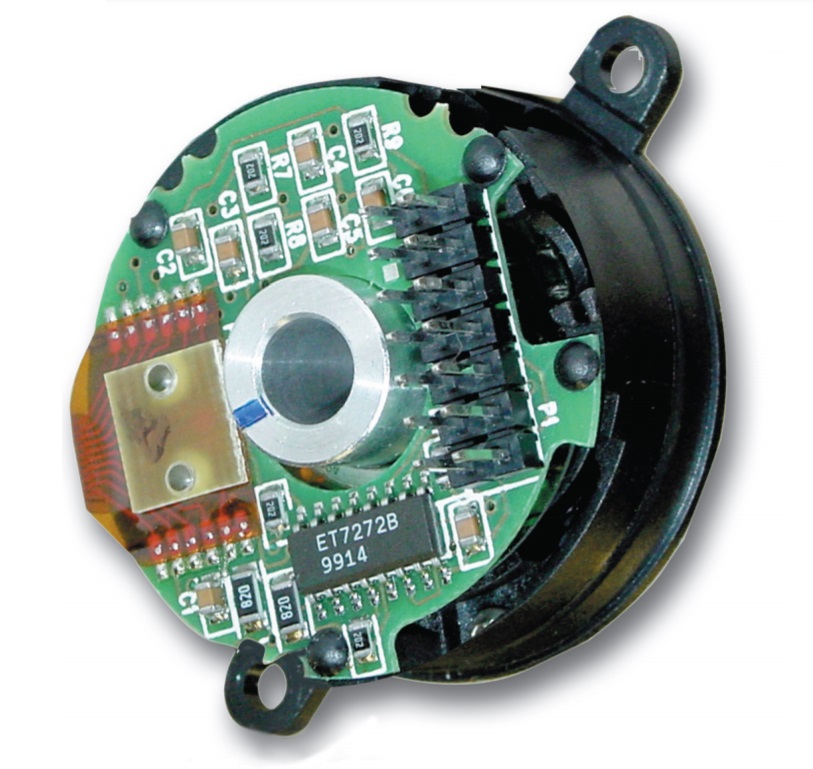

Variant Image

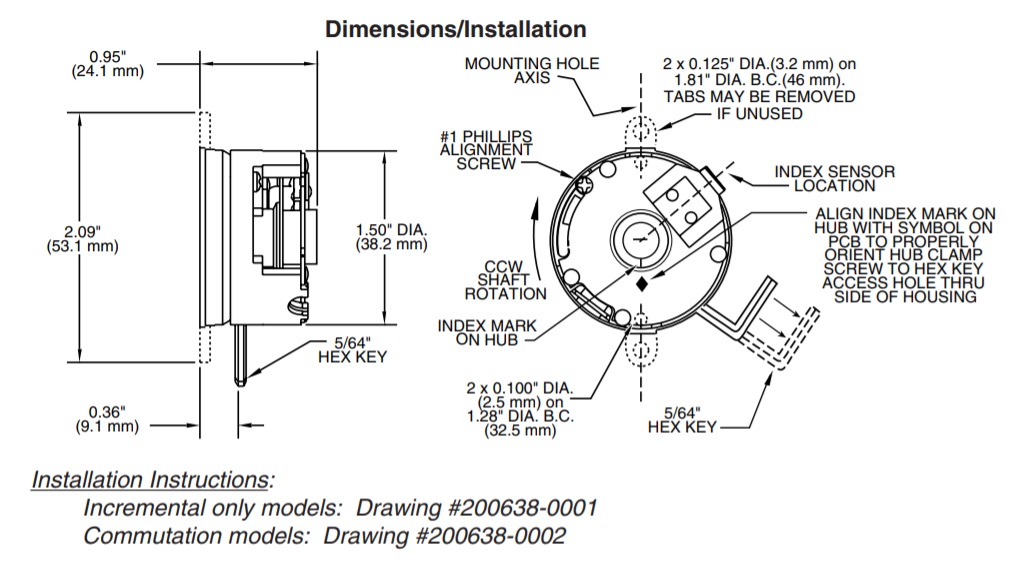

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/8 inch 6 mm | 3/8 inch / 10 mm |
| Input Voltage | 5 VDC | |
| Revolutions | 200 PPR | 1024 PPR |
| Temperature | -20 °C | 120 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacture |
| Paper Manufacturing |
