Series M9
Series M9 is a miniature encoder for small servo and stepper motor feedback. It has integrated ASIC for enhanced reliabilty and accuracy. It has upto 512 PPR resolution.

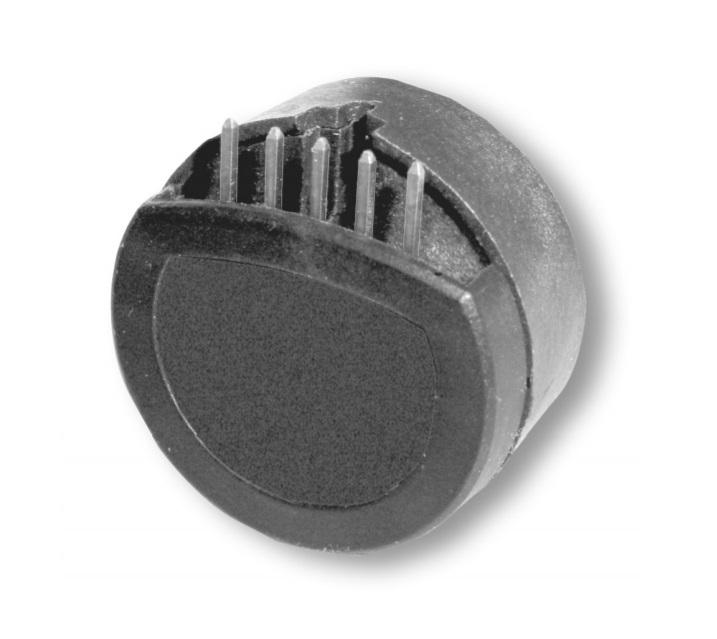

Variant Image

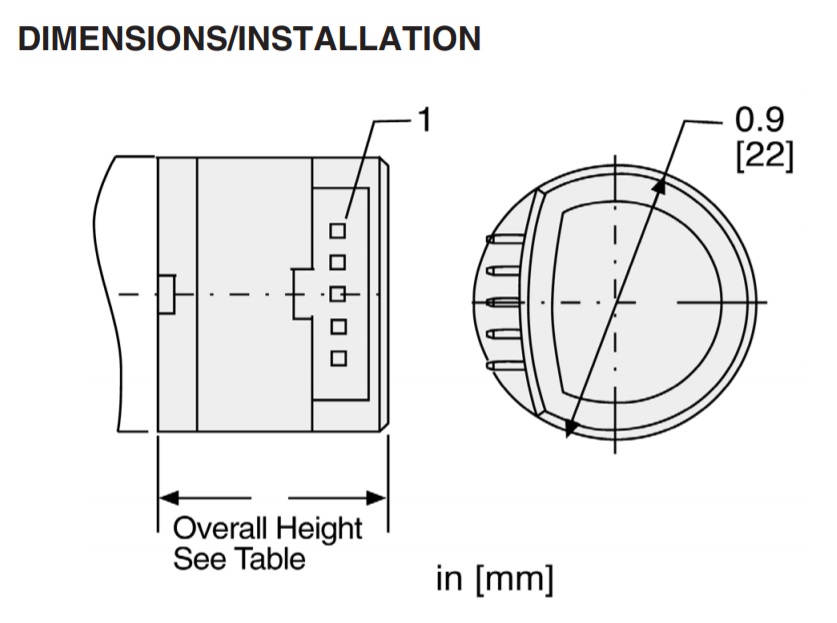

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1.5 mm / 0.125 inch | 4 mm / 0.156 inch |
| Input Voltage | 5 VDC | |
| Revolutions | 100 PPR | 512 PPR |
| Temperature | -20 °C | 100 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
