CASM-100 Actuators
CASM-100 is Suitable for a wide range of applications with different power requirements and operating life. It has High level of flexibility in the mounting cylinders, in place of hydraulic ones. CASM-100 have Standard range, up to 2 meter.

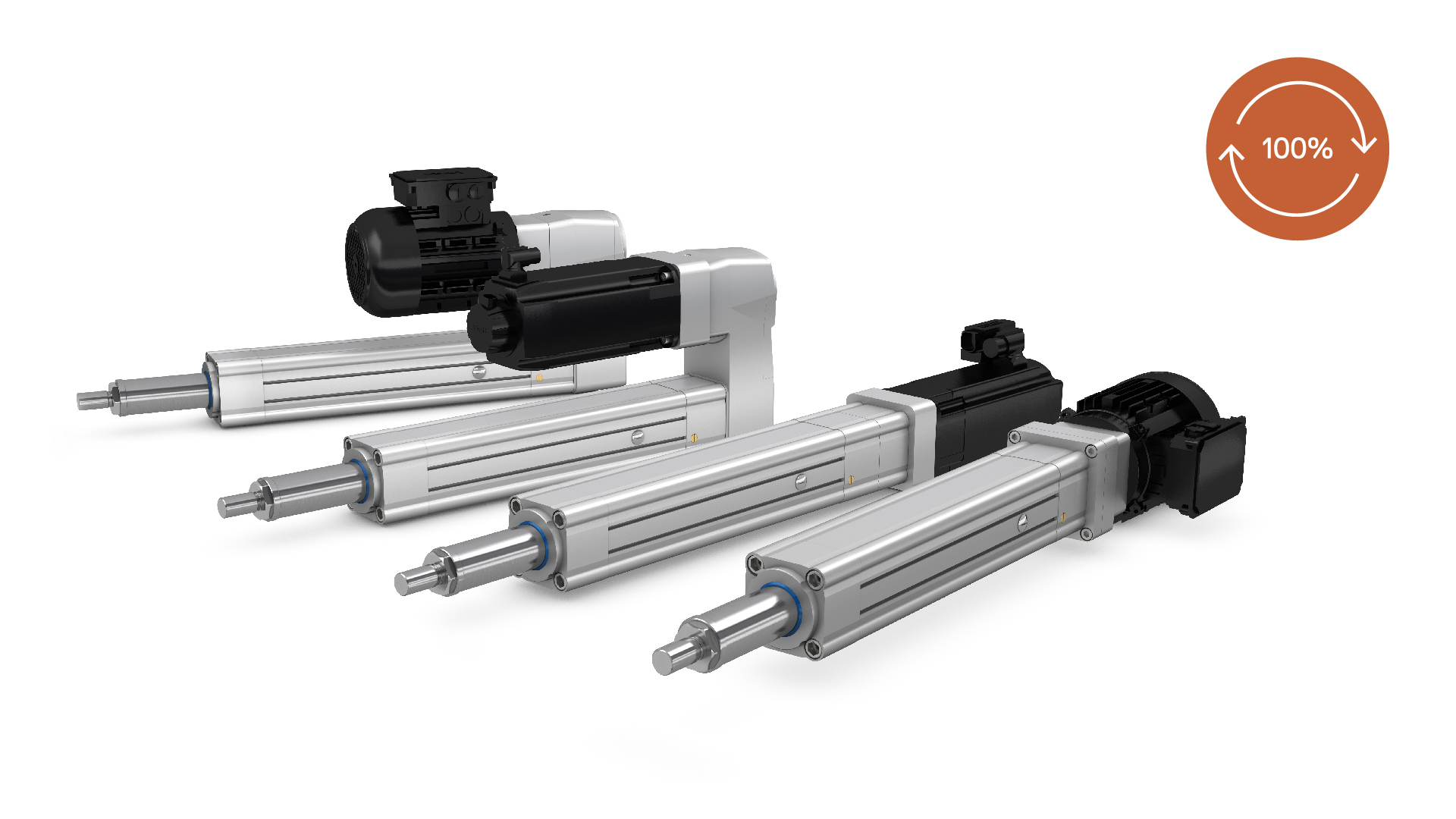

Variant Image

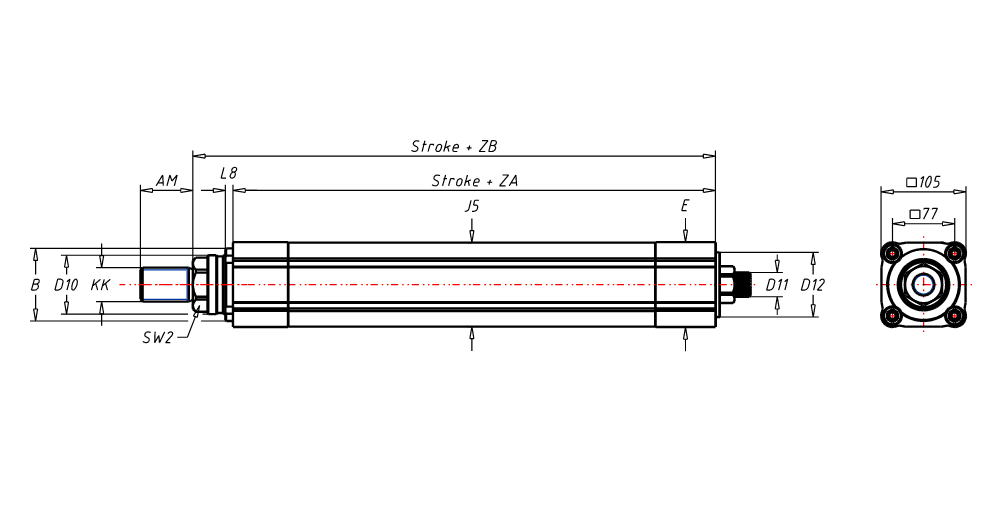

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Max stroke (mm) | 2000 mm | |
| Linear speed no load (mm/s) | 890 mm/s | |
| Dynamic axial force (KN) | 82 KN | |
| Dynamic load capacity (KN) | 106 KN | |
| Duty cycle (%) | 100% |
Variant Applications
| Machines / Applications |
|---|
| Blow Moulding |
| Servo Press |
| Filling Machine |
| Excavator |
| Scissor Lifts |
| Fork Lifts |
| Pallet Truck |
| Industries |
|---|
| Assembly Automation |
| Medical Industry |
| Mobile Machinery |
| General Industry |
