CASM-25 Actuator
The CASM-25 actuator is a customized-design solution for
small automation applications and electronic production
industry. This miniature actuator can deliver high static as well
dynamic force with precise movement and long working life.
The Ewellix solution is based on the high accuracy of the ball screw SD8 ×2,5, with a full aluminum body, which leads to a very compact package with a high power density.

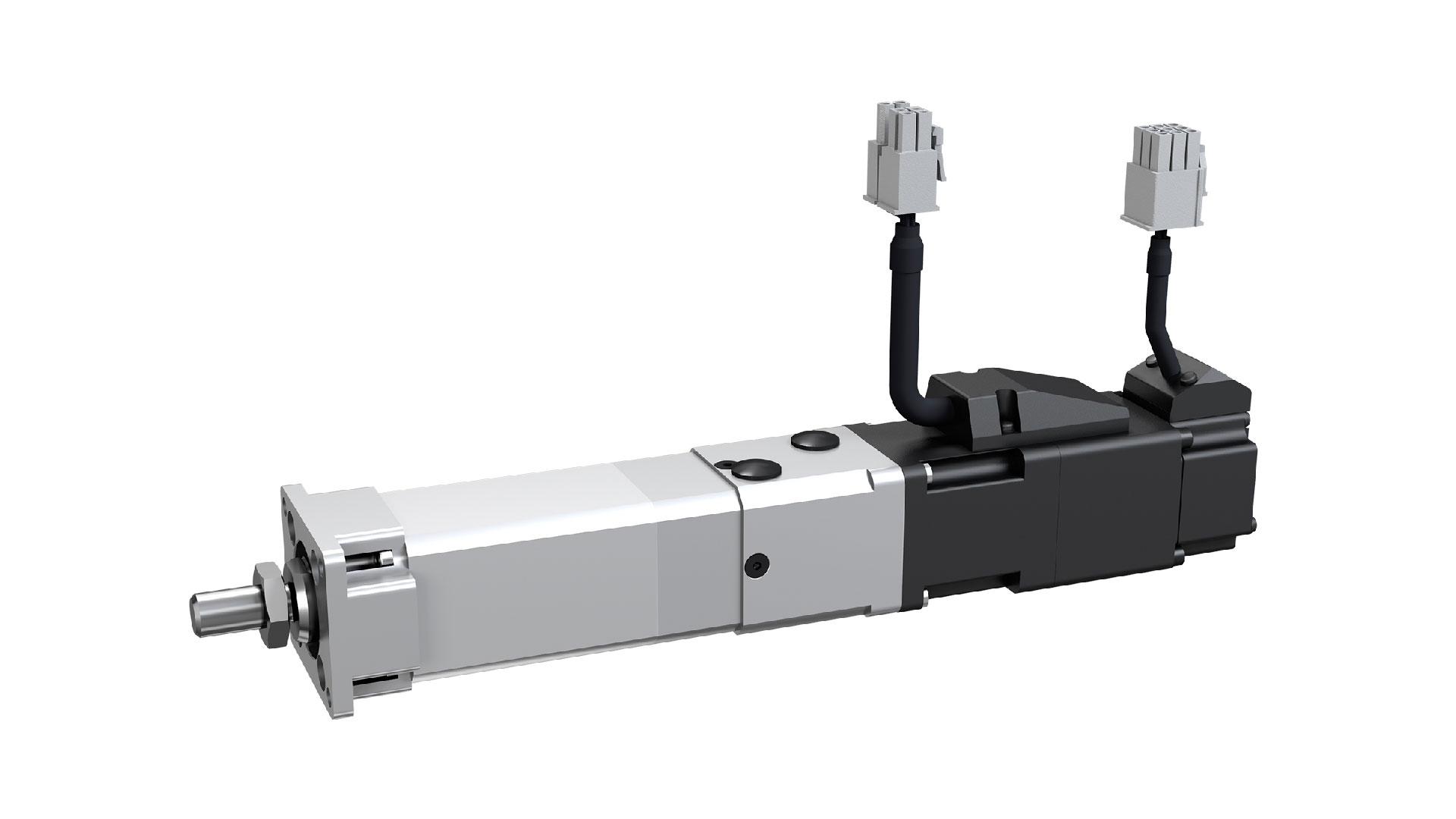

Variant Image

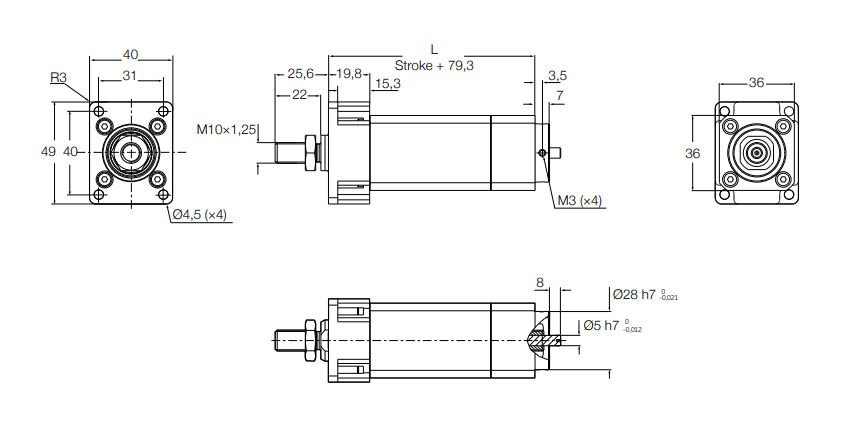

Variant Diagram

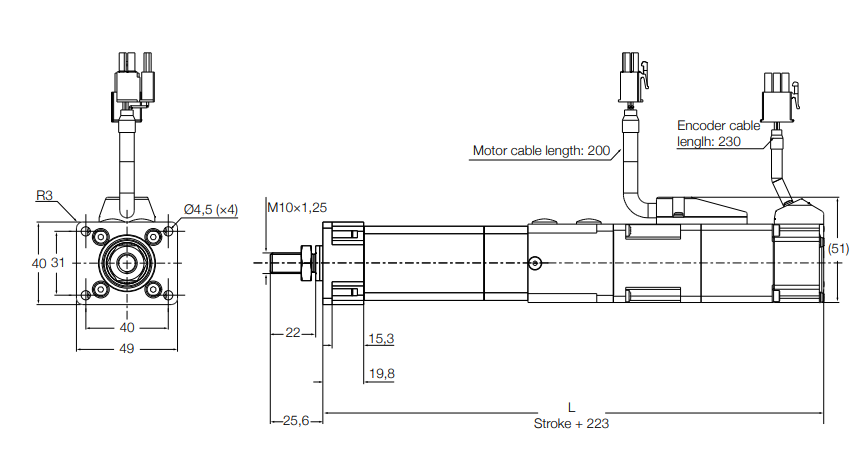

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Max stroke (mm) | 50 mm | |
| Linear speed no load (mm/s) | 125 mm/s | |
| Dynamic axial force (KN) | 0.3 KN | |
| Dynamic load capacity (KN) | 2.042 KN | |
| Duty cycle (%) | 100% |
Variant Applications
| Machines / Applications |
|---|
| Blow Moulding |
| Servo Press |
| Dispensing |
| Industries |
|---|
| Assembly Automation |
| Medical Industry |
| Mobile Machinery |
| General Industry |
