Lifting columns TLT
The TLT series offers very compact, fast and powerful lifting columns with two DC motors for pressure load of up to 4,000 N. Its very small size ensures a good balance between reversed length and maximum stroke. They are ideal for medical, industrial and workplace applications and can lift off-center loads in the middle without bending due to their solid aluminum profiles and precise sliding pads. Unique and efficient gear technology allows for high compression load capacity and smooth operation.

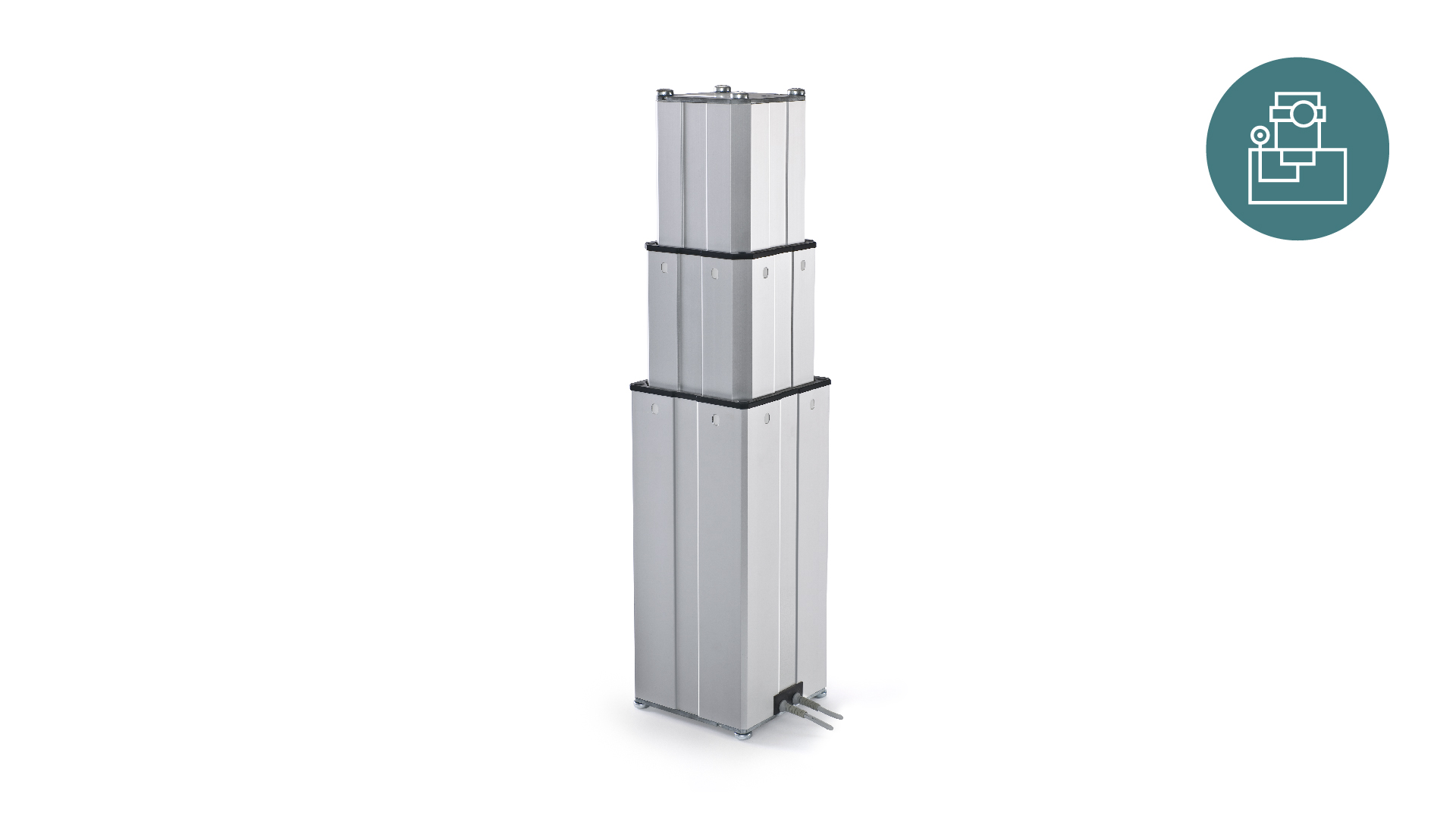

Variant Image

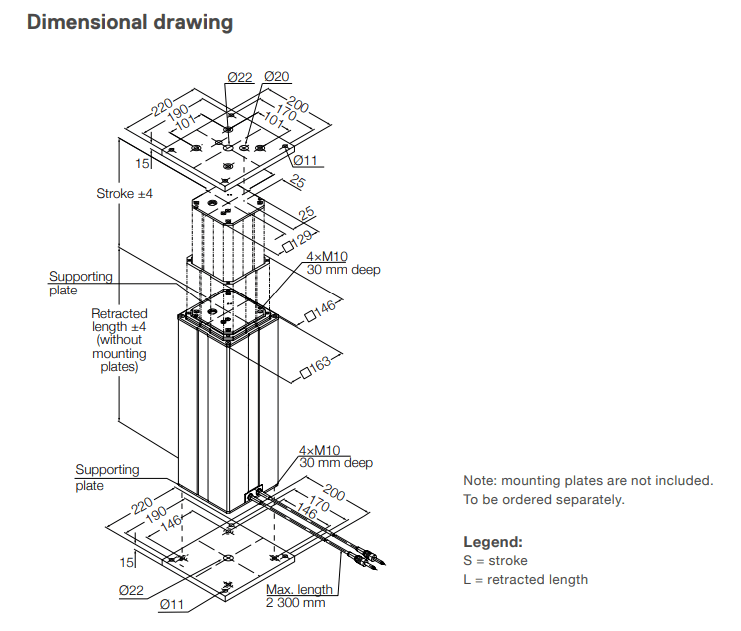

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Push load | 4000 N | |
| Stroke (mm) | 300 mm | 700 mm |
| Linear speed no load (mm/s) | 25 mm/s | |
| Duty cycle (%) | 10% | |
| Dynamic offset load | 1000 Nm |
Variant Applications
| Machines / Applications |
|---|
| Pallet Lifting |
| Cobot Transfer (Material Pick and Place) |
| Surgical Table |
| Physiotherapy devices |
| Mammography |
| Industries |
|---|
| Medical |
| Automation |
| Material Handling |
| Robotics |
