CAT, CAR & CAP series linear Actuators
The modular CAT/CAR/CAP concept simplifies the replacement of critical components such as motors, gearboxes, spindles, fasteners, etc. Custom linear actuators can be easily and cost-effectively assembled from standard components. The CAT series is flexible and suitable for countless applications.

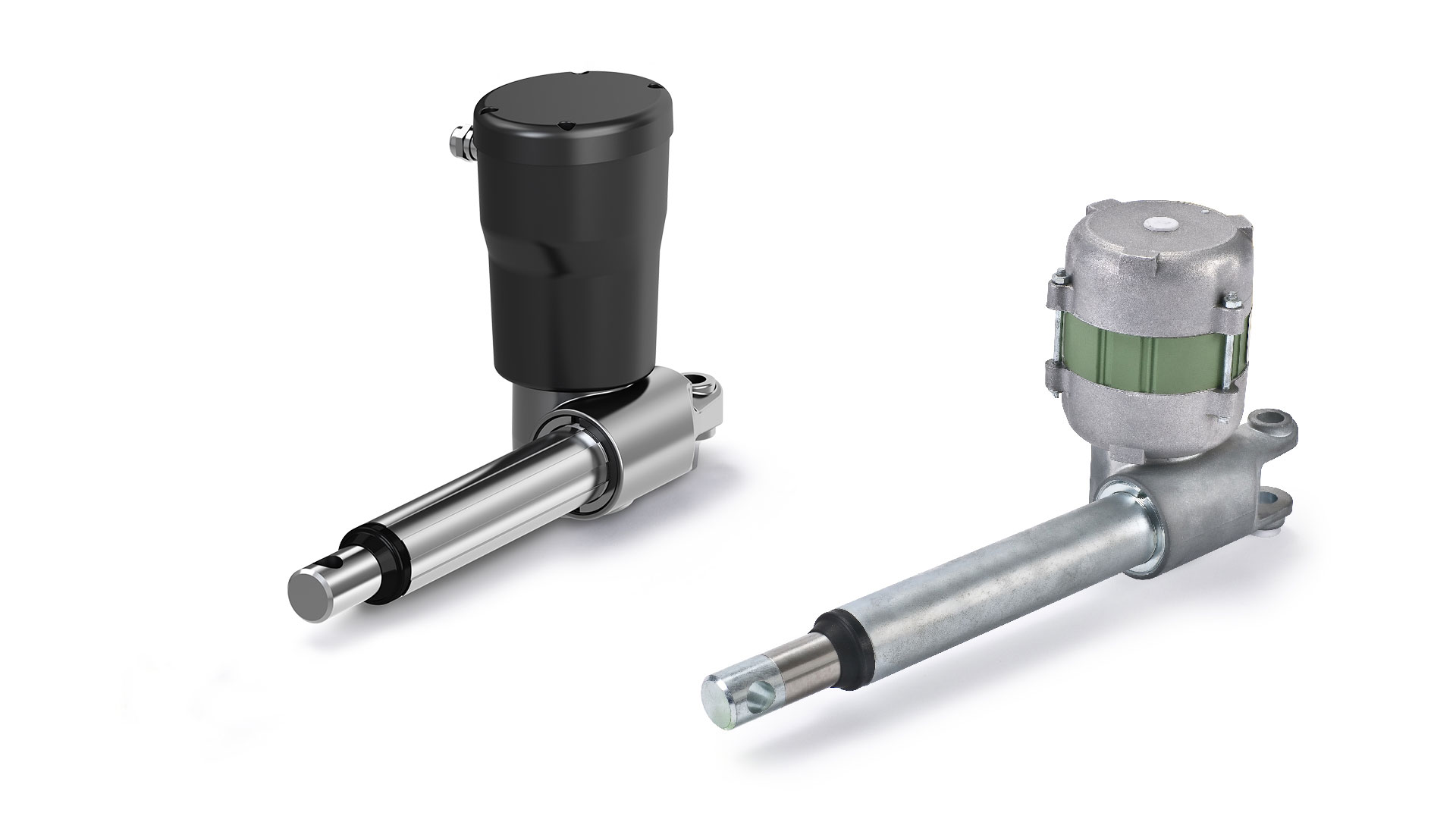

Variant Image

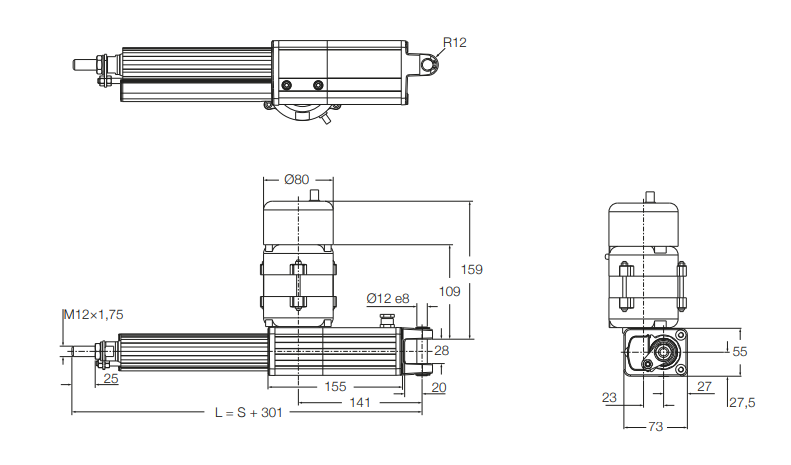

Variant Diagram

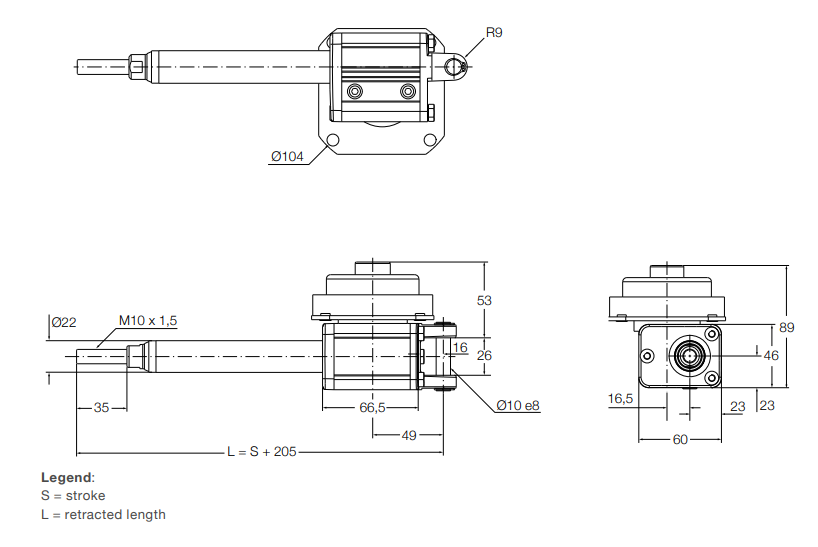

Variant Diagram

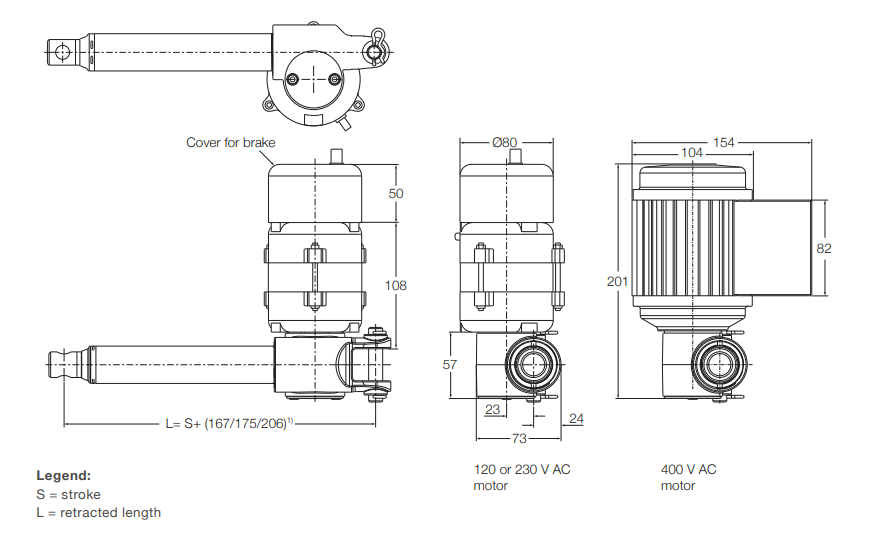

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Push load (N) | 6000 | |
| Pull load (N) | 6000 | |
| Max stroke (mm) | 700 | |
| speed Full load (mm/s) | 52 | |
| Max speed No Load (mm/s) | 10 | 193 |
| Duty cycle (%) | 15 | 40 |
Variant Applications
| Machines / Applications |
|---|
| Surgical Table |
| AGV (Automated Guided Vehicles) |
| Fertilizer Spreader |
| Industries |
|---|
| Assembly Automation |
| Medical Industry |
| Mobile Machinery |
| General Industry |
