Compact inverted roller screws
The compact inverted roller screws from Ewellix are a unique variety of the planetary roller screws. Their design provides a powerful electromechanical drive when compactness and high load capacity are required. They offer an excellent combination of high strength, low pitch and high dynamic performance. performance without any compromise. These screws are Compact & light Weight with exceptional sealing performance.

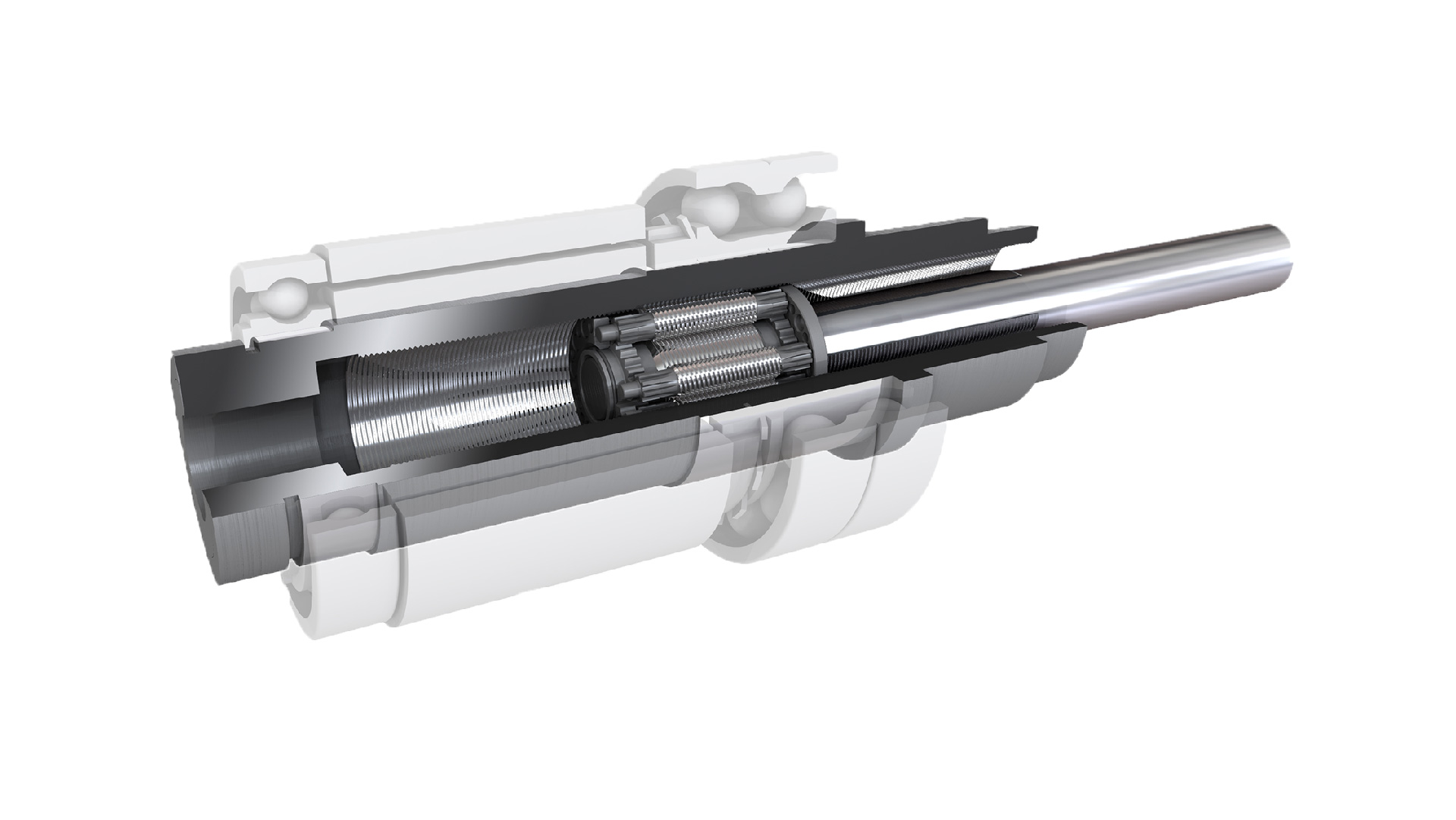

Variant Image

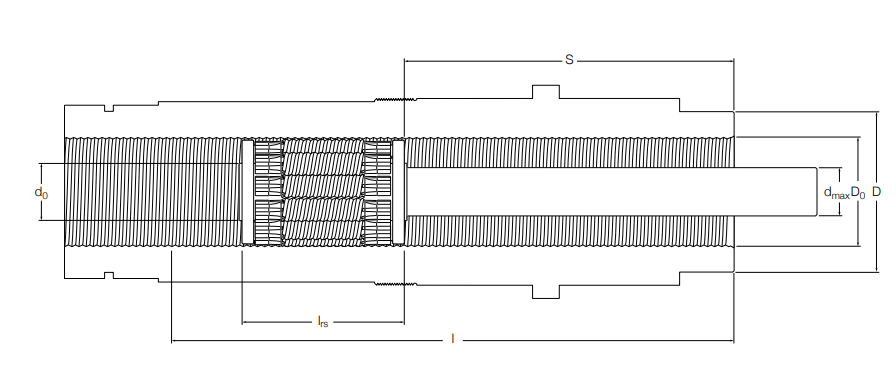

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Nominal diameter | 18 mm | 48 mm |
| Lead | 2.4 mm | 6 mm |
| Basic dynamic load capacity | 259 KN | |
| Basic static load capacity | 559 KN |
Variant Applications
| Machines / Applications |
|---|
| Spot Welding |
| Riveting |
| Press Forming |
| Industries |
|---|
| Assembly Automation |
| Medical Industry |
| Mobile Machinery |
| General Industry |
