Recirculating roller screws
Roller screws with roller recirculation offer an ultra-precise drive solution with perfect combination of high load capacity, the smallest possible pitch for fine resolution, high positioning accuracy and axial rigidity. They have high load capacities & rigidity & Extremely accurate positioning with excellent repeatability.

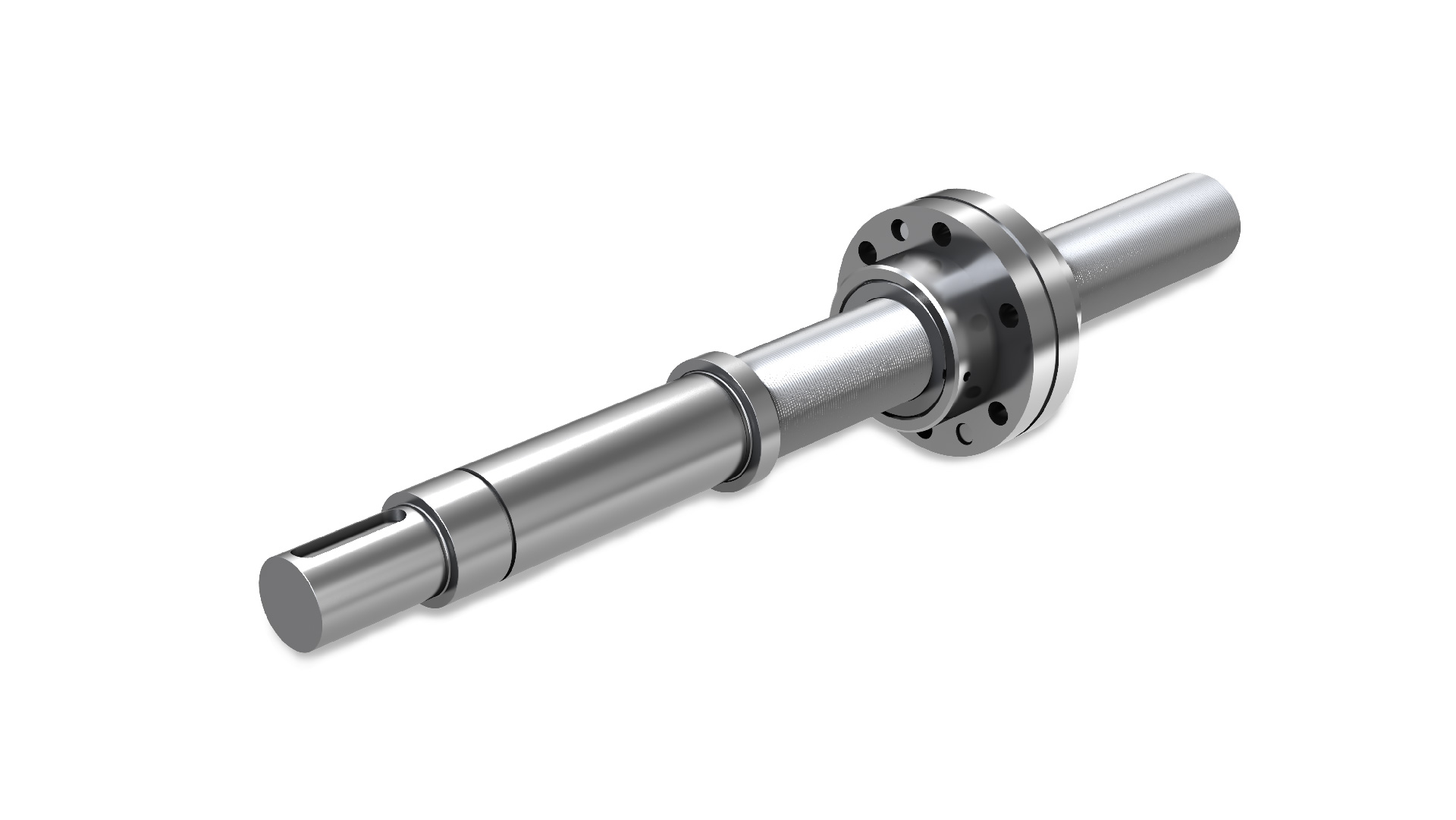

Variant Image

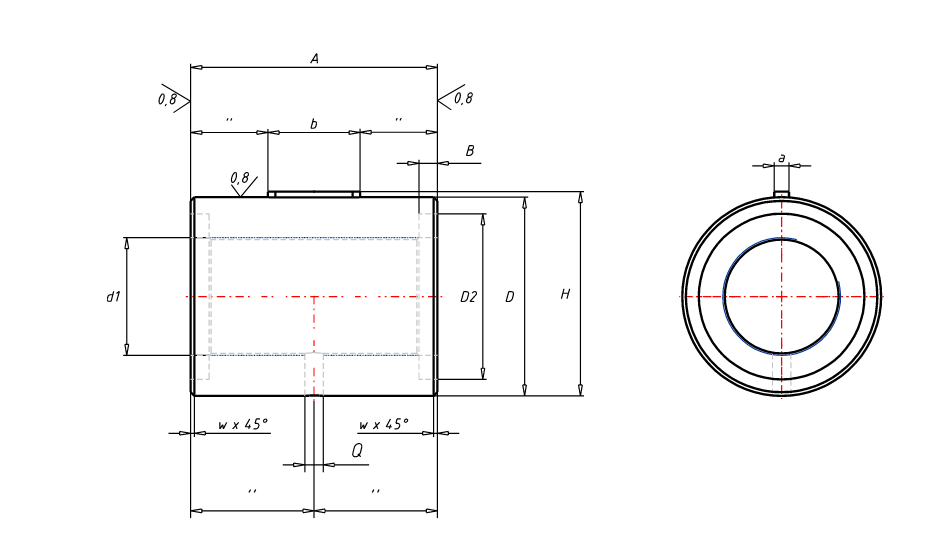

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Nominal diameter | 8 mm | 125 mm |
| Lead | 1 mm | 5 mm |
| Basic dynamic load capacity | 756 KN | |
| Basic static load capacity | 2270 KN |
Variant Applications
| Machines / Applications |
|---|
| Oncology Table |
| Spot Welding |
| Riveting |
| Industries |
|---|
| Assembly Automation |
| Medical Industry |
| Mobile Machinery |
| General Industry |
