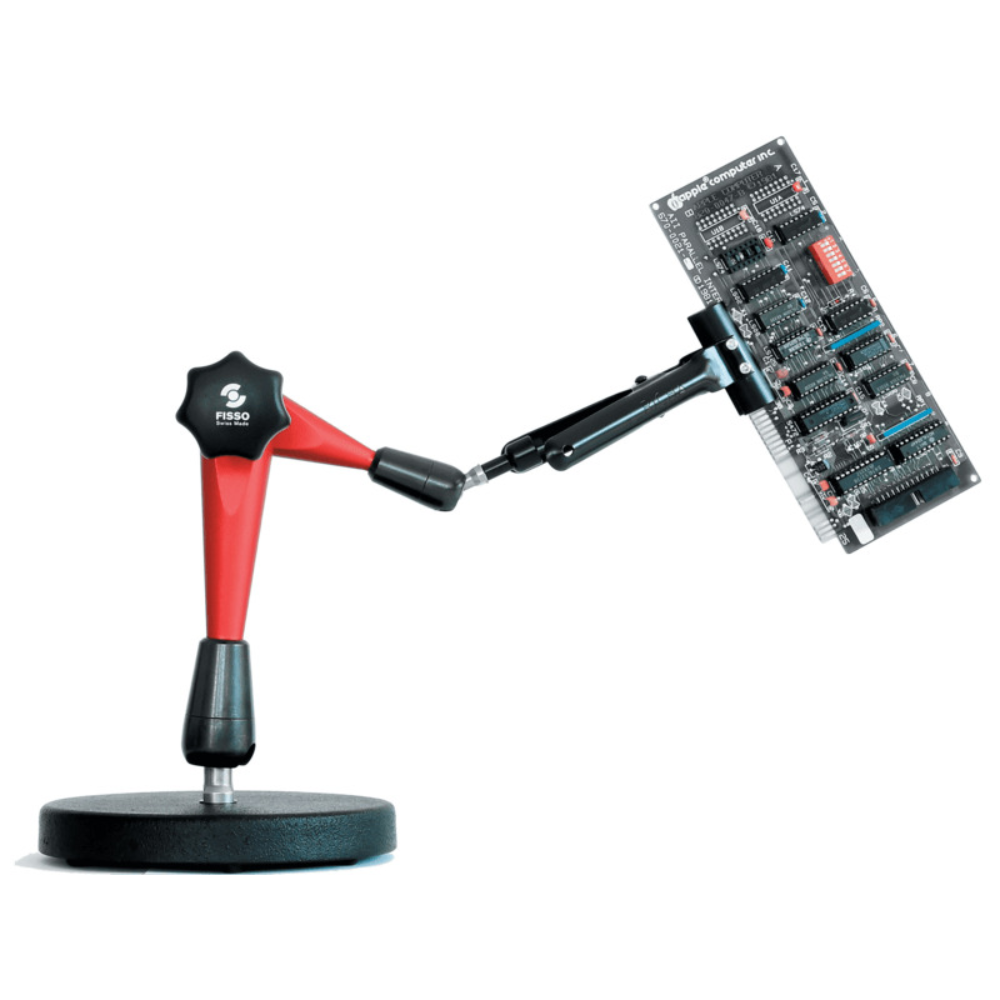

Printed Circuit Board Holder
Secure small parts and PCB’s in spring clamps to keep hands free for soldering, gluing, and assembly. The articulated arms are mounted to a heavy steel base and can be easy adjusted for positioning work at any angle.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Quick clamp with plastic jaws | - | - |
| Articulated arm mm | - | 280 mm |
| Steel base Ø mm | - | 150 mm |
Variant Applications
| Machines / Applications |
|---|
| PCB assembly and repair |
| Inspection and testing of PCBs |
| Prototyping and development of PCBs |
| Rework and modification of PCBs |
| Industries |
|---|
| Electronics manufacturing |
| Semiconductor industry |
| Aerospace and defense |
| Medical devices |
