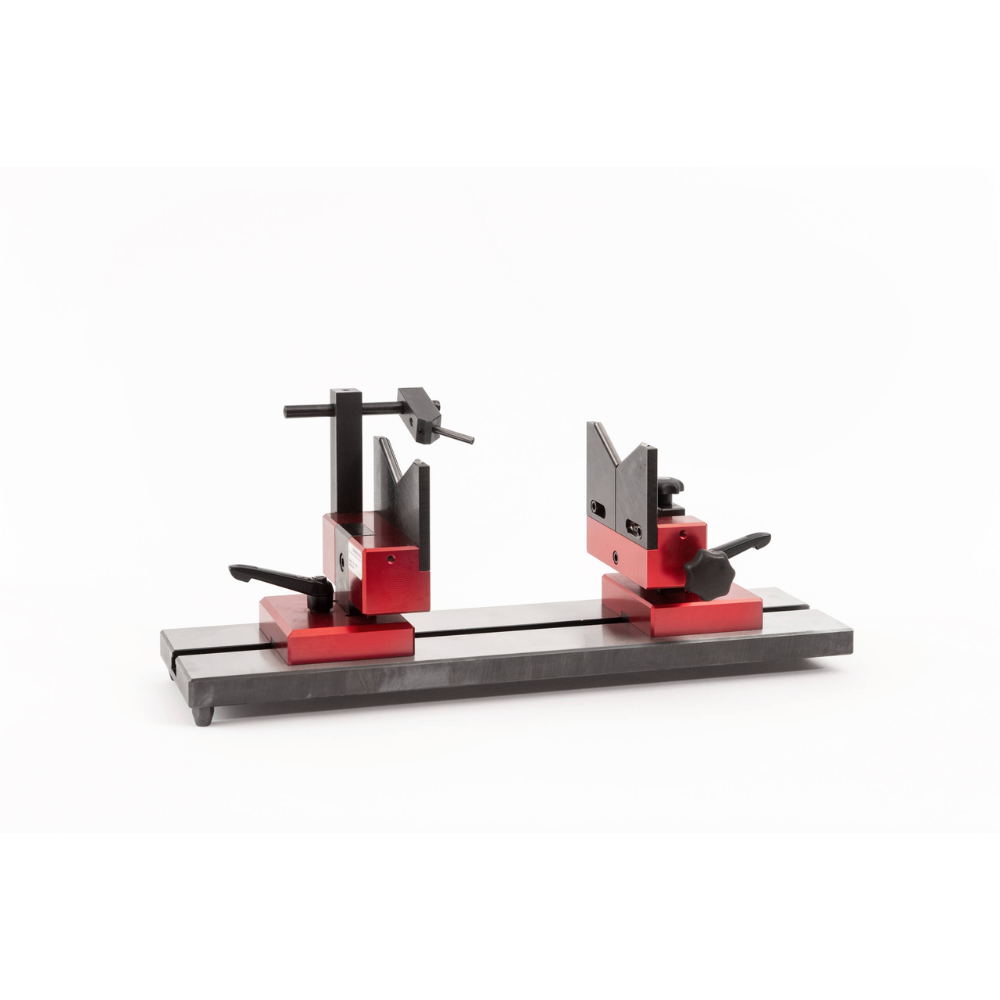

Runout tester with Prisma
The Fisso Runout Tester with Prisma is designed for precise measurement of runout and alignment in cylindrical components. Its V-shaped supports ensure stability and accuracy, making it ideal for industrial quality control applications.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Carbide support in the prism | - | - |
| Diameter compensation max mm | - | 60 mm |
| Workpiece Ø max mm | - | 240 mm |
| Workpiece weight max mm | - | 25 mm |
| Grove stone width | - | 14 mm |
Variant Applications
| Machines / Applications |
|---|
| Checking concentricity and runout in disk-shaped components like gears, rotors, and pulleys |
| Balancing and inspection of rotating parts |
| Ensuring uniformity and precision in disk machining processes |
| Maintenance and repair tasks in industrial settings |
| Industries |
|---|
| Automotive for gear and rotor inspection |
| Power generation for turbine disk quality checks |
| Metalworking and machining industries |
| Precision engineering and industrial equipment manufacturing |
