Straight Tooth Pinion
High precision Straight Tooth Pinions with milled or ground teeth, right or left-hand are manufactures using different raw materials: C45 and 20MnCr5 for standard, all the alloy, like 18NiCrMo5 and 39NiCrMo3, or not alloy materials, different types of nylon, cast irons, alloys of common bronze and bronze aluminium, stainless steel and different typologies of Bakelite.
Variant Image

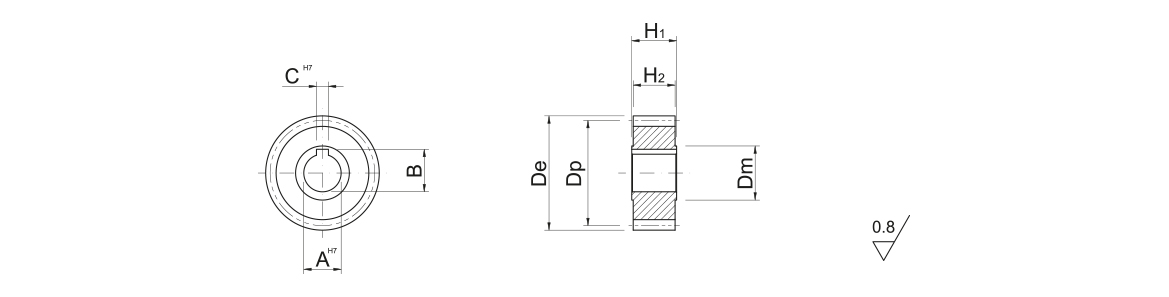

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Module | 1.5 | 10 |
| OD | 27 mm | 220 mm |
| ID | 20 mm | 125 mm |
| PCD | 24 mm | 120 mm |
| Width | 30 mm | 165 mm |
| No of Teeth | 16 | 40 |
| Tooth Quality | 5 | 10 |
Variant Applications
| Machines / Applications |
|---|
| Gearbox |
| Automative Machines |
| Pumps |
| Material Handelling Equipments |
| Clock |
| Industries |
|---|
| Automobile Industry |
| Material handelling |
| Power Plants |
Straight Tooth Pinion
High precision Straight Tooth Pinions with milled or ground teeth, right or left-hand are manufactures using different raw materials: C45 and 20MnCr5 for standard, all the alloy, like 18NiCrMo5 and 39NiCrMo3, or not alloy materials, different types of nylon, cast irons, alloys of common bronze and bronze aluminium, stainless steel and different typologies of Bakelite.
Variant Image

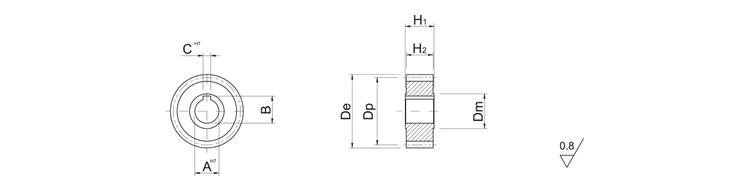

Variant Diagram
