GGB-HPF

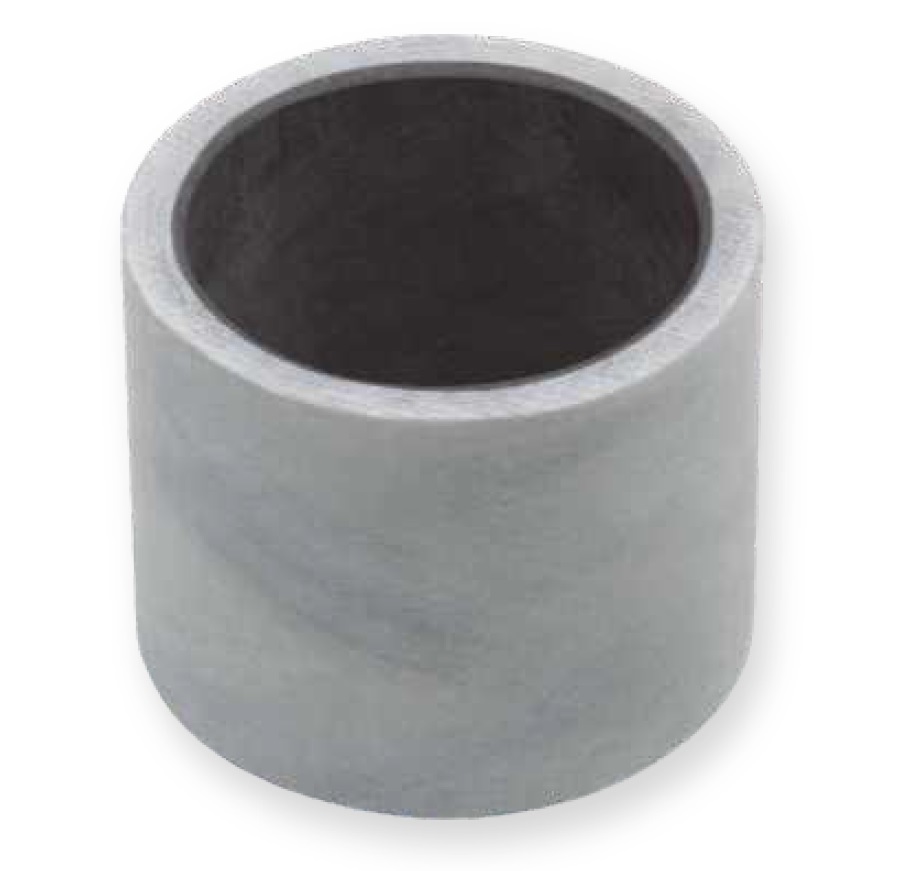

"GGB-HPF are Fiber Reinforced Composite Bearings with PTFE Tape Liner available as Plain cylindrical bushes and Sliding plates as standard and cylindrical bushes with non-standard dimensions and customized bearing designs for made to order purpose.These are designed for hydropower applications.
"
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 140 N/mm2 |
| Dynamic Load | - | 140 N/mm2 |
| Operating Temperature | -195 °C | 140 °C |
| Sliding Speed Dry | - | 2.5 m/s |
Variant Applications
| Machines / Applications |
|---|
| Operating Ring Sliding Segments |
| Wicket Gate Bearings |
| Injector Bearings |
| Spillway Gate Bearings |
| Industries |
|---|
| General Industry |
