GGB-Megalife XT
GGB-Megalife XT is a Fiber Reinforced Composite PTFE Thrust Washer is available as plain thrust washer and also with non-standard dimensions. It has excellent misalignment and contamination resistance, Good surface speed capability, High load capacity and Good chemical resistance.

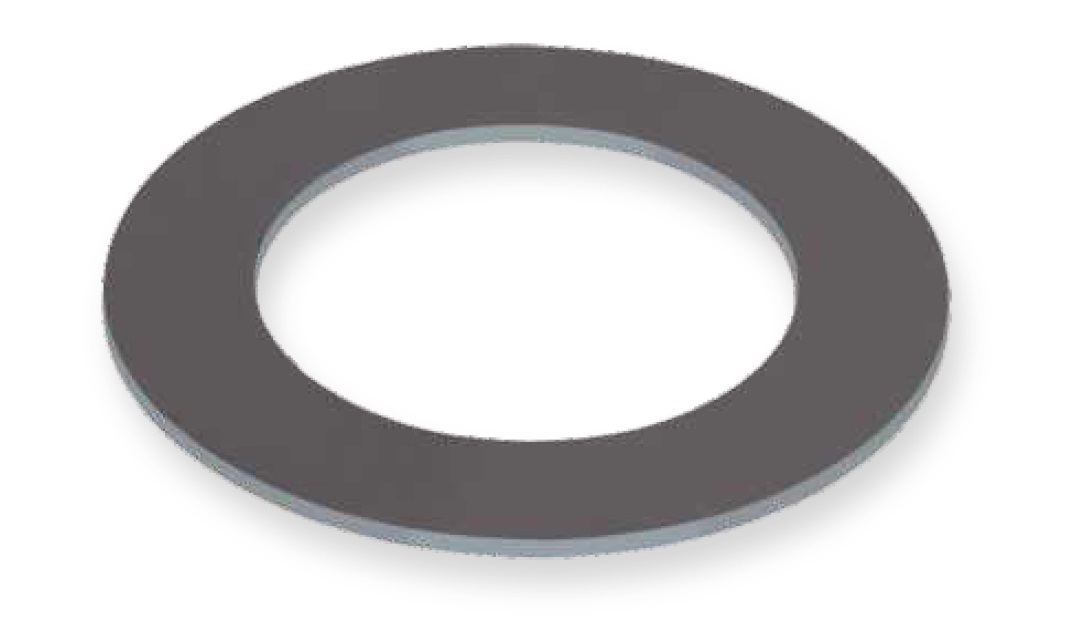

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 140 N/mm2 |
| Dynamic Load | - | 140 N/mm2 |
| Operating Temperature | -195 °C | 175 °C |
| Sliding Speed Dry | - | 0.5 m/s |
Variant Applications
| Machines / Applications |
|---|
| Pulley Spacers, Gear Spacers |
| Aerial Lifts |
| Fork Lift Masts |
| Valve Actuator Linkages |
| Steering Links |
| Industries |
|---|
| Automobile Manufacturer |
| Material Handling Equipment Manufacturer |
GGB-Megalife XT
GGB-Megalife XT is a Fiber Reinforced Composite PTFE Thrust Washer is available as plain thrust washer and also with non-standard dimensions. It has excellent misalignment and contamination resistance, Good surface speed capability, High load capacity and Good chemical resistance.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 140 N/mm2 |
| Dynamic Load | - | 140 N/mm2 |
| Operating Temperature | -195 °C | 175 °C |
| Sliding Speed Dry | - | 0.5 m/s |
Variant Applications
| Machines / Applications |
|---|
| Pulley Spacers, Gear Spacers |
| Aerial Lifts |
| Fork Lift Masts |
| Valve Actuator Linkages |
| Steering Links |
| Industries |
|---|
| Automobile Manufacturer |
| Material Handling Equipment Manufacturer |
