GGB-Multifil
GGB-Multifil is Proprietary Filled PTFE Sliding Bearing Tape avaialble with 0.015" to 0.125" (0.38 to 3.2 mm) thickness and 12" (305 mm) width or 24" (610 mm) width.

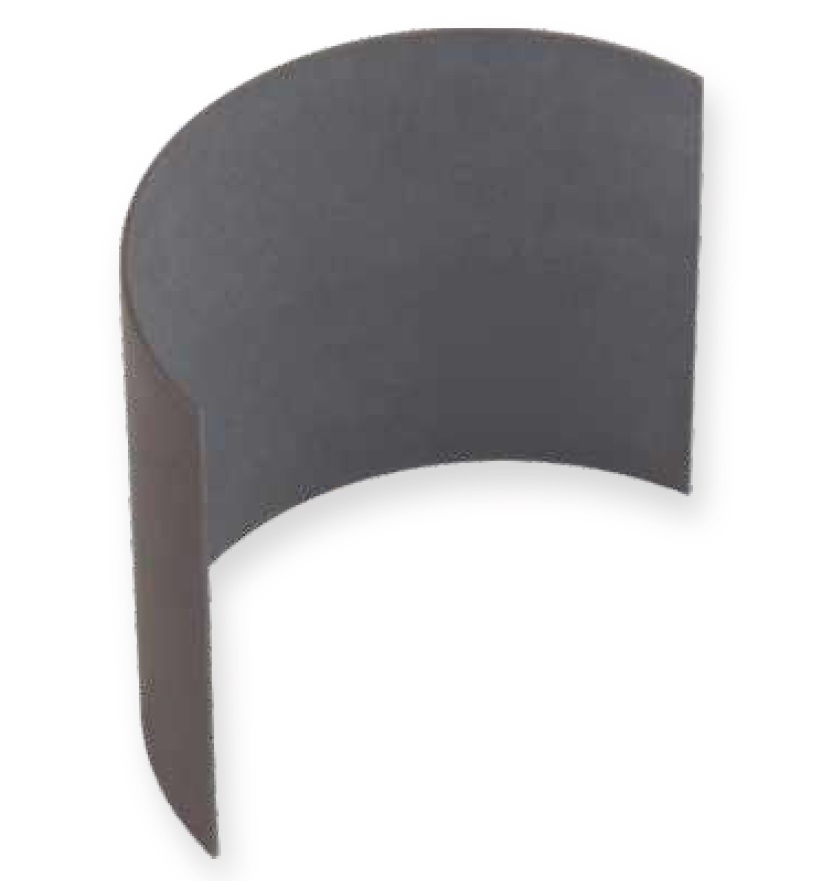

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 70 N/mm2 |
| Dynamic Load | - | 35 N/mm2 |
| Operating Temperature | -200 °C | 280 °C |
| Sliding Speed Dry | - | 2.5 m/s |
| Sliding Speed Lubricated | - | 1.2 m/s |
Variant Applications
| Machines / Applications |
|---|
| Machine Tool Ways, Gibs and Other Sliding Applications |
| Industries |
|---|
| General Industry |
