GGB-BP25
GGB-BP25 are Metafram oil impregnated sintered bronze bearings available as Plain cylindrical bushes, plain flanged bushes in standard form and Cylindrical bushes and flanged bushes with non-standard dimensions, spherical bearings, tubes and rod blanks, customized bearing designs for made to order purpose.

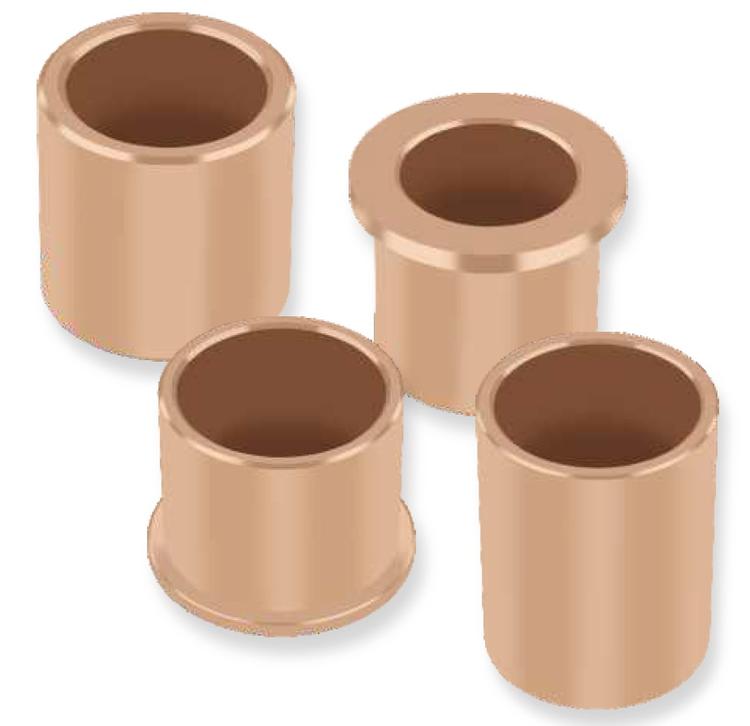

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Static Load | - | 20 N/mm2 |
| Dynamic Load | - | 10 N/mm2 |
| Operating Temperature | -180 °C | 3000 °C |
| Sliding Speed Dry | 0.1 m/s | 6 m/s |
Variant Applications
| Machines / Applications |
|---|
| Domestic Appliances and Hand Tools |
| FHP Motor Bearings |
| Industries |
|---|
| General Industry |
